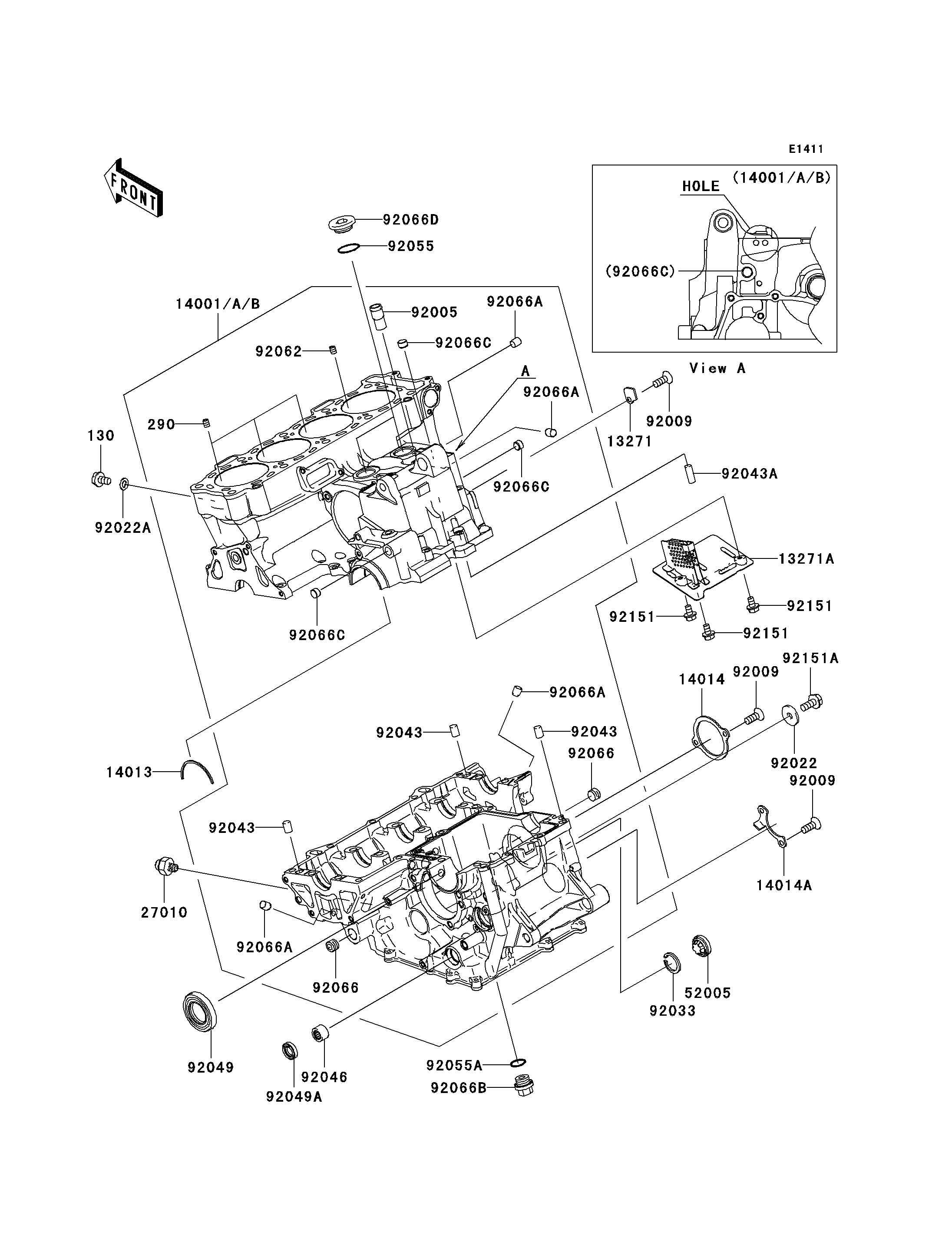

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
290
13271
13271A
14001
14001A
14001B
14013
14014
14014A
27010
52005
92005
92009
92009
92009
92022
92022A
92033
92043
92043
92043
92043A
92046
92049
92049A
92055
92055A
92062
92066
92066
92066A
92066A
92066A
92066A
92066B
92066C
92066C
92066C
92066D
92151
92151
92151
92151A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,M6X10 | 130 | 130Y0610 | 1 | ||
SCREW-SET-SOCKET | 290 | 290Q0506 | 3 | ||
PLATE | 13271 | 13271-0148 | 1 | ||
PLATE,BREATHER | 13271A | 13271-0361 | 1 | ||
SET-CRANKCASE,2 HOLE | 14001 | 14001-0058 | AR | ||
SET-CRANKCASE,NO HOLE | 14001A | 14001-0059 | AR | ||
SET-CRANKCASE,1 HOLE | 14001B | 14001-0060 | AR | ||
RING-POSITION | 14013 | 14013-1051 | 1 | ||
PLATE-POSITION | 14014 | 14014-0012 | 1 | ||
PLATE-POSITION | 14014A | 14014-0015 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
GAUGE | 52005 | 52005-1120 | 1 | ||
FITTING,BREATHER | 92005 | 92005-1238 | 1 | ||
SCREW,6X16 | 92009 | 92009-1360 | 5 | ||
WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
RING-SNAP | 92033 | 92033-1305 | 1 | ||
PIN | 92043 | 92043-1506 | 3 | ||
PIN,6X16 | 92043A | 92043-1690 | 1 | ||
BEARING-NEEDLE,7E-HK1412 | 92046 | 92046-037 | 1 | ||
SEAL-OIL,TC32578 | 92049 | 92049-1474 | 1 | ||
SEAL-OIL,TC14245 | 92049A | 92049-1520 | 1 | ||
RING-O | 92055 | 92055-091 | 2 | ||
RING-O | 92055A | 92055-1146 | 1 | ||
NOZZLE | 92062 | 92062-0004 | 1 | ||
PLUG,PT3/8X10 | 92066 | 92066-0003 | 2 | ||
PLUG,OIL LINE,7.2X8 | 92066A | 92066-1012 | 4 | ||
PLUG,MAIN GALLERY,18X9,BLACK | 92066B | 92066-1096 | 1 | ||
PLUG | 92066C | 92066-1110 | 3 | ||
PLUG,25X8 | 92066D | 92066-1161 | 2 | ||
BOLT,6X10 | 92151 | 92151-1389 | 3 | ||
BOLT,6X14 | 92151A | 92151-1476 | 1 |
BOLT-FLANGED,M6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-SET-SOCKET | |
REF # | 290 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,BREATHER | |
REF # | 13271A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE,2 HOLE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SET-CRANKCASE,NO HOLE | |
REF # | 14001A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SET-CRANKCASE,1 HOLE | |
REF # | 14001B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-POSITION | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,OIL PRESSURE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GAUGE | |
REF # | 52005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
WASHER,6X19.5X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PIN,6X16 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,7E-HK1412 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC32578 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC14245 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,PT3/8X10 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG,OIL LINE,7.2X8 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,MAIN GALLERY,18X9,BLACK | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLUG,25X8 | |
REF # | 92066D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
