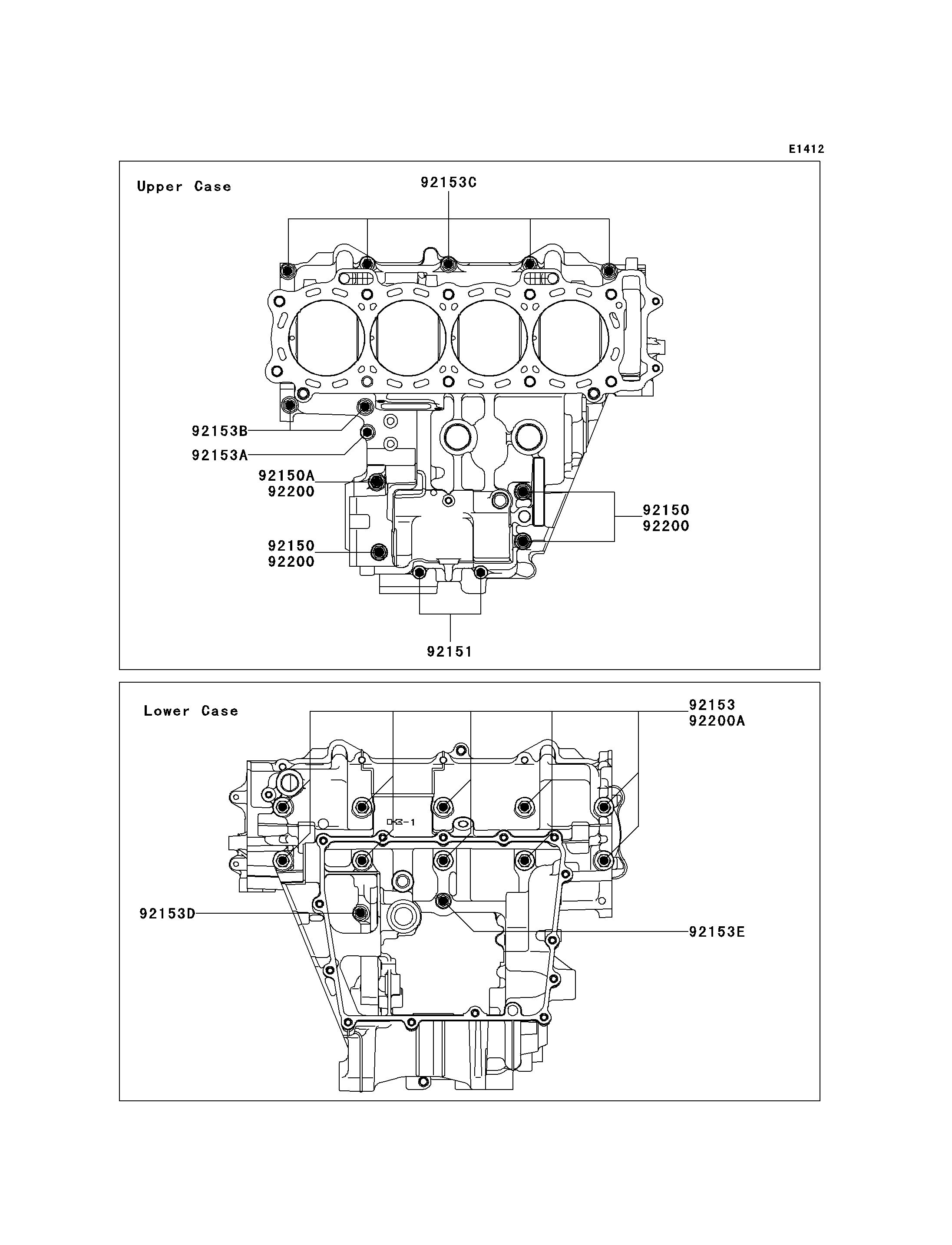

2005 Ninja® ZX-10R - Crankcase Bolt Pattern

92150
92150
92150A
92151
92153
92153A
92153B
92153C
92153D
92153E
92200
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,8X90 92150 92150-1163 3
BOLT,FLANGED,8X45 92150A 92150-1487 1
BOLT,6X40 92151 92151-1583 2
BOLT,9X100 92153 92153-0447 10
BOLT,6X22 92153A 92153-0619 1
BOLT,7X32 92153B 92153-0742 2
BOLT,7X45 92153C 92153-0743 5
BOLT,7X50 92153D 92153-0744 1
BOLT,7X85 92153E 92153-0745 1
WASHER,8.2X16X1.6 92200 92200-0047 4
WASHER,9.2X19X23 92200A 92200-0115 10
