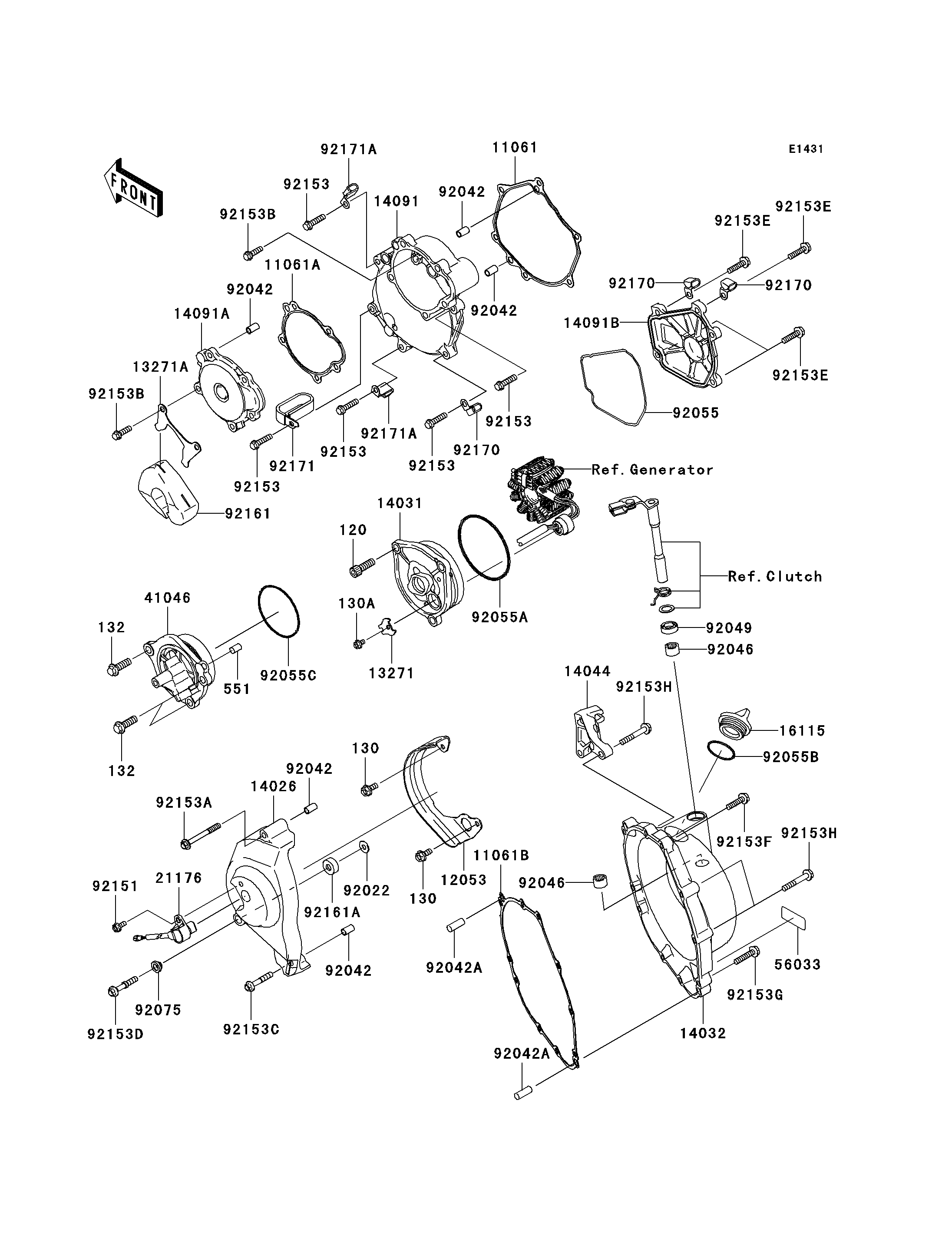

Parts Diagrams |
11061
11061
11061A
11061A
11061B
11061B
12053
12053
13271
13271
13271A
13271A
14026
14026
14031
14031
14032
14032
14044
14044
14091
14091
14091A
14091A
14091B
14091B
16115
16115
21176
21176
41046
41046
56033
56033
92022
92022
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042A
92042A
92042A
92042A
92046
92046
92046
92046
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92075
92075
92151
92151
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153D
92153D
92153E
92153E
92153E
92153E
92153E
92153E
92153F
92153F
92153G
92153G
92153H
92153H
92153H
92153H
92161
92161
92161A
92161A
92170
92170
92170
92170
92170
92170
120
120
130
130
130
130
130A
130A
132
132
132
132
551
551
92171
92171
92171A
92171A
92171A
92171A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,STARTER COVER,LARGE | 11061 | 11061-0047 | 1 | ||
GASKET,STARTER COVER,SMALL | 11061A | 11061-0048 | 1 | ||
GASKET,CLUTCH COVER | 11061B | 11061-0049 | 1 | ||
GUIDE-CHAIN | 12053 | 12053-0044 | 1 | ||
PLATE | 13271 | 13271-0149 | 1 | ||
PLATE,STARTER COVER | 13271A | 13271-0265 | 1 | ||
COVER-CHAIN | 14026 | 14026-0017 | 1 | ||
COVER-GENERATOR | 14031 | 14031-0012 | 1 | ||
COVER-CLUTCH | 14032 | 14032-0039 | 1 | ||
HOLDER-CABLE,CLUTCH | 14044 | 14044-0011 | 1 | ||
COVER,STARTER,LARGE | 14091 | 14091-0108 | 1 | ||
COVER,STARTER,SMALL | 14091A | 14091-0109 | 1 | ||
COVER,PULSING | 14091B | 14091-0303 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
SENSOR,SPEED | 21176 | 21176-0032 | 1 | ||
HOUSING-BEARING | 41046 | 41046-0009 | 1 | ||
LABEL-MANUAL,OIL CAPACITY | 56033 | 56033-0061 | 1 | ||
WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 5 | ||
PIN,DOWEL,8X22 | 92042A | 92042-044 | 2 | ||
BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
SEAL-OIL,CLUTCH RELEASE | 92049 | 92049-1475 | 1 | ||
RING-O | 92055 | 92055-0020 | 1 | ||
RING-O,80.8X3.5 | 92055A | 92055-0038 | 1 | ||
RING-O,31.7X2.4 | 92055B | 92055-049 | 1 | ||
RING-O,65.2X2.4 | 92055C | 92055-1408 | 1 | ||
DAMPER | 92075 | 92075-1855 | 1 | ||
BOLT,5X12 | 92151 | 92151-1305 | 1 | ||
BOLT,6X25 | 92153 | 92153-0604 | 5 | ||
BOLT,6X55 | 92153A | 92153-0609 | 1 | ||
BOLT,6X20 | 92153B | 92153-0631 | 6 | ||
BOLT,6X35 | 92153C | 92153-0690 | 1 | ||
BOLT,6X38 | 92153D | 92153-0691 | 1 | ||
BOLT,6X22 | 92153E | 92153-0732 | 5 | ||
BOLT,6X25 | 92153F | 92153-0764 | 5 | ||
BOLT,6X30 | 92153G | 92153-0765 | 1 | ||
BOLT,6X40 | 92153H | 92153-0766 | 4 | ||
DAMPER,STARTER COVER | 92161 | 92161-0140 | 1 | ||
DAMPER | 92161A | 92161-0177 | 1 | ||
CLAMP | 92170 | 92170-1577 | 3 | ||
BOLT-SOCKET,BLACK | 120 | 120S0825 | 3 | ||
BOLT-FLANGED | 130 | 130L0614 | 2 | ||
BOLT-FLANGED,M5X8 | 130A | 130Y0508 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132Y0825 | 3 | ||
PIN-DOWEL,8X12 | 551 | 551A0812 | 1 | ||
CLAMP | 92171 | 92171-0254 | 1 | ||
CLAMP,HARNESS | 92171A | 92171-0255 | 2 |
GASKET,STARTER COVER,LARGE | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,STARTER COVER,SMALL | |
REF # | 11061A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,CLUTCH COVER | |
REF # | 11061B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,STARTER COVER | |
REF # | 13271A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-CHAIN | |
REF # | 14026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-GENERATOR | |
REF # | 14031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-CLUTCH | |
REF # | 14032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CABLE,CLUTCH | |
REF # | 14044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,STARTER,LARGE | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,STARTER,SMALL | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,PULSING | |
REF # | 14091B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-OIL FILLER | |
REF # | 16115 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SENSOR,SPEED | |
REF # | 21176 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-BEARING | |
REF # | 41046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL-MANUAL,OIL CAPACITY | |
REF # | 56033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X15.0X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,6.3X8X14 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PIN,DOWEL,8X22 | |
REF # | 92042A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,HK1210 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,CLUTCH RELEASE | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,80.8X3.5 | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,31.7X2.4 | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,65.2X2.4 | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X12 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,6X55 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X20 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,6X35 | |
REF # | 92153C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X38 | |
REF # | 92153D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X22 | |
REF # | 92153E |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92153F |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,6X30 | |
REF # | 92153G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X40 | |
REF # | 92153H |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER,STARTER COVER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92161A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,BLACK | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,M5X8 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PIN-DOWEL,8X12 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
