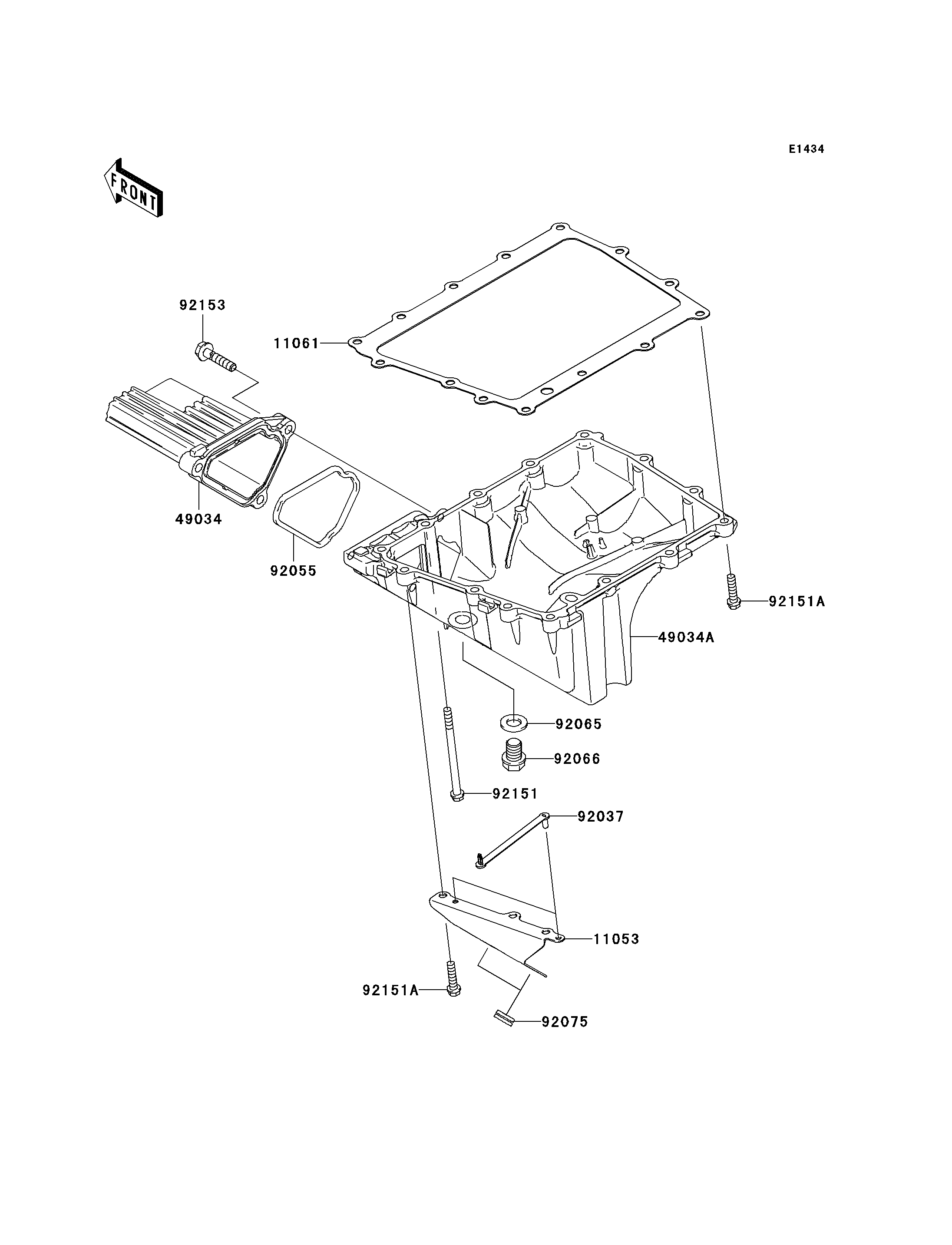

11053
11061
49034
49034A
92037
92055
92065
92066
92075
92151
92151A
92151A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11053 11053-0914 1
GASKET,PAN-OIL 11061 11061-0065 1
PAN-OIL,SUB 49034 49034-0008 1
PAN-OIL,MAIN 49034A 49034-0009 1
CLAMP,SPEED,L=43 92037 92037-1290 2
RING-O 92055 92055-0040 1
GASKET,12X22X2 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
DAMPER 92075 92075-1947 2
BOLT,6X85 92151 92151-1427 1
BOLT,FLANGED,M6X25 92151A 92151-1930 13
BOLT,7X32 92153 92153-0448 3
