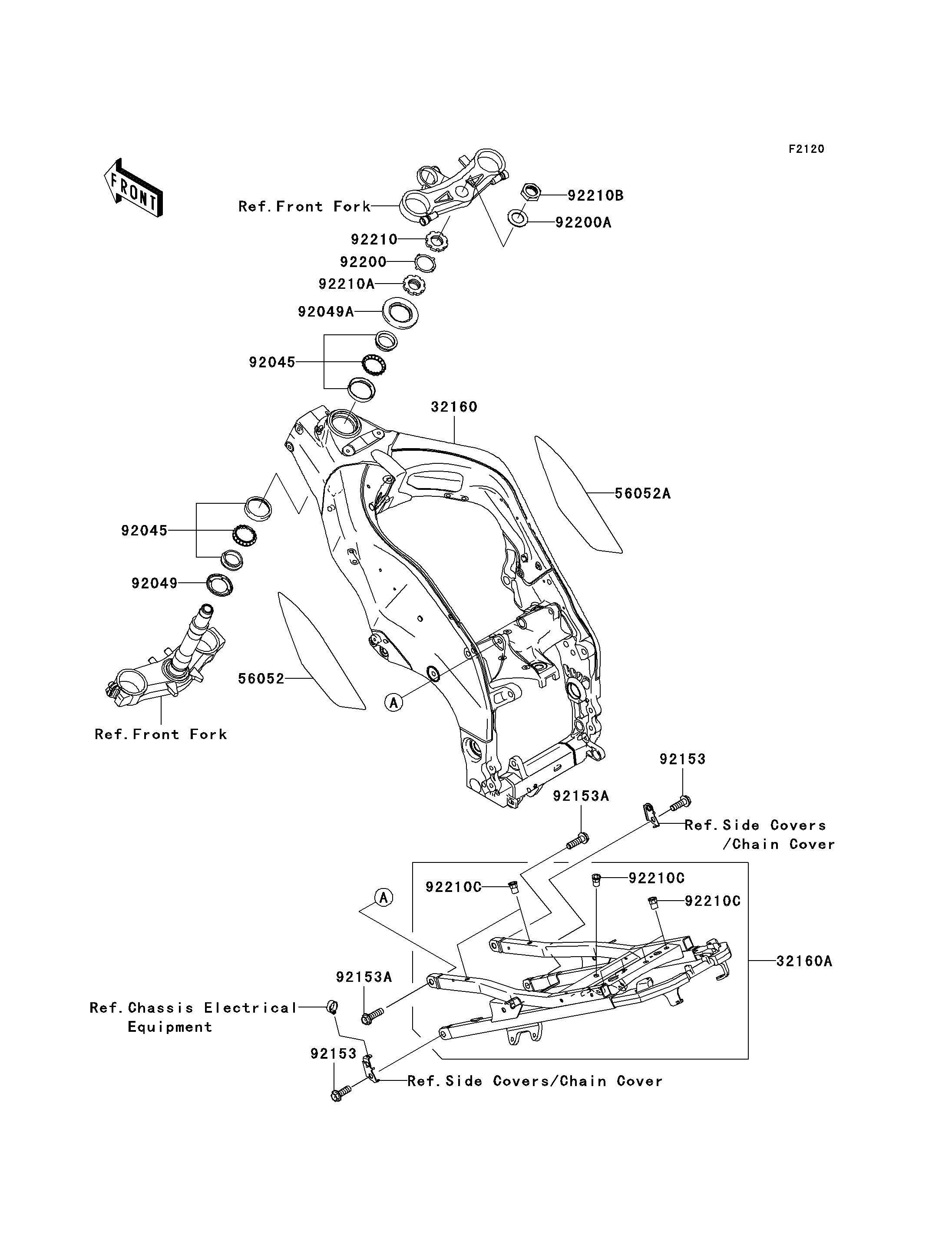

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
32160
32160A
56052
56052A
92045
92045
92049
92049A
92153
92153
92153A
92153A
92200
92200A
92210
92210A
92210B
92210C
92210C
92210C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,FR,F.S.BLACK | 32160 | 32160-0021-8F | 1 | ||
| FRAME-COMP,RR,F.S.BLACK | 32160A | 32160-0024-8F | 1 | ||
| MARK,FRAME OUTER PLATE,LH | 56052 | 56052-0378 | 1 | ||
| MARK,FRAME OUTER PLATE,RH | 56052A | 56052-0379 | 1 | ||
| BEARING-BALL,SF07A17PX1V1 | 92045 | 92045-1384 | 2 | ||
| SEAL-OIL,DS35X55X4 | 92049 | 92049-0022 | 1 | ||
| SEAL-OIL,XMH 43 75 6.4J | 92049A | 92049-1382 | 1 | ||
| BOLT,FLANGED,10X30 | 92153 | 92153-0801 | 2 | ||
| BOLT,FLANGED,10X35 | 92153A | 92153-0802 | 2 | ||
| WASHER | 92200 | 92200-0036 | 1 | ||
| WASHER,28.5X42X1.6 | 92200A | 92200-0110 | 1 | ||
| NUT,35MM | 92210 | 92210-0095 | 1 | ||
| NUT,35MM | 92210A | 92210-0096 | 1 | ||
| NUT,28MM | 92210B | 92210-0097 | 1 | ||
| NUT,6MM | 92210C | 92210-0099 | 7 |
| FRAME-COMP,FR,F.S.BLACK | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,RR,F.S.BLACK | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FRAME OUTER PLATE,LH | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FRAME OUTER PLATE,RH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,SF07A17PX1V1 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,DS35X55X4 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMH 43 75 6.4J | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X30 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X35 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,28.5X42X1.6 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,35MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,35MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,28MM | |
| REF # | 92210B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210C |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
