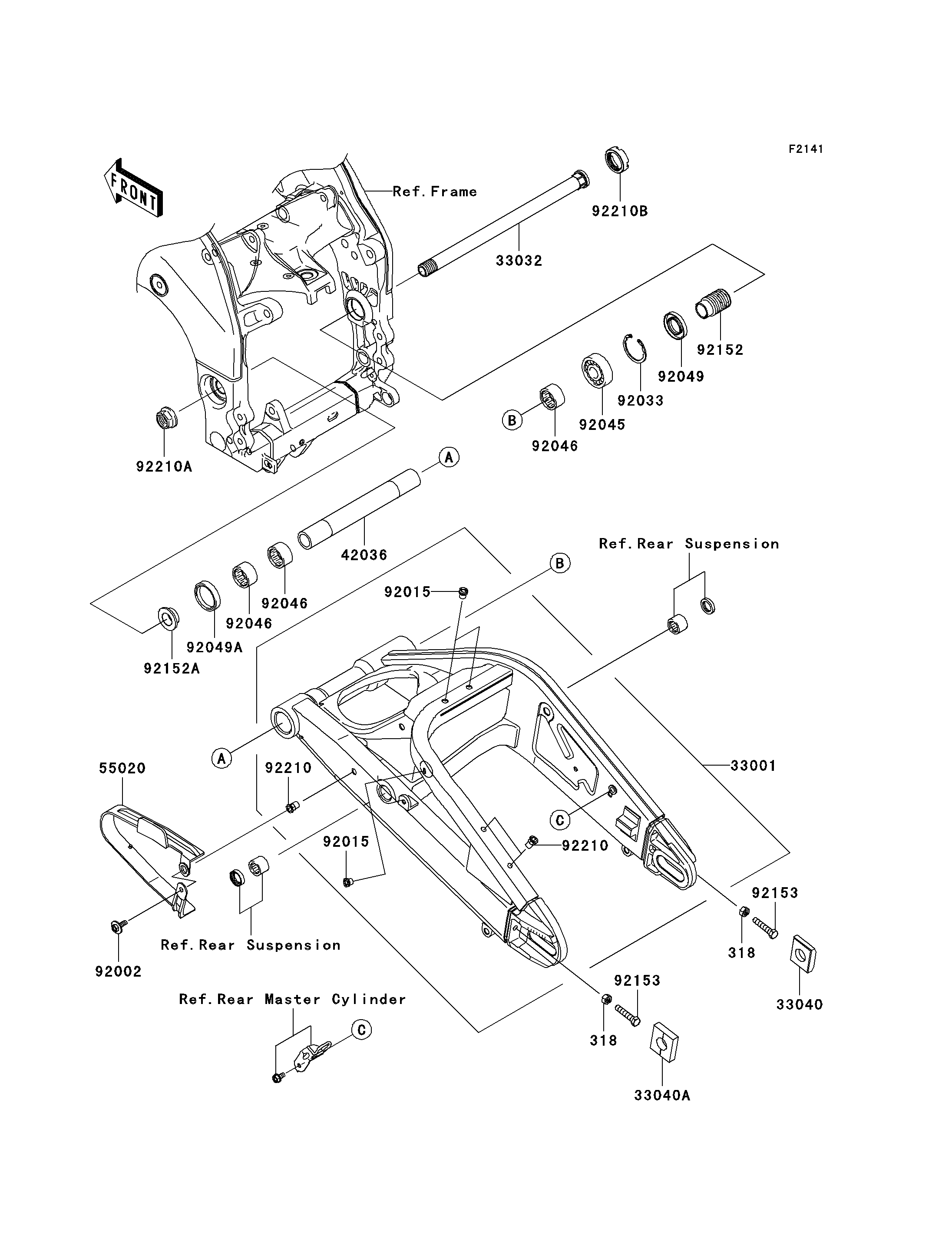

2005 Ninja® ZX™-10R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
318
318
33001
33032
33040
33040A
42036
55020
92002
92015
92015
92033
92045
92046
92046
92046
92049
92049A
92152
92152A
92153
92153
92210
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL 318 318L0800 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0039-8F 1
SHAFT-SWING ARM 33032 33032-0009 1
ADJUSTER-CHAIN,RH 33040 33040-0008 1
ADJUSTER-CHAIN 33040A 33040-1109 1
SLEEVE,SWING ARM PIVOT,L=226 42036 42036-1341 1
GUARD,CHAIN 55020 55020-0101 1
BOLT,6X16 92002 92002-1187 1
NUT,POP,6MM,L=15 92015 92015-1791 3
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,MHSA25 42 6 92049 92049-1314 1
SEAL-OIL,MHSA25X34X7 92049A 92049-1352 1
COLLAR,SWING ARM,L=47 92152 92152-0154 1
COLLAR,SWING ARM,L=12.5 92152A 92152-1234 1
BOLT,8X40 92153 92153-0736 2
NUT,6MM 92210 92210-0099 3
NUT,FLANGED,20MM 92210A 92210-0106 1
NUT,30MM 92210B 92210-0134 1
