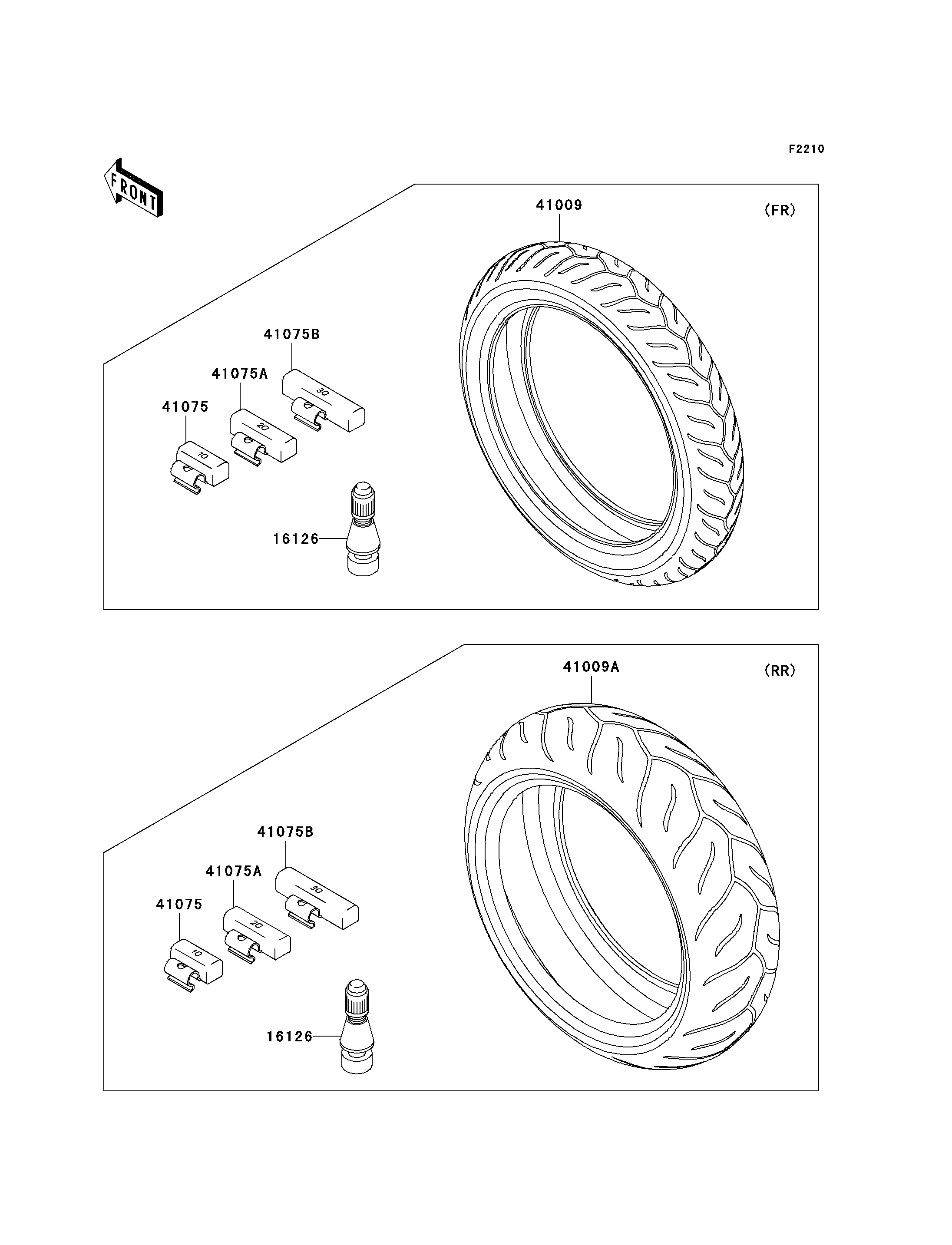

16126
16126
41009
41009A
41075
41075
41075A
41075A
41075B
41075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,TIRE 16126 16126-1140 2
TIRE,FR,120/70ZR17(58W),D218FJ 41009 41009-0074 1
TIRE,RR,190/50ZR17(73W),D218J 41009A 41009-0075 1
BALANCER-WHEEL,10G,SILVER 41075 41075-0007 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-0008 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-0009 AR
