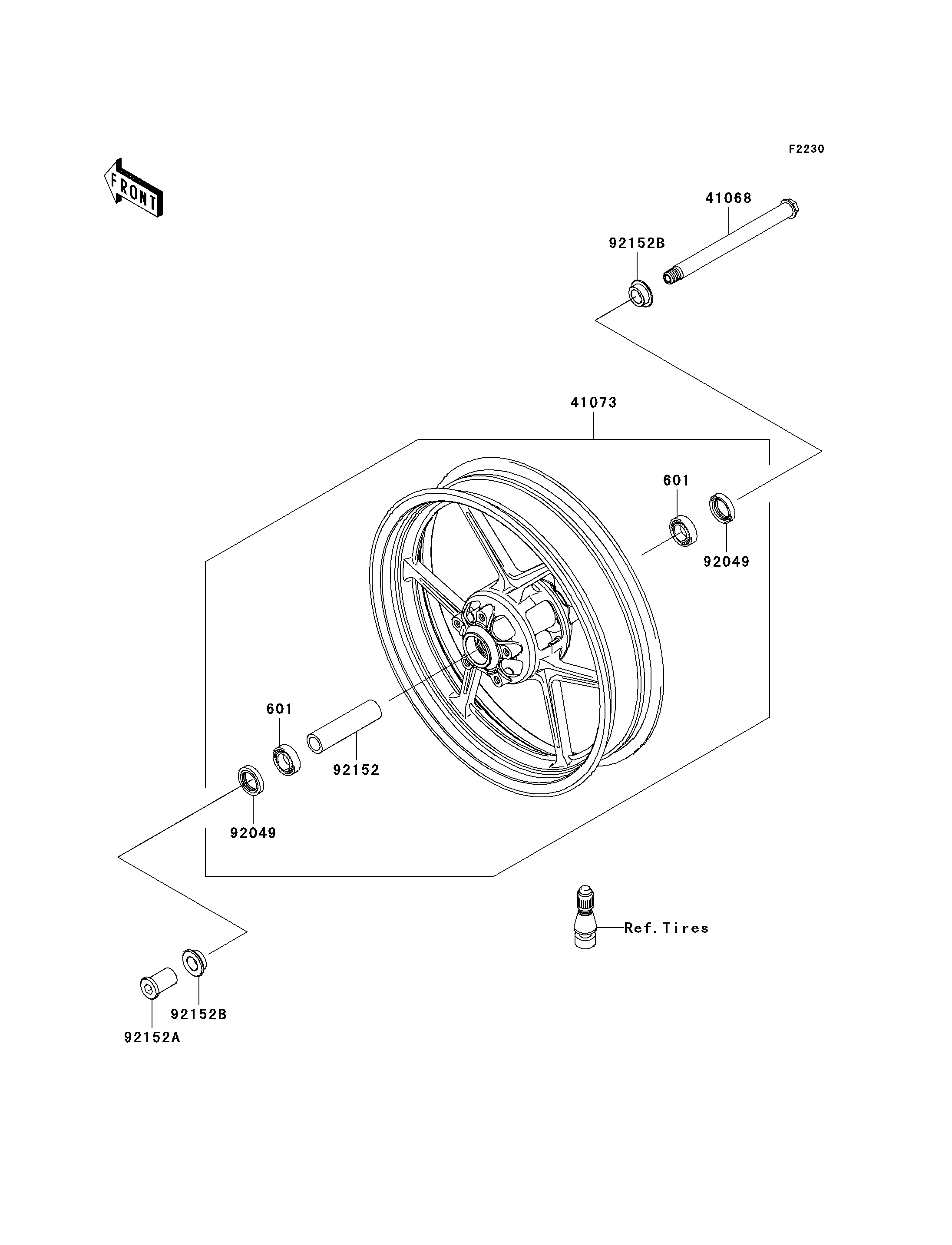

601
601
41068
41073
92049
92049
92152
92152A
92152B
92152B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6004UUC3 601 601B6004UU 2
AXLE,FR 41068 41068-0011 1
WHEEL-ASSY,FR,BLACK 41073 41073-0048-R2 1
SEAL-OIL,BJN30427-C3 92049 92049-1057 2
COLLAR,FR HUB,L=115 92152 92152-0087 1
COLLAR,FR AXLE,LH,L=43.5 92152A 92152-0090 1
COLLAR,FR AXLE,L=13 92152B 92152-0210 2
