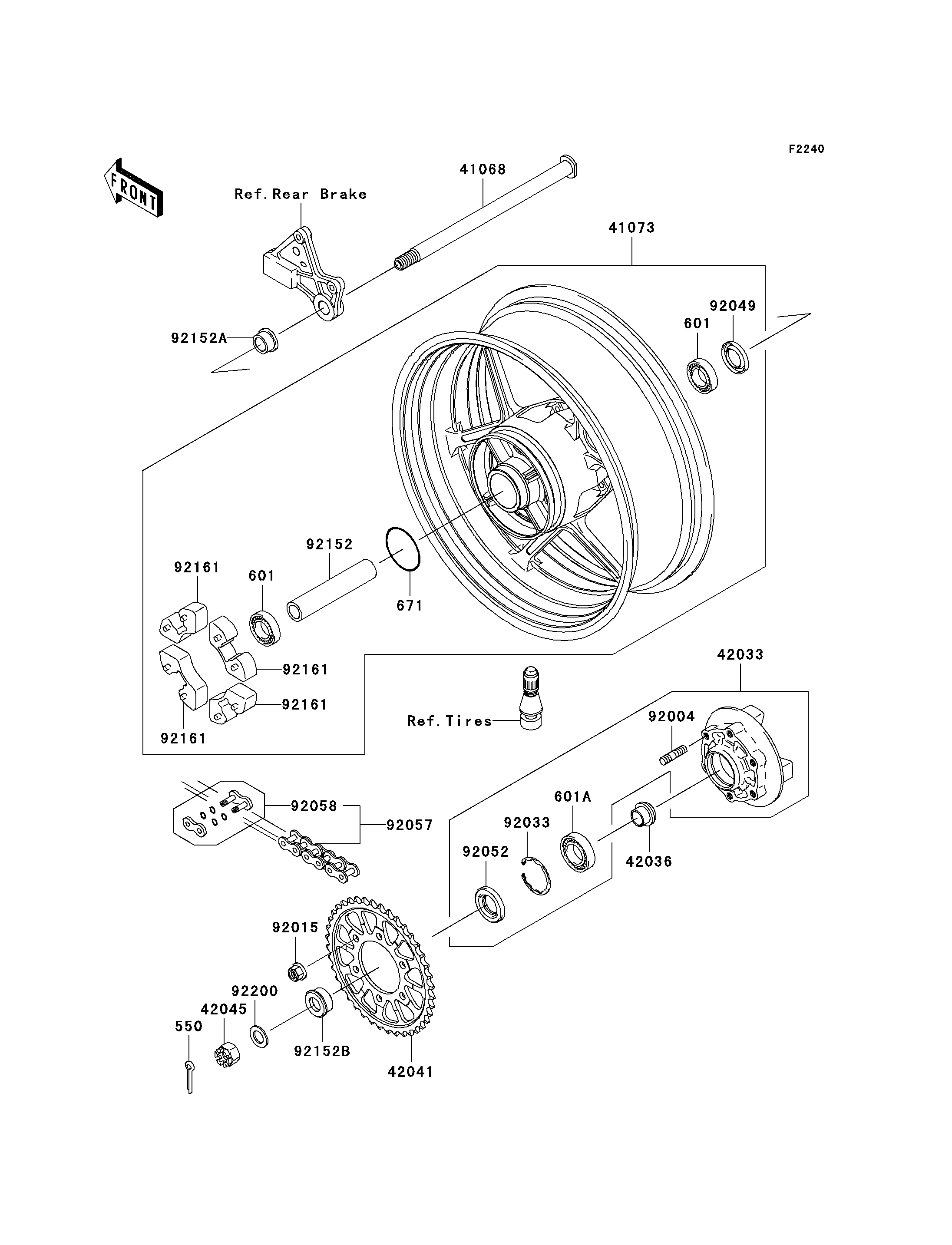

2005 Ninja® ZX™-10R - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
601A
671
41068
41073
42033
42036
42041
42045
92004
92015
92033
92049
92052
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,6204UUC3 601 601B6204UU 2
BEARING-BALL 601A 601B6205UU 1
O RING,60MM 671 671B2560 1
AXLE,RR 41068 41068-0012 1
WHEEL-ASSY,RR,BLACK 41073 41073-0013-R2 1
COUPLING-ASSY,RR HUB 42033 42033-0003 1
SLEEVE,RR HUB,L=23 42036 42036-1251 1
SPROCKET-HUB,39T 42041 42041-0005 1
NUT,CASTLE,18MM 42045 42045-018 1
STUD,10X19 92004 92004-1275 6
NUT,FLANGED,10MM 92015 92015-1335 6
RING-SNAP,52MM 92033 92033-1043 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL,TWC35527 92052 92052-006 1
CHAIN,DRIVE,RK525MFOX110L 92057 92057-0087 1
JOINT-CHAIN,DRIVE 92058 92058-0005 1
COLLAR,RR HUB,L=144.5 92152 92152-0088 1
COLLAR,RR AXLE,RH,L=17 92152A 92152-0105 1
COLLAR,RR AXLE,LH,L=18 92152B 92152-0206 1
DAMPER,SHOCK,RR HUB 92161 92161-0058 4
WASHER,19X32X2.6 92200 92200-1489 1
