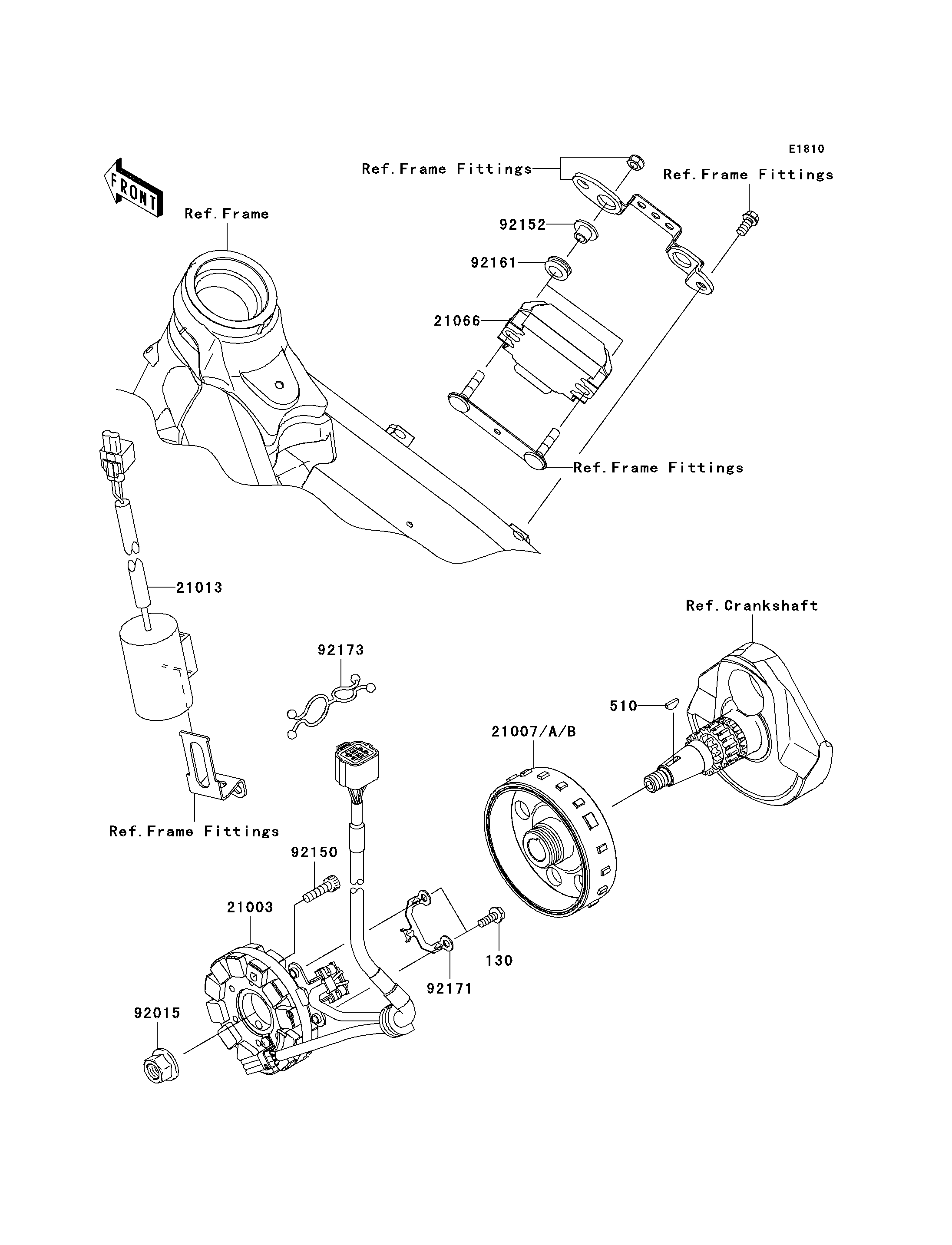

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X14 130 130BA0514 2
KEY-WOODRUFF 510 510A3200 1
STATOR 21003 21003-0082 1
ROTOR,I=9.0 21007 21007-0122 1
ROTOR,I=8.5 21007A 21007-0138 1 (OPTION)
ROTOR,I=9.5 21007B 21007-0139 1 (OPTION)
CONDENSER 21013 21013-0001 1
REGULATOR-VOLTAGE 21066 21066-0042 1
NUT,FLANGED,12MM 92015 92015-1156 1
BOLT,SOCKET,6X22 92150 92150-1654 3
COLLAR 92152 92152-0295 2
DAMPER 92161 92161-0266 2
CLAMP 92171 92171-1843 1
CLAMP 92173 92173-0029 1
