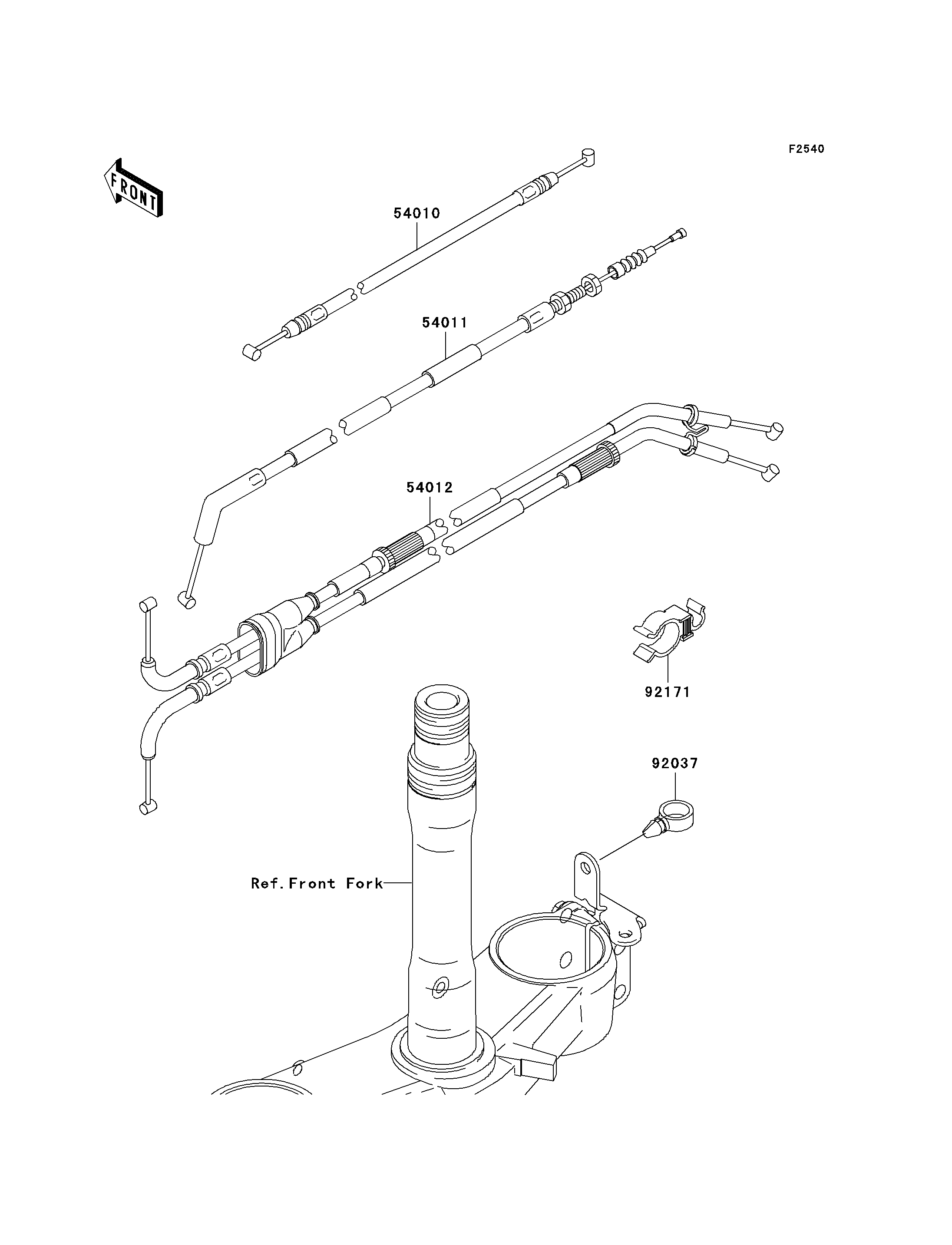

54010
54011
54012
92037
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SEAT LOCK 54010 54010-1101 1
CABLE-CLUTCH 54011 54011-0035 1
CABLE-THROTTLE 54012 54012-0131 1
CLAMP,HOSE 92037 92037-1827 1
CLAMP,CABLE 92171 92171-0347 1
