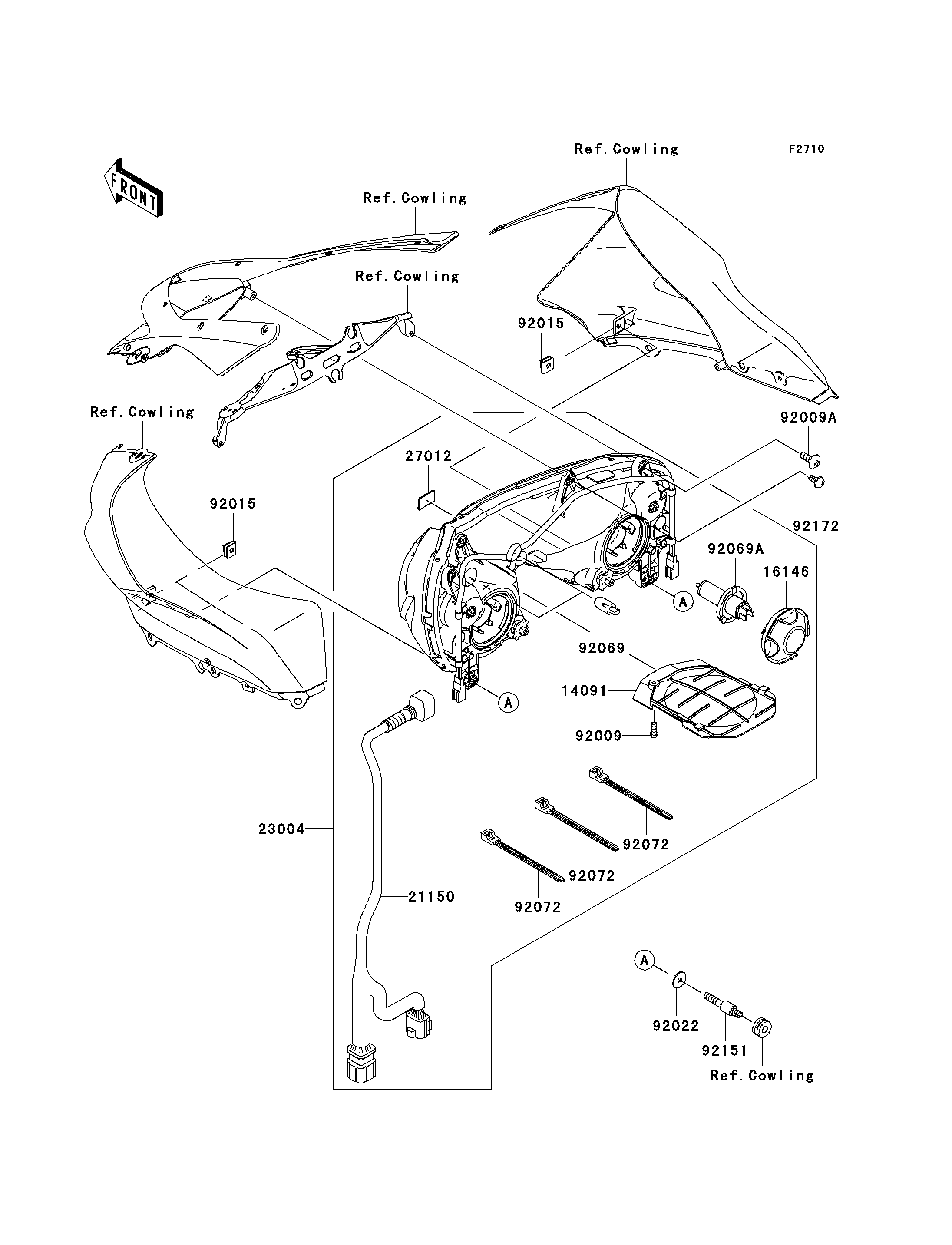

Parts Diagrams |
14091
16146
21150
23004
27012
92009
92009A
92015
92015
92022
92069
92069A
92072
92072
92072
92151
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,CITY LIGHT | 14091 | 14091-0454 | 1 | ||
COVER-ASSY,BULB,WITH O-RING | 16146 | 16146-0030 | 2 | ||
CORD-ASSY,HEAD LAMP | 21150 | 21150-0002 | 1 | ||
LAMP-HEAD | 23004 | 23004-0029 | 1 | ||
MAGIC TAPE | 27012 | 27012-0049 | 1 | ||
SCREW,TAPPING,4X12 | 92009 | 92009-1395 | 1 | ||
SCREW,6X15 | 92009A | 92009-3830 | 2 | ||
NUT,6MM | 92015 | 92015-1094 | 2 | ||
WASHER,7X24X1.6 | 92022 | 92022-1160 | 2 | ||
BULB,12V 5W | 92069 | 92069-1016 | 2 | ||
BULB,12V 55W,H7 | 92069A | 92069-1126 | 2 | ||
BAND | 92072 | 92072-3874 | 3 | ||
BOLT | 92151 | 92151-1765 | 2 | ||
SCREW,TAPPING,5X14 | 92172 | 92172-0006 | 2 |
