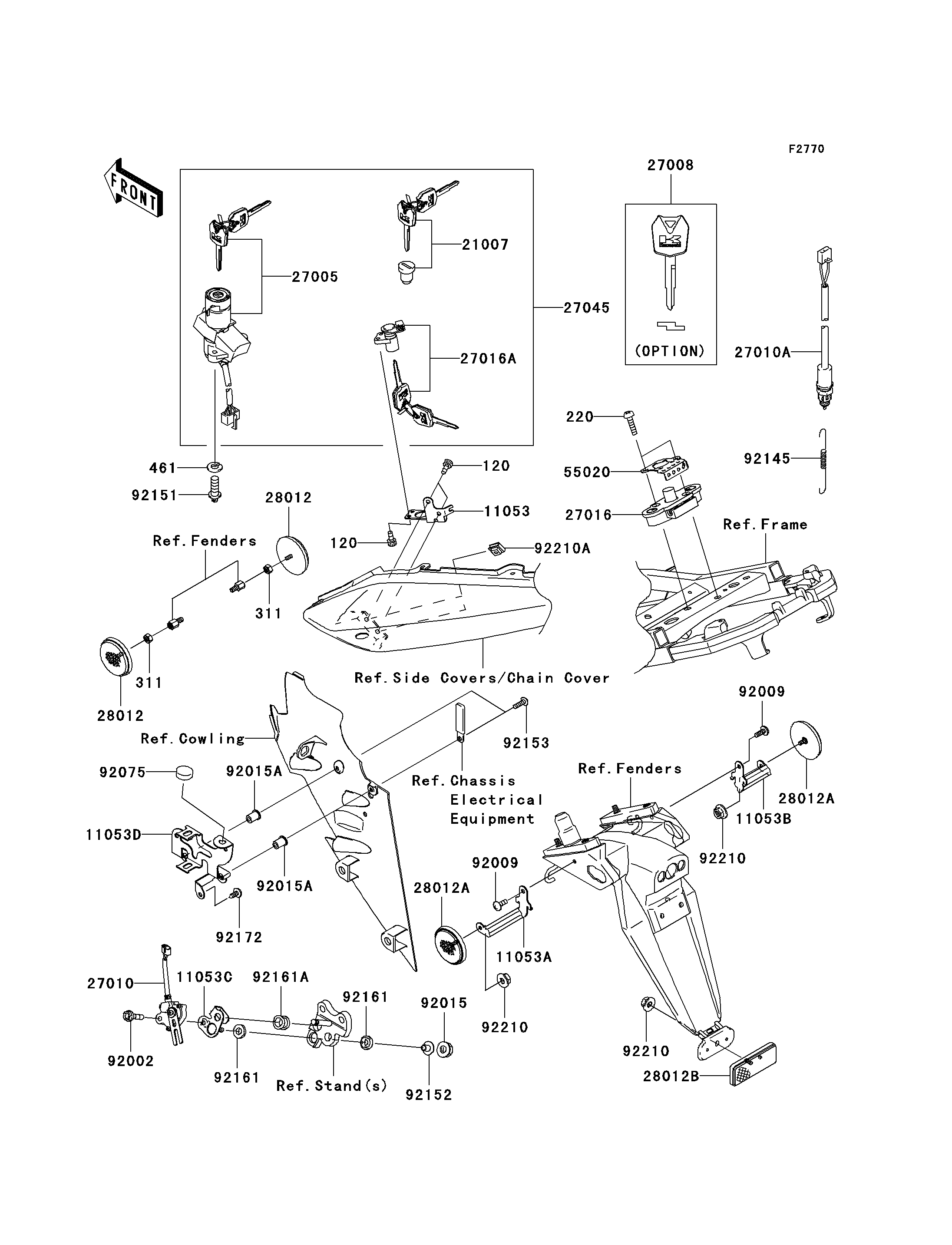

2005 Ninja® ZX™-10R - Ignition Switch/Locks/Reflectors
120
120
220
311
311
461
11053
11053A
11053B
11053C
11053D
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012
28012A
28012A
28012B
55020
92002
92009
92009
92015
92015A
92015A
92075
92145
92151
92152
92153
92161
92161
92161A
92172
92210
92210
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120W0512 | 4 | ||
SCREW-PAN-CROSS | 220 | 220F0630 | 2 | ||
NUT-HEX | 311 | 311C0500 | 2 | ||
WASHER-SPRING | 461 | 461L0600 | 2 | ||
BRACKET,SEAT LOCK | 11053 | 11053-0399 | 1 | ||
BRACKET,REAR REFLECTOR,LH | 11053A | 11053-0405 | 1 | ||
BRACKET,REAR REFLECTOR,RH | 11053B | 11053-0406 | 1 | ||
BRACKET,SIDE STAND SWITCH | 11053C | 11053-0723 | 1 | ||
BRACKET,AMPLIFIER | 11053D | 11053-1252 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5057 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-5130 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-0030 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-1455 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1479 | 1 | ||
LOCK-ASSY,SEAT STRIKER | 27016 | 27016-0003 | 1 | ||
LOCK-ASSY,SEAT | 27016A | 27016-5309 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5236 | 1 | ||
REFLECTOR-REFLEX,FR,SIDE | 28012 | 28012-0001 | 2 | ||
REFLECTOR-REFLEX | 28012A | 28012-0002 | 2 | ||
REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
GUARD,SEAT STRIKER | 55020 | 55020-0082 | 1 | ||
BOLT,FLANGED,6X25 | 92002 | 92002-1582 | 1 | ||
SCREW,5X14 | 92009 | 92009-1653 | 2 | ||
NUT,6MM | 92015 | 92015-1386 | 1 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 2 | ||
DAMPER | 92075 | 92075-281 | 1 | ||
SPRING,REAR BRAKE SWITCH | 92145 | 92145-0091 | 1 | ||
BOLT,TORX,6X16 | 92151 | 92151-1911 | 2 | ||
COLLAR | 92152 | 92152-1074 | 1 | ||
BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 2 | ||
DAMPER | 92161 | 92161-0117 | 2 | ||
DAMPER | 92161A | 92161-0118 | 1 | ||
SCREW,TAPPING,5X14 | 92172 | 92172-0006 | 1 | ||
NUT,FLANGED,5MM | 92210 | 92210-0007 | 3 | ||
NUT,5MM | 92210A | 92210-1266 | 2 |
