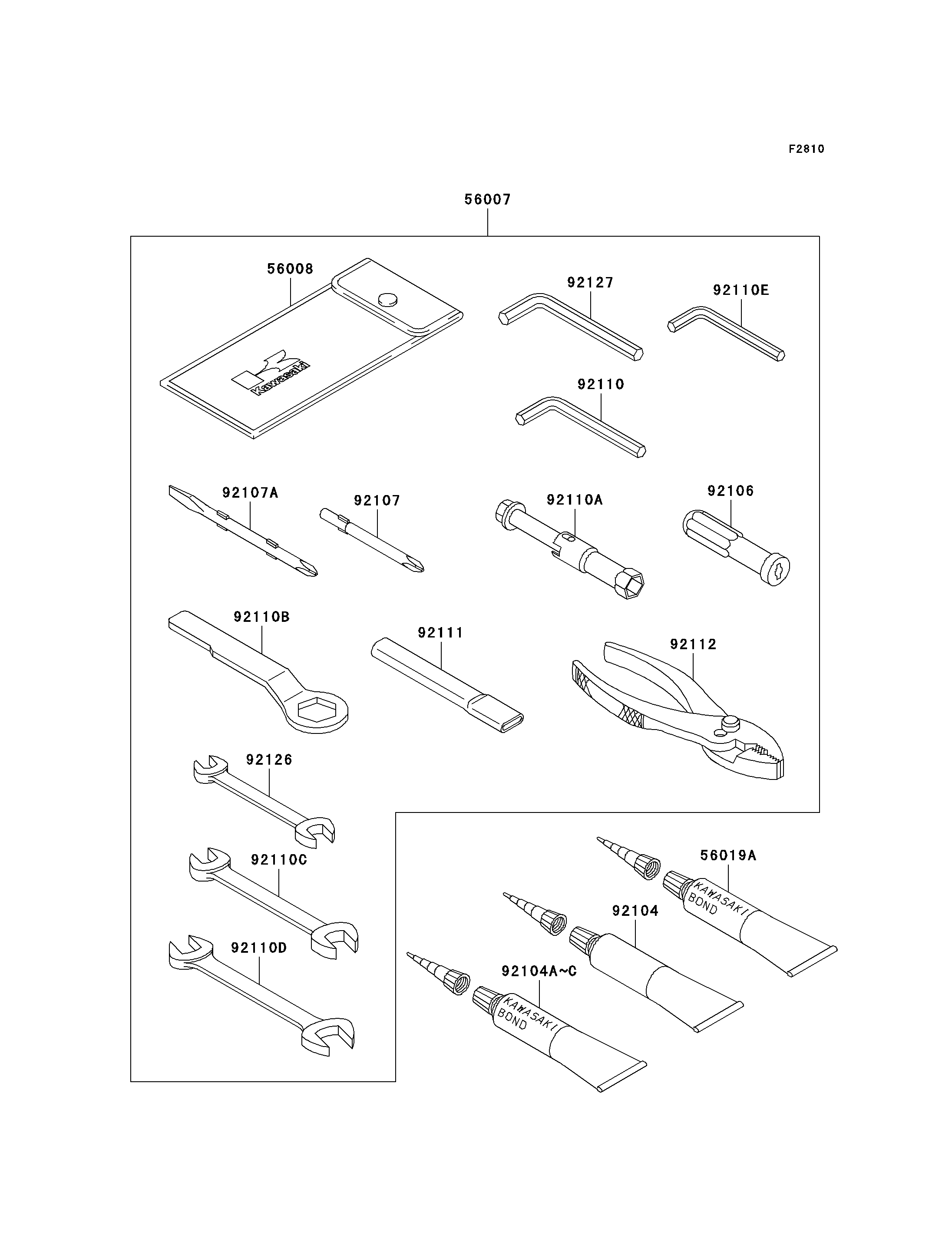

2005 Ninja® ZX™-10R - Owner's Tools

DOWNLOAD PDF
SELECT A NEW PART
56007
56008
56019A
92104
92104A
92104B
92104C
92106
92107
92107A
92110
92110A
92110B
92110C
92110D
92110E
92111
92112
92126
92127
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT 56007 56007-0009 1
BAG,TOOL 56008 56008-006 1
THREE BOND TB1211,HT/RS,WHITE 56019A 56019-120 1
GASKET-LIQUID,SUPER-X,NO.8008 92104 92104-0002 1
GASKET-LIQUID,TB1211F 92104A 92104-0004 1
GASKET-LIQUID,TB1216,GRAY 92104B 92104-1063 1
GASKET-LIQUID,TB1215B,BLACK 92104C 92104-1066 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#3PHILLIPS 92107 92107-005 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107A 92107-1051 1
TOOL-WRENCH,ALLEN,5MM 92110 92110-1015 1
TOOL-WRENCH,BOX,16MM 92110A 92110-1132 1
TOOL-WRENCH,BOX END,27MM 92110B 92110-1147 1
TOOL-WRENCH,OPEN END,10X12 92110C 92110-1152 1
TOOL-WRENCH,OPEN END,14X17 92110D 92110-1153 1
TOOL-WRENCH,ALLEN,4MM 92110E 92110-3703 1
TOOL-BAR,BOX END WRENCH 92111 92111-1051 1
TOOL-PLIERS 92112 92112-1001 1
TOOL-WRENCH,OPEN END,8X10 92126 92126-004 1
TOOL-WRENCH,ALLEN,6MM 92127 92127-003 1
