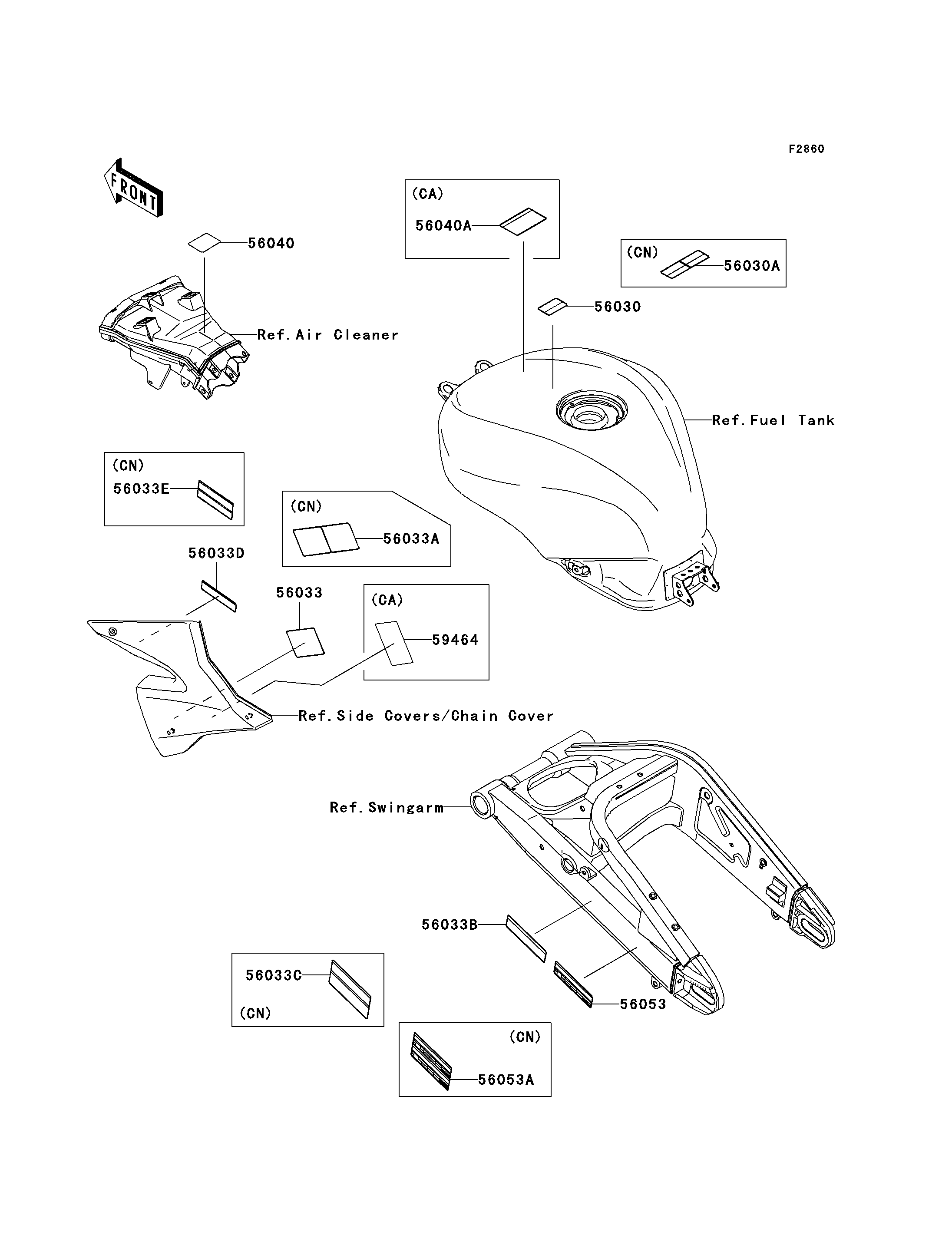

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-1177 1 CAUS
LABEL,GASOLINE 56030A 56030-1178 1 CN
LABEL-MANUAL,DAILY SAFETY 56033 56033-0057 1 CAUS
LABEL-MANUAL,DAILY SAFETY 56033A 56033-0058 1 CN
LABEL-MANUAL,CHAIN 56033B 56033-0059 1 CAUS
LABEL-MANUAL,CHAIN 56033C 56033-0060 1 CN
LABEL-MANUAL,OIL&OIL FILTER 56033D 56033-0066 1 CAUS
LABEL-MANUAL,OIL&OIL FILTER 56033E 56033-0067 1 CN
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
LABEL-SPECIFICATION,TIRE&LOAD 56053 56053-0068 1 CAUS
LABEL-SPECIFICATION,TIRE&LOAD 56053A 56053-0069 1 CN
LABEL-CERTIFICATION,EVAPO ROUT 59464 59464-0251 1 CA
