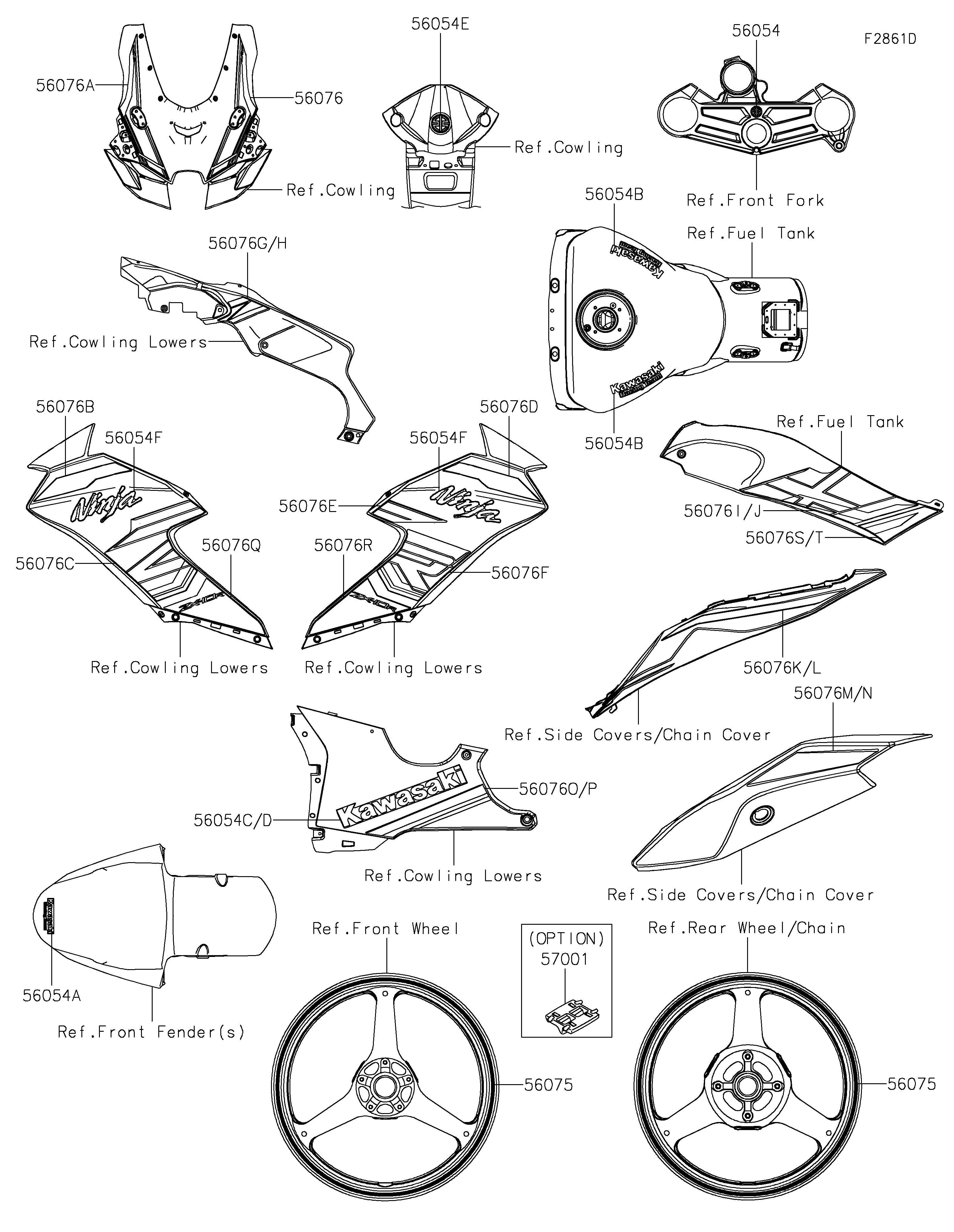

2024 Ninja® ZX-10R ABS - Decals(Green)(LRFAN/LRFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054B
56054C
56054D
56054E
56054F
56054F
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076R
56076S
56076T
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,UPP HOLDER,RIVER 56054 56054-1628 1
MARK,FR FENDER,KRT 56054A 56054-2821 1
MARK,KAWASAKI RACING TEAM 56054B 56054-2869 2
MARK,LWR COWL.,LH,KAWASAKI 56054C 56054-2885 1
MARK,LWR COWL.,RH,KAWASAKI 56054D 56054-2886 1
MARK,UPP COWL.,RIVER 56054E 56054-2900 1
MARK,SIDE COWL.,NINJA 56054F 56054-3900 2
PATTERN,WHEEL,GREEN,6X1079 56075 56075-1575 4
PATTERN,UPP COWL.,LH 56076 56076-7595 1
PATTERN,UPP COWL.,RH 56076A 56076-7596 1
PATTERN,SIDE COWL.,LH,UPP 56076B 56076-7597 1
PATTERN,SIDE COWL.,LH,CNT 56076C 56076-7598 1
PATTERN,SIDE COWL.,RH,UPP 56076D 56076-7599 1
PATTERN,SIDE COWL.,RH,CNT,UPP 56076E 56076-7600 1
PATTERN,SIDE COWL.,RH,CNT,LWR 56076F 56076-7601 1
PATTERN,SIDE COWL.,LH 56076G 56076-7602 1
PATTERN,SIDE COWL.,RH 56076H 56076-7603 1
PATTERN,TANK COVER,LH,UPP 56076I 56076-7604 1
PATTERN,TANK COVER,RH,UPP 56076J 56076-7605 1
PATTERN,TAIL COVER,LH 56076K 56076-7606 1
PATTERN,TAIL COVER,RH 56076L 56076-7607 1
PATTERN,SIDE COVER,LH 56076M 56076-7608 1
PATTERN,SIDE COVER,RH 56076N 56076-7609 1
PATTERN,LWR COWL.,LH 56076O 56076-7610 1
PATTERN,LWR COWL.,RH 56076P 56076-7611 1
PATTERN,SIDE COWL.,LH,LWR 56076Q 56076-7728 1
PATTERN,SIDE COWL.,RH,LWR 56076R 56076-7729 1
PATTERN,TANK COVER,LH,LWR 56076S 56076-7730 1
PATTERN,TANK COVER,RH,LWR 56076T 56076-7731 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
