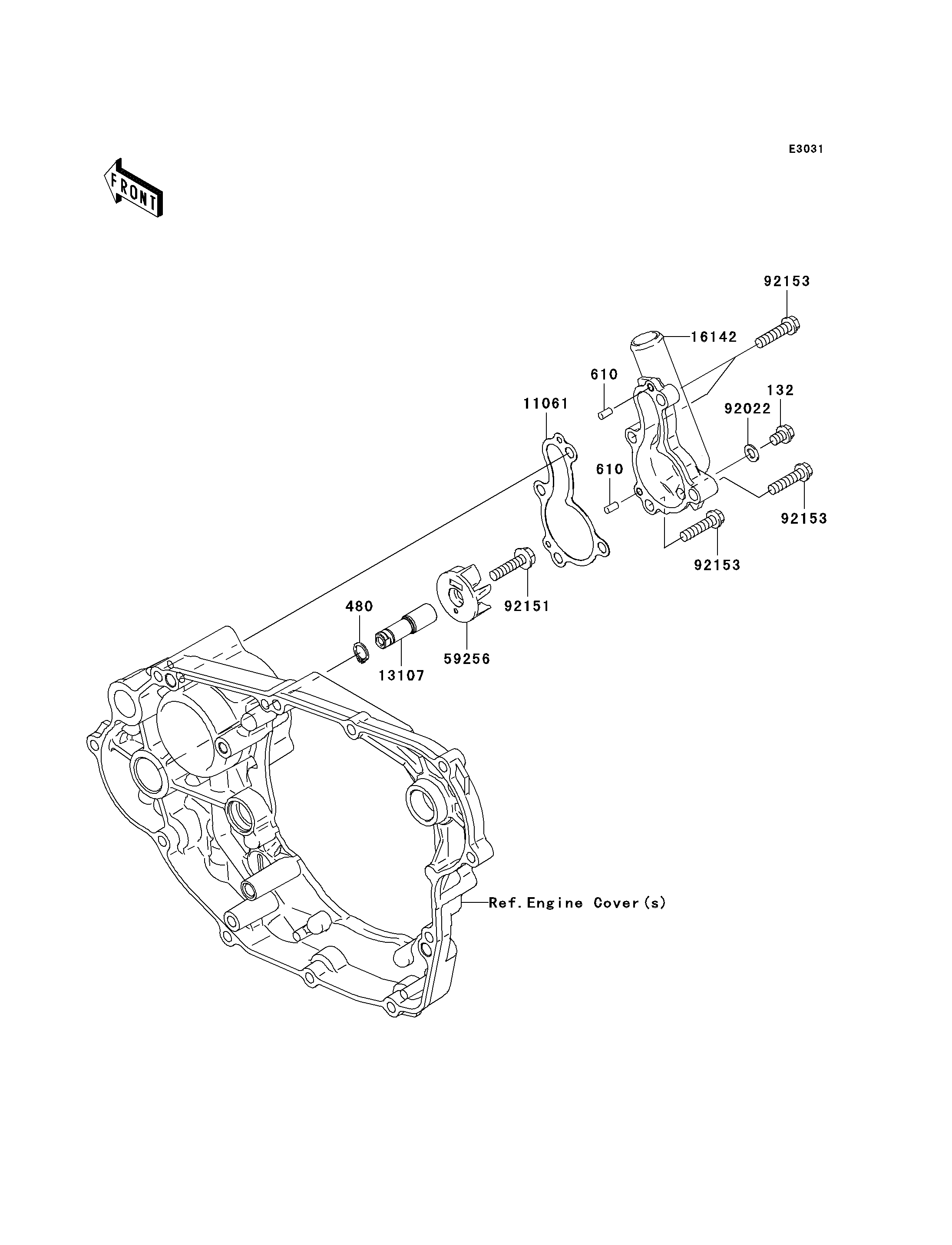

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X8 132 132BB0608 1
CIRCLIP-TYPE-C,10MM 480 480J1000 1
ROLLER,4X8 610 610A0408 2
GASKET,WATER PUMP COVER 11061 11061-0225 1
SHAFT,WATER PUMP 13107 13107-0135 1
COVER-PUMP,WATER 16142 16142-0029 1
IMPELLER 59256 59256-0003 1
WASHER,6.2X11X1 92022 92022-304 1
BOLT,FLANGED,6X25 92151 92151-1546 1
BOLT,FLANGED-SMALL,6X25 92153 92153-1784 4
