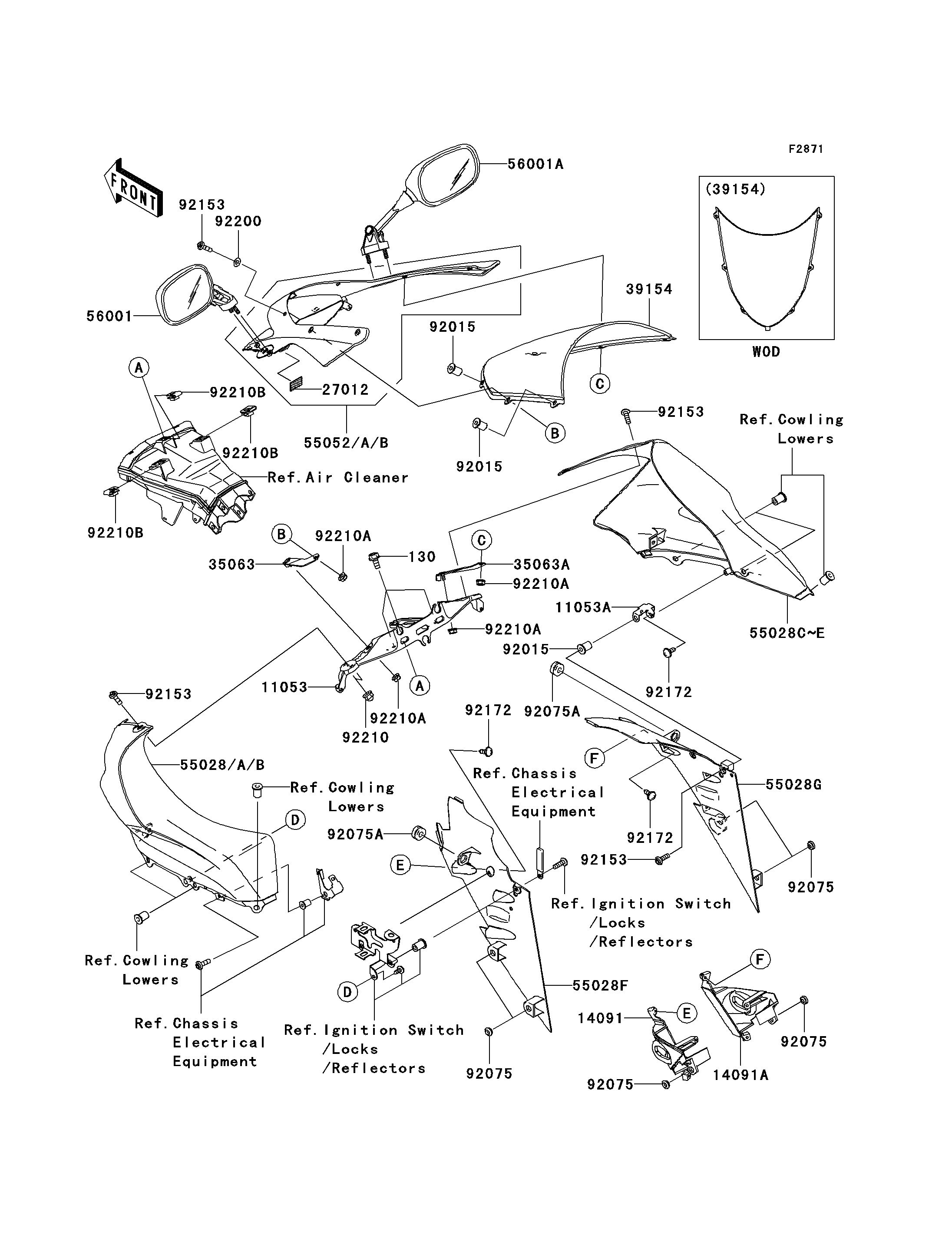

Parts Diagrams |
130
11053
11053A
14091
14091A
27012
35063
35063A
39154
55028
55028A
55028B
55028C
55028D
55028E
55028F
55028G
55052
55052A
55052B
56001
56001A
92015
92015
92015
92075
92075
92075
92075
92075A
92075A
92153
92153
92153
92153
92172
92172
92172
92200
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130L0616 | 3 | ||
BRACKET,UPP COWLING | 11053 | 11053-0404 | 1 | ||
BRACKET,UPP COWLING | 11053A | 11053-1613 | 1 | ||
COVER,SIGNAL LAMP,LH | 14091 | 14091-0406 | 1 | ||
COVER,SIGNAL LAMP,RH | 14091A | 14091-0407 | 1 | ||
MAGIC TAPE | 27012 | 27012-0051 | 1 | ||
STAY,UPP COWLING,LH | 35063 | 35063-0100 | 1 | ||
STAY,UPP COWLING,RH | 35063A | 35063-0101 | 1 | ||
WINDSHIELD | 39154 | 39154-0001 | 1 | ||
COWLING,UPP,LH,P.M.RED | 55028 | 55028-0005-724 | 1 | ||
COWLING,UPP,LH,TITANIUM | 55028A | 55028-0005-725 | 1 | ||
COWLING,UPP,LH,L.GREEN | 55028B | 55028-0005-777 | 1 | ||
COWLING,UPP,RH,P.M.RED | 55028C | 55028-0006-724 | 1 | ||
COWLING,UPP,RH,TITANIUM | 55028D | 55028-0006-725 | 1 | ||
COWLING,UPP,RH,L.GREEN | 55028E | 55028-0006-777 | 1 | ||
COWLING,FR,LH | 55028F | 55028-0038 | 1 | ||
COWLING,FR,RH | 55028G | 55028-0039 | 1 | ||
COWLING-ASSY,UPP,CNT,P.M.RED | 55052 | 55052-5121-724 | 1 | ||
COWLING-ASSY,UPP,CNT,TITANIUM | 55052A | 55052-5121-725 | 1 | ||
COWLING-ASSY,UPP,CNT,L.GREEN | 55052B | 55052-5121-777 | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-0005 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-0006 | 1 | ||
NUT,WELL,5MM | 92015 | 92015-1757 | 5 | ||
DAMPER | 92075 | 92075-1067 | 6 | ||
DAMPER | 92075A | 92075-1690 | 2 | ||
BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 9 | ||
SCREW,TAPPING,5X14 | 92172 | 92172-0006 | 7 | ||
WASHER,NYLON,5.2X12X1 | 92200 | 92200-1011 | 6 | ||
NUT,CAP,6MM | 92210 | 92210-0003 | 4 | ||
NUT,FLANGED,5MM | 92210A | 92210-0007 | 4 | ||
NUT | 92210B | 92210-0130 | 3 |
