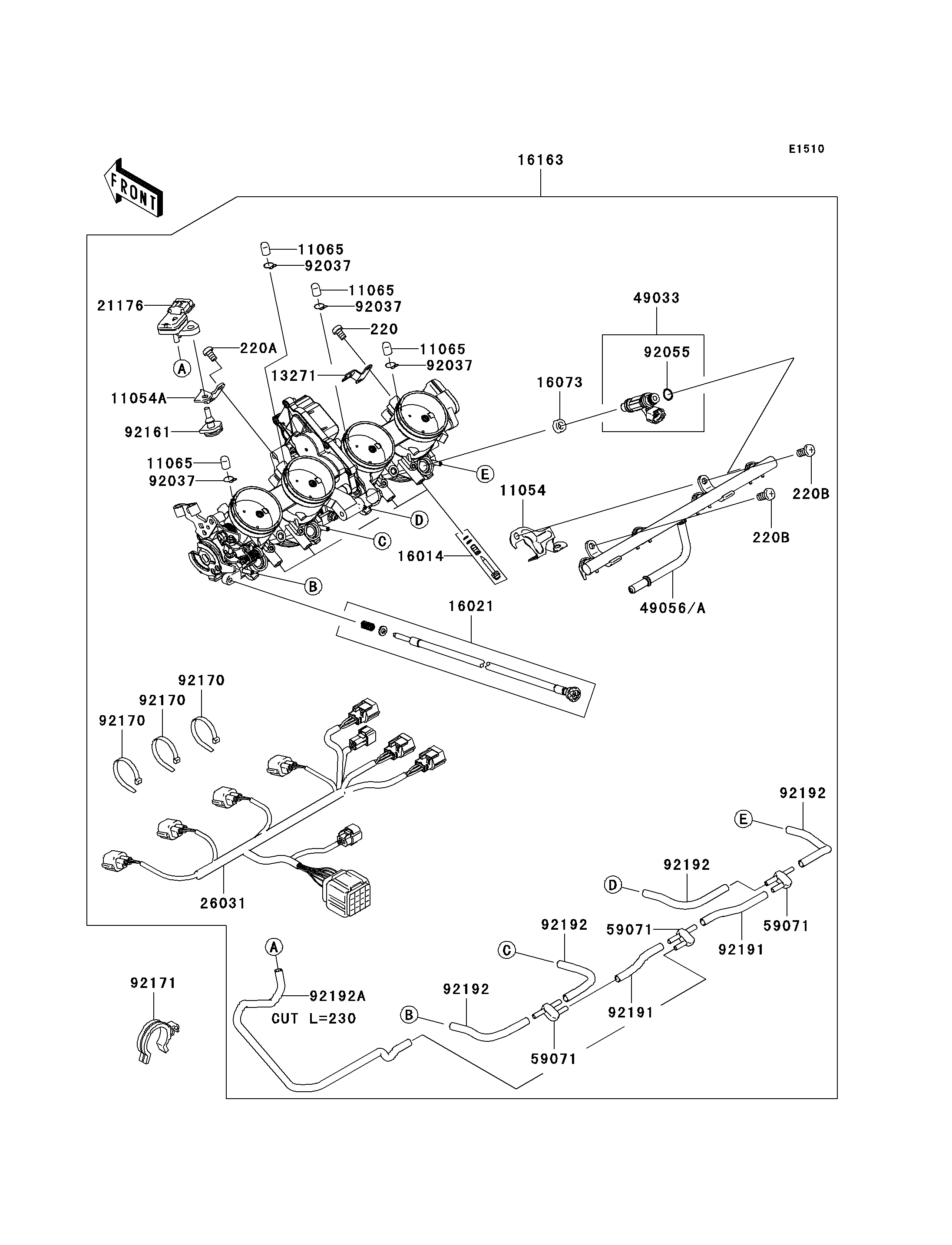

2007 Ninja® ZX™-10R - Throttle

DOWNLOAD PDF
SELECT A NEW PART
220
220A
220B
220B
11054
11054A
11065
11065
11065
11065
13271
16014
16021
16073
16163
21176
26031
49033
49056A
59071
59071
59071
92037
92037
92037
92037
92055
92161
92170
92170
92170
92171
92191
92191
92192
92192
92192
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS,5X6 220 220D0506 2
SCREW-PAN-CROS,5X8 220A 220D0508 2
SCREW-PAN-CROSS,6X12 220B 220D0612 2
BRACKET 11054 11054-0554 1
BRACKET 11054A 11054-0556 1
CAP 11065 11065-0072 4
PLATE 13271 13271-0792 1
SCREW-PILOT AIR 16014 16014-0005 4
SCREW-THROTTLE STOP 16021 16021-0007 1
INSULATOR,INJECTER 16073 16073-1123 4
THROTTLE-ASSY 16163 16163-0072 1
SENSOR,PRESSURE 21176 21176-0058 1
HARNESS 26031 26031-0344 1
NOZZLE-INJECTION 49033 49033-0010 4
PIPE-INJECTION 49056A 49056-0017 1
JOINT 59071 59071-0022 3
CLAMP,TUBE 92037 92037-1124 4
RING-O,INJECTION NOZZLE 92055 92055-1622 4
DAMPER 92161 92161-0041 1
CLAMP 92170 92170-3749 3
CLAMP 92171 92171-0359 1
TUBE,3.2X7.4X70 92191 92191-1552 2
TUBE 92192 92192-0131 4
TUBE 92192A 92192-0351 1
