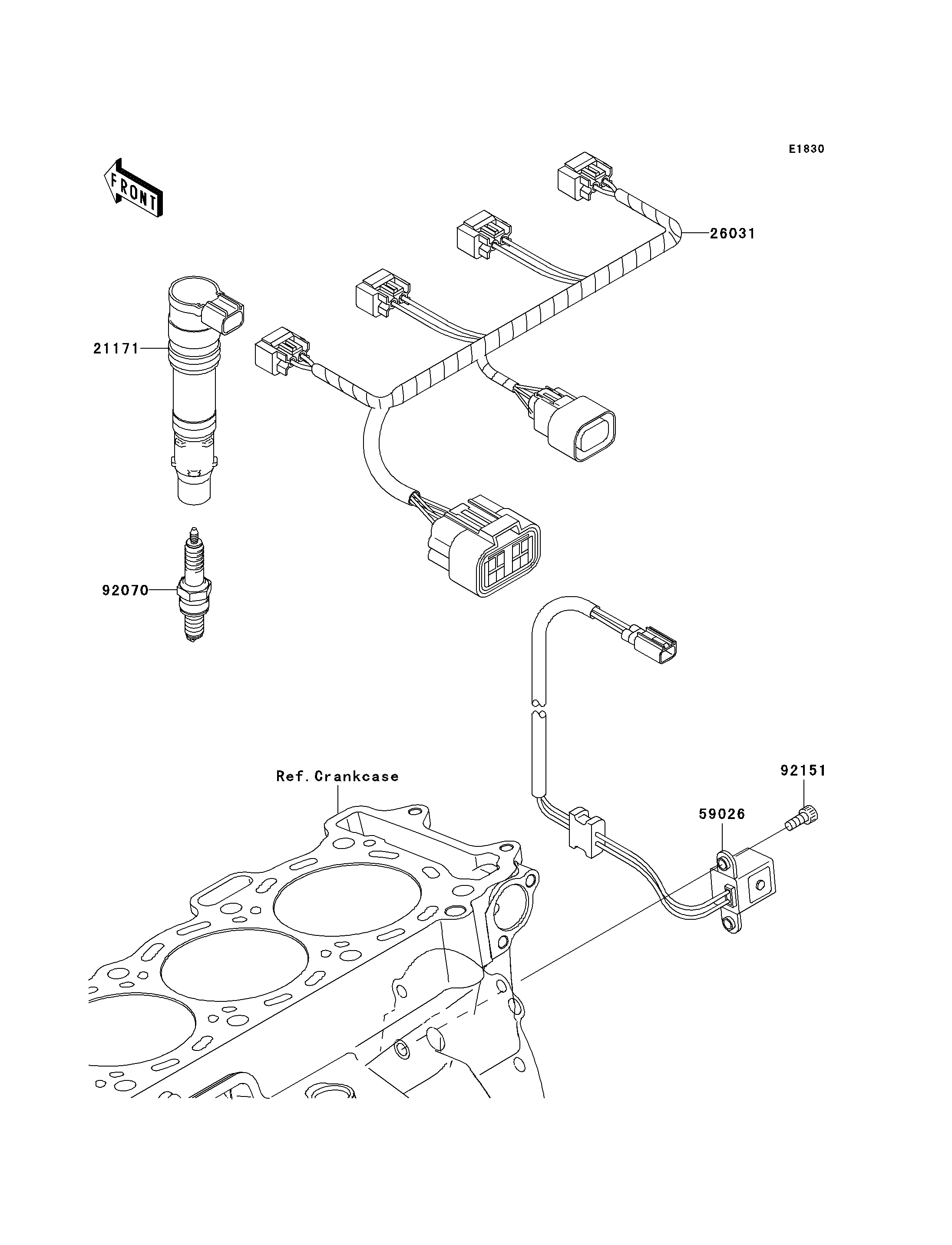

21171
26031
59026
92070
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-ASSY-IGNITION 21171 21171-0005 4
HARNESS 26031 26031-0371 1
COIL-PULSING 59026 59026-0009 1
PLUG-SPARK,CR9EIA(NGK) 92070 92070-0014 AR
BOLT,SOCKET,5X12 92151 92151-1118 2
