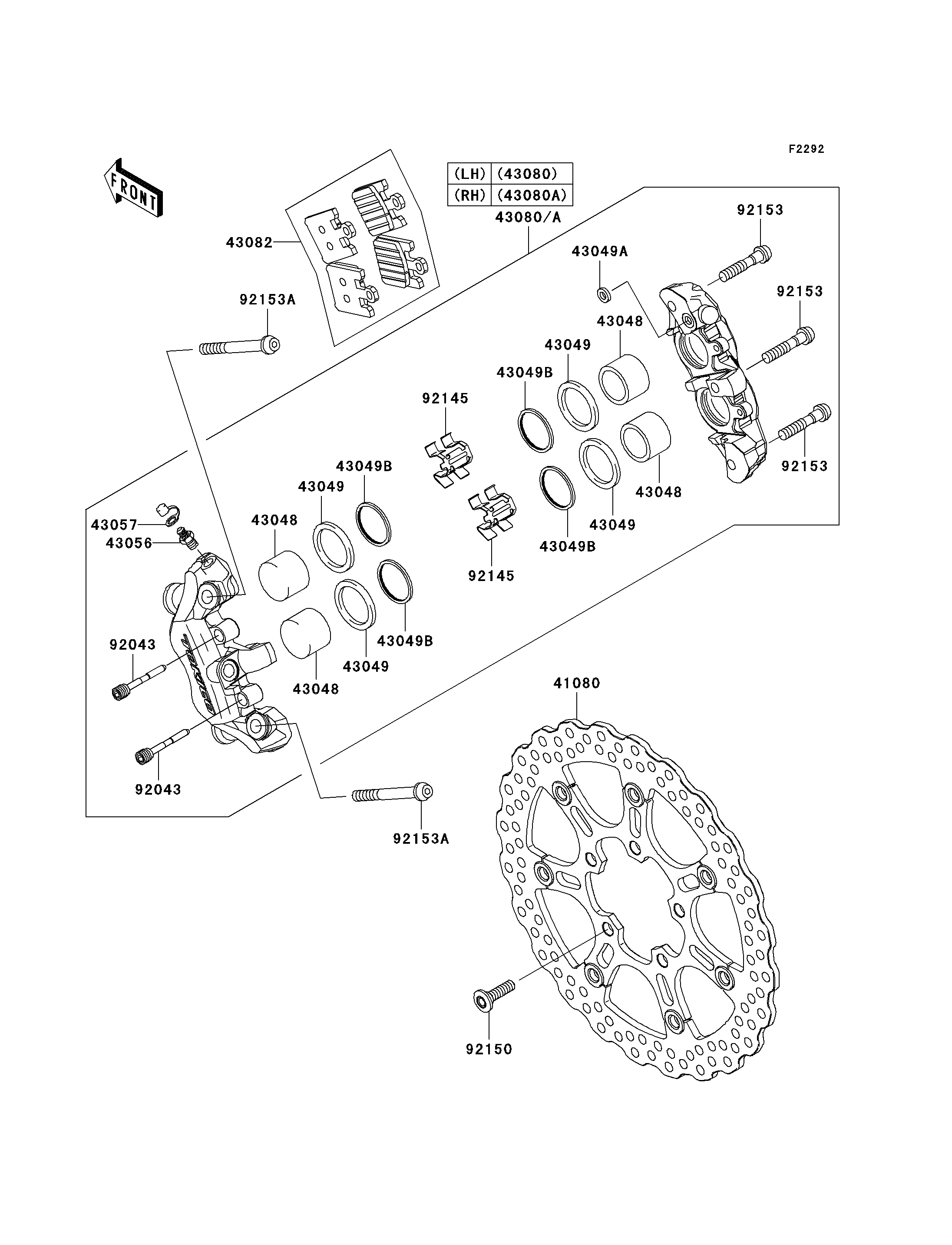

Parts Diagrams |
41080
43048
43048
43048
43048
43049
43049
43049
43049
43049A
43049B
43049B
43049B
43049B
43056
43057
43080
43080A
43082
92043
92043
92145
92145
92150
92153
92153
92153
92153A
92153A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
DISC,FR,HOUSINGBLACK+DISC SILV | 41080 | 41080-0098-11I | 2 | ||
PISTON-CALIPER | 43048 | 43048-0004 | 8 | ||
PACKING,PISTON | 43049 | 43049-0003 | 8 | ||
PACKING,SEAL,6.5X11.5X2.2 | 43049A | 43049-1004 | 2 | ||
PACKING,WIPER | 43049B | 43049-1107 | 8 | ||
BREATHER-BRAKE | 43056 | 43056-1054 | 2 | ||
CAP-BREATHER | 43057 | 43057-003 | 2 | ||
CALIPER-SUB-ASSY,FR,LH,BLACK | 43080 | 43080-0017-DJ | 1 | ||
CALIPER-SUB-ASSY,FR,RH,BLACK | 43080A | 43080-0018-DJ | 1 | ||
PAD-ASSY-BRAKE | 43082 | 43082-0058 | 2 | ||
PIN,PAD | 92043 | 92043-1709 | 4 | ||
SPRING,PAD | 92145 | 92145-1568 | 4 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1771 | 10 | ||
BOLT,SOCKET,8X40 | 92153 | 92153-0360 | 6 | ||
BOLT,SOCKET,10X60 | 92153A | 92153-1531 | 4 |
