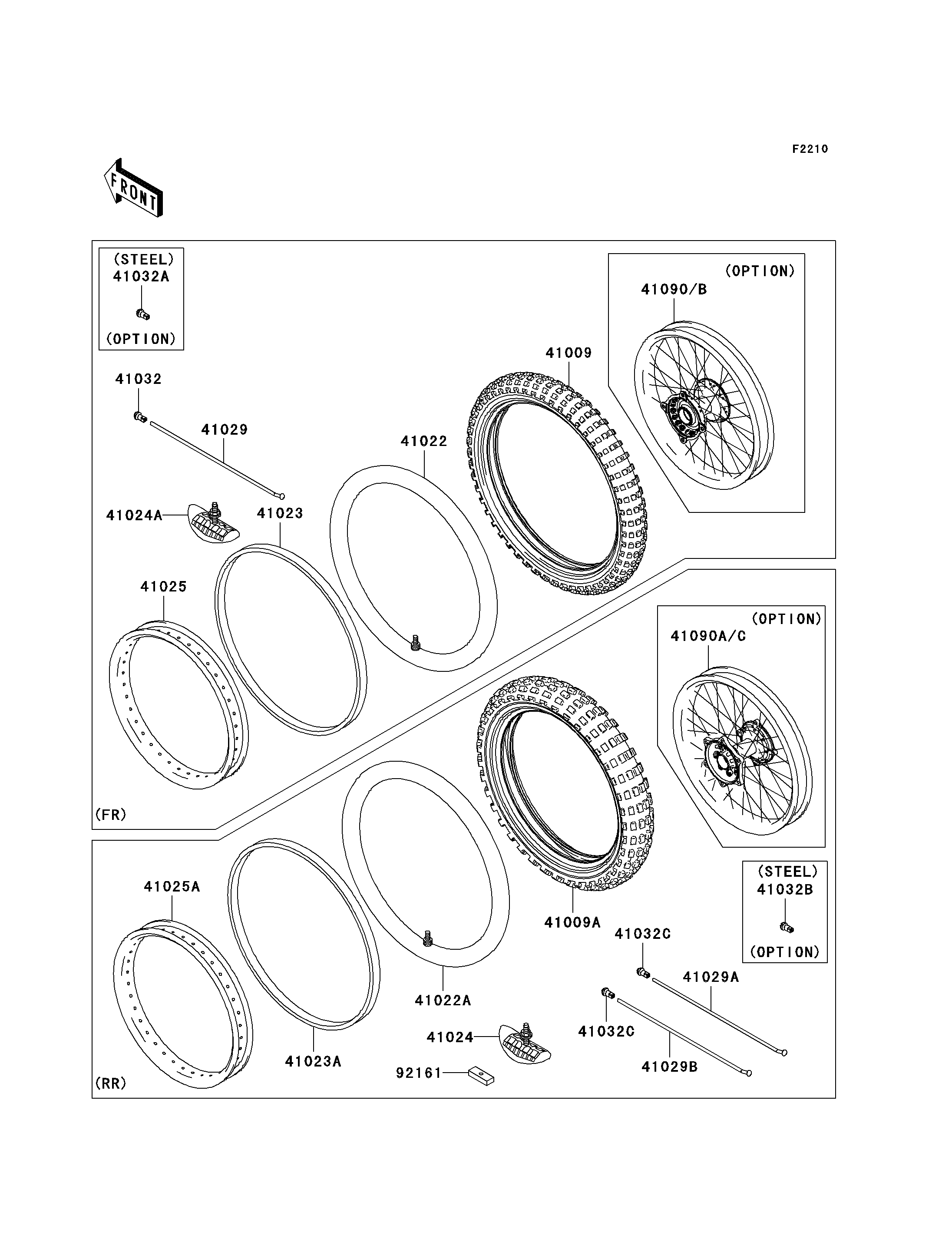

Parts Diagrams |
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41029B
41032
41032A
41032B
41032C
41032C
41090B
41090C
92161
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,90/100-21 57M,D742F(D) | 41009 | 41009-0118 | 1 | ||
TIRE,RR,120/80-19 63M,D756(D) | 41009A | 41009-0119 | 1 | ||
TUBE-TIRE,90/100-21(D) | 41022 | 41022-0022 | 1 | ||
TUBE-TIRE,120/80-19(D) | 41022A | 41022-0023 | 1 | ||
BAND-RIM,90/100-21(D) | 41023 | 41023-0009 | 1 | ||
BAND-RIM,120/80-19(D) | 41023A | 41023-0010 | 1 | ||
STOPPER-RIM,2.15-M(DUNLOP) | 41024 | 41024-009 | 1 | ||
STOPPER-RIM,1.60-M(DUNLOP) | 41024A | 41024-010 | 1 | ||
RIM,FR,1.60X21,BLACK | 41025 | 41025-0094-WC | 1 | ||
RIM,RR,2.15X19,BLACK | 41025A | 41025-0095-WC | 1 | ||
SPOKE-INNER,FR | 41029 | 41029-0003 | 36 | ||
SPOKE-INNER,RR,202MMX160D | 41029A | 41029-1204 | 27 | ||
SPOKE-INNER,RR,204MMX159D | 41029B | 41029-1330 | 9 | ||
NIPPLE-SPOKE,ALUMINIUM | 41032 | 41032-0002 | 36 | ||
NIPPLE-SPOKE,8X9X20(+) | 41032A | 41032-1077 | 36 | (OPTION) | |
NIPPLE-SPOKE,STEEL | 41032B | 41032-1085 | 36 | (OPTION) | |
NIPPLE-SPOKE,ALUMINIUM | 41032C | 41032-1086 | 36 | ||
WHEEL,FR,1.60X21,ALUM NIPPLE | 41090B | 41090-5228 | 1 | (OPTION) | |
WHEEL,RR,2.15X19,ALUM NIPPLE | 41090C | 41090-5229 | 1 | (OPTION) | |
DAMPER,RIM STOPPER | 92161 | 92161-1184 | 1 |
TIRE,FR,90/100-21 57M,D742F(D) | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,120/80-19 63M,D756(D) | |
REF # | 41009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,90/100-21(D) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,120/80-19(D) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,90/100-21(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,120/80-19(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,2.15-M(DUNLOP) | |
REF # | 41024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-RIM,1.60-M(DUNLOP) | |
REF # | 41024A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,1.60X21,BLACK | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,2.15X19,BLACK | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 36 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,202MMX160D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 27 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,204MMX159D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE,ALUMINIUM | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 36 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE,8X9X20(+) | |
REF # | 41032A |
---|---|
PART NUMBER | |
QUANTITY | 36 |
DESTINATION | |
REMARKS | (OPTION) |
NIPPLE-SPOKE,STEEL | |
REF # | 41032B |
---|---|
PART NUMBER | |
QUANTITY | 36 |
DESTINATION | |
REMARKS | (OPTION) |
NIPPLE-SPOKE,ALUMINIUM | |
REF # | 41032C |
---|---|
PART NUMBER | |
QUANTITY | 36 |
DESTINATION | |
REMARKS |
WHEEL,FR,1.60X21,ALUM NIPPLE | |
REF # | 41090B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
WHEEL,RR,2.15X19,ALUM NIPPLE | |
REF # | 41090C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | (OPTION) |
DAMPER,RIM STOPPER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
