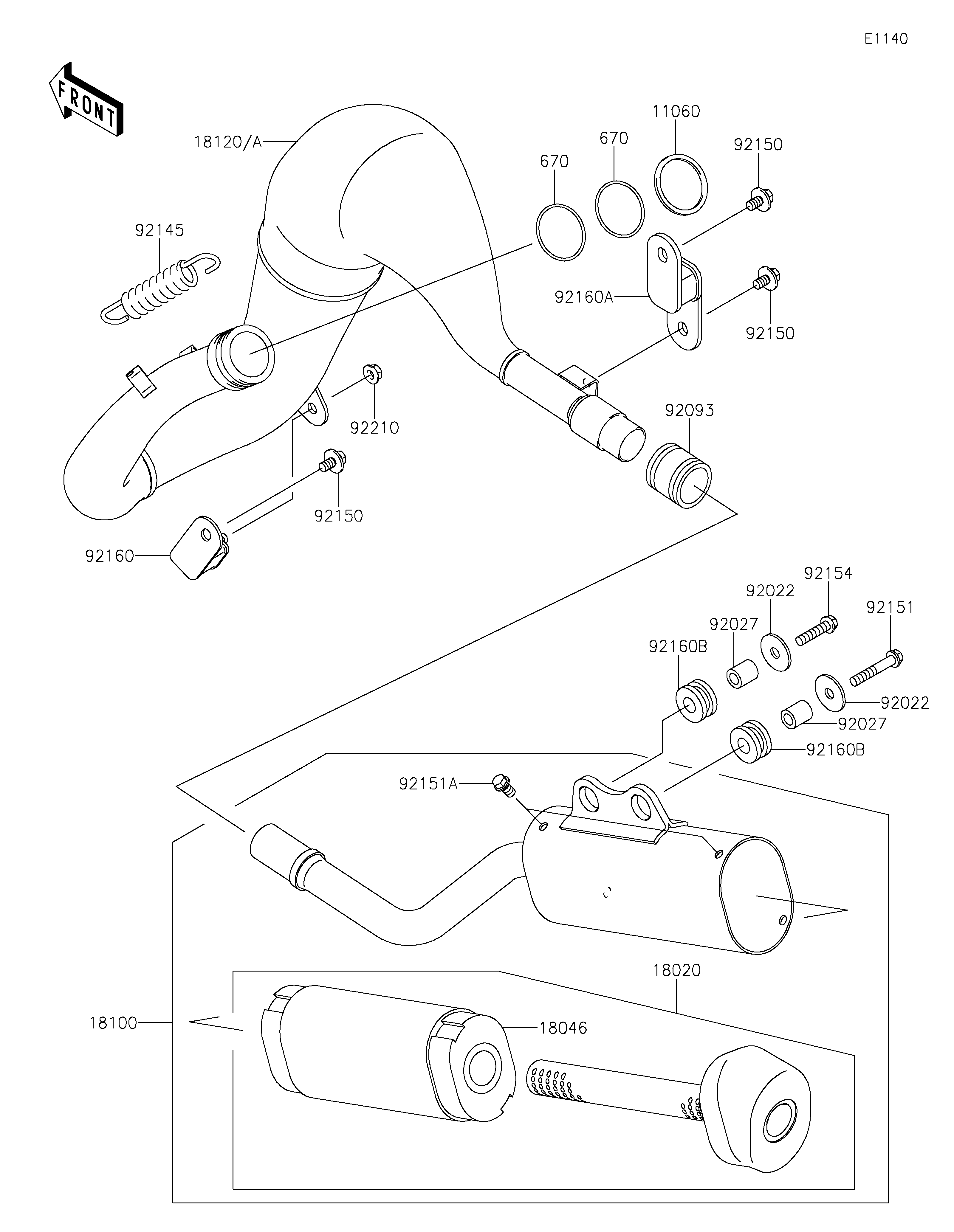

2021 KX™65 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
18020
18046
18100
18120
18120A
92022
92022
92027
92027
92093
92145
92150
92150
92150
92151
92151A
92154
92160
92160A
92160B
92160B
92210
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST 11060 11060-1922 1
BAFFLE 18020 18020-1284 1
WOOL,BAFFLE 18046 18046-1587 1
BODY-ASSY-MUFFLER 18100 18100-1092 1
CHAMBER-EXHAUST 18120 18120-1116 1
CHAMBER-EXHAUST 18120A 18120-1119 1 (OPTION)
WASHER,6.5X22X1.6 92022 92022-237 2
COLLAR,6.8X10X11.5 92027 92027-1210 2
SEAL 92093 92093-1511 1
SPRING,EXHAUST CONNECTING 92145 92145-1340 2
BOLT,6X12 92150 92150-1435 3
BOLT,6X35 92151 92151-1135 1
BOLT,FLANGED,6X10 92151A 92151-1822 4
BOLT,FLANGED,6X25 92154 92154-0520 1
DAMPER,MUFFLER,FR 92160 92160-1176 1
DAMPER,MUFFLER,RR 92160A 92160-1201 1
DAMPER 92160B 92160-1913 2
NUT,FLANGED,6MM 92210 92210-0630 1
O RING,32MM 670 670E3032 2
