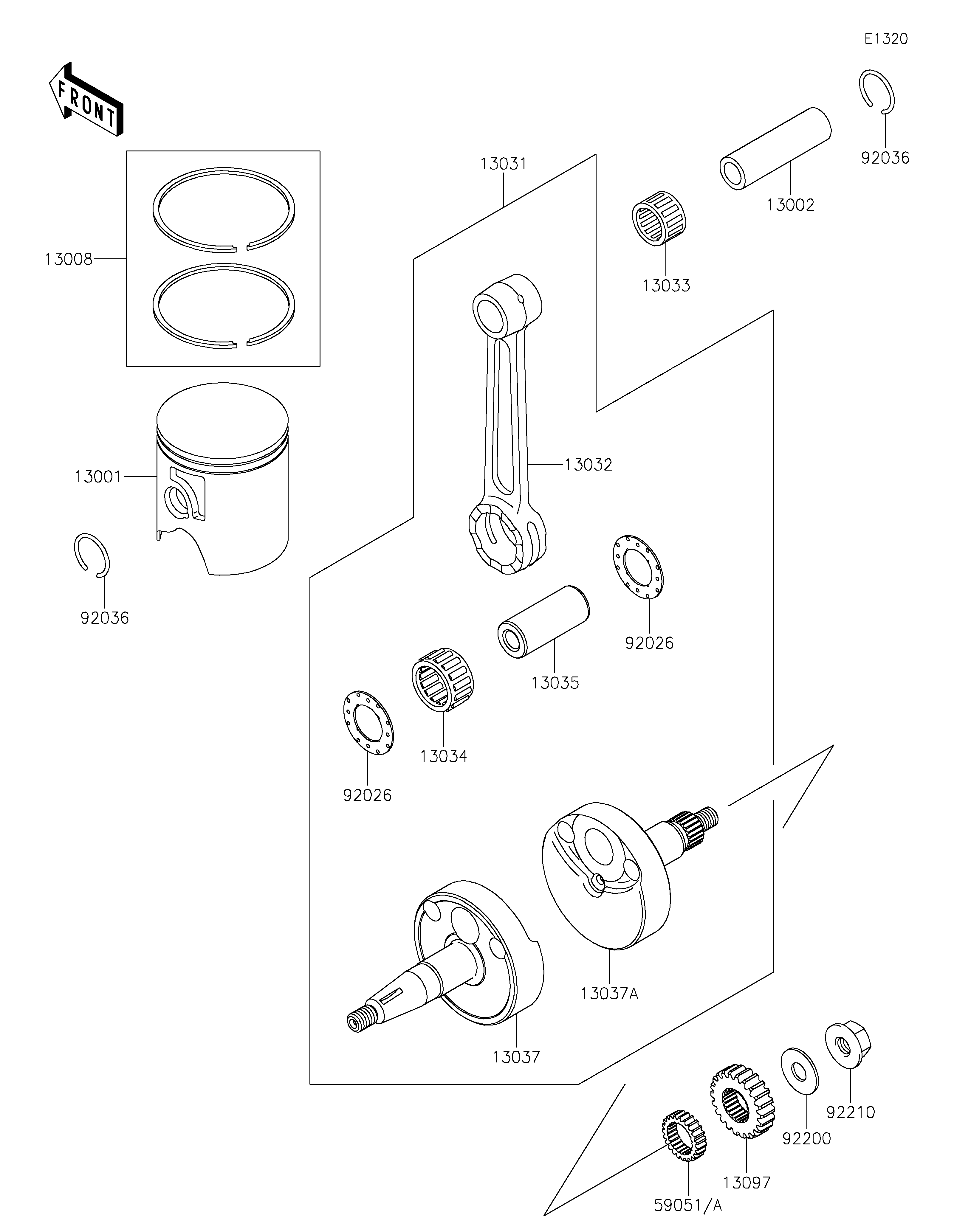

13001
13002
13008
13031
13032
13033
13034
13035
13037
13037A
13097
59051A
92026
92026
92036
92036
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,B 13001 13001-0040 1
PIN-PISTON 13002 13002-1119 1
RING-SET-PISTON 13008 13008-1199 1
CRANKSHAFT-COMP 13031 13031-1549 1
ROD-CONNECTING 13032 13032-1246 1
BEARING-SMALL END 13033 13033-0002 1
BEARING-BIG END,SKTZ 202714EGS 13034 13034-0012 1
PIN-CRANK 13035 13035-1002 1
CRANKSHAFT,LH 13037 13037-1615 1
CRANKSHAFT,RH 13037A 13037-1770 1
GEAR-PRIMARY SPUR,22T 13097 13097-0055 1
GEAR-SPUR,PUMP,23T 59051A 59051-0883 1
SPACER 92026 92026-1522 2
RING-SNAP,PISTON PIN 92036 92036-007 2
WASHER,10.2X25X1.5 92200 92200-0213 1
NUT,FLANGED,10MM 92210 92210-0838 1
