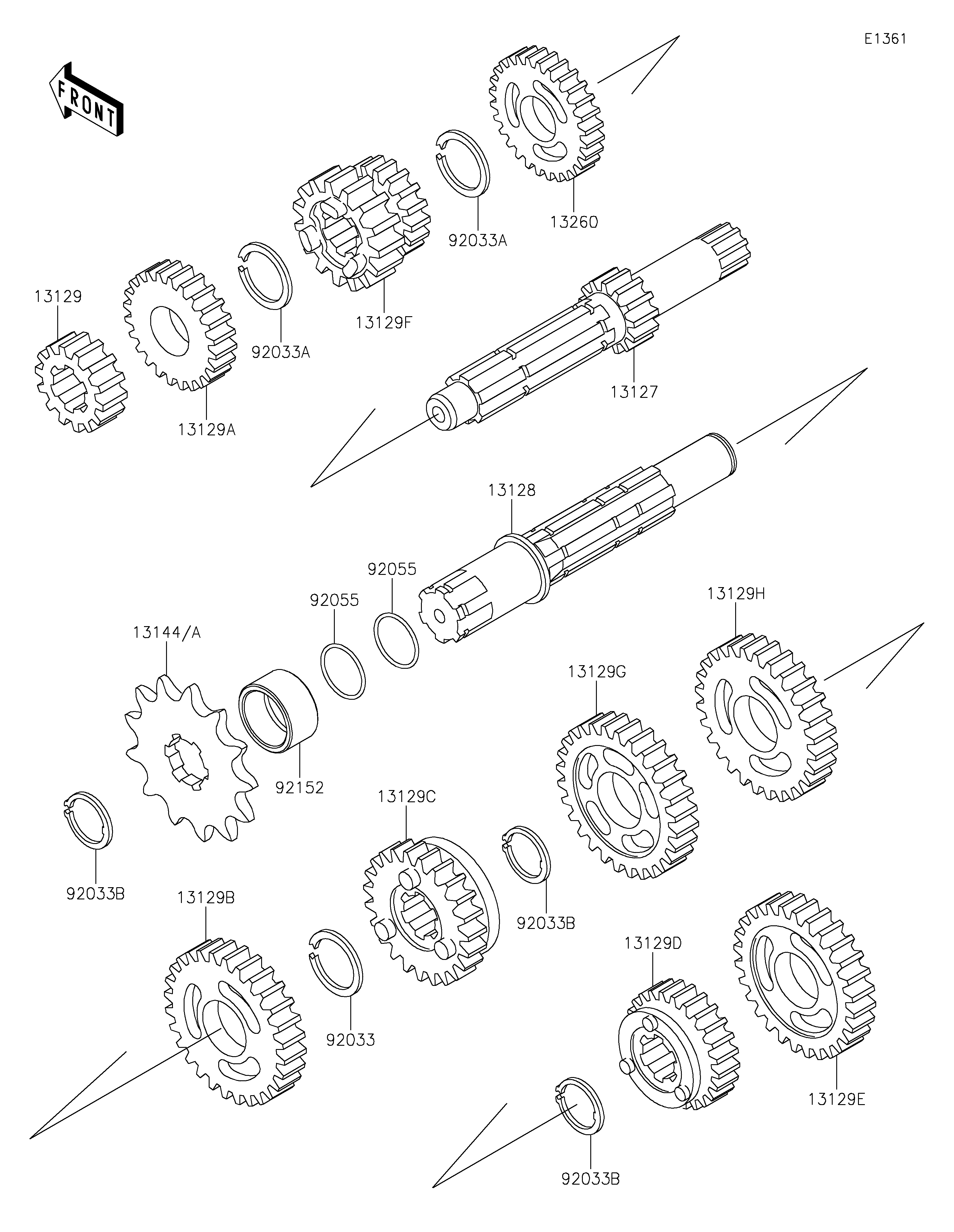

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13127
13128
13129
13129A
13129B
13129C
13129D
13129E
13129F
13129G
13129H
13144
13144A
13260
92033
92033A
92033A
92033B
92033B
92033B
92055
92055
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-1105 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0016 | 1 | ||
| GEAR,INPUT 2ND,16T | 13129 | 13129-1215 | 1 | ||
| GEAR,INPUT 5TH,23T | 13129A | 13129-1343 | 1 | ||
| GEAR,OUTPUT 2ND,34T | 13129B | 13129-1345 | 1 | ||
| GEAR,OUTPUT 5TH,28T | 13129C | 13129-1348 | 1 | ||
| GEAR,OUTPUT TOP,26T | 13129D | 13129-1349 | 1 | ||
| GEAR,OUTPUT LOW,37T | 13129E | 13129-1515 | 1 | ||
| GEAR,INPUT 3RD&4TH,21T&18T | 13129F | 13129-1611 | 1 | ||
| GEAR,OUTPUT 4TH,30T | 13129G | 13129-1612 | 1 | ||
| GEAR,OUTPUT 3RD,31T | 13129H | 13129-1654 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144 | 13144-0564 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144A | 13144-1022 | 1 | (OPTION) | |
| GEAR,INPUT TOP,24T | 13260 | 13260-1542 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-029 | 1 | ||
| RING-SNAP,17MM | 92033A | 92033-1060 | 2 | ||
| RING-SNAP,18MM | 92033B | 92033-1079 | 3 | ||
| RING-O,17.5X1.5 | 92055 | 92055-022 | 2 | ||
| COLLAR,20X25X12.9 | 92152 | 92152-0195 | 1 |
