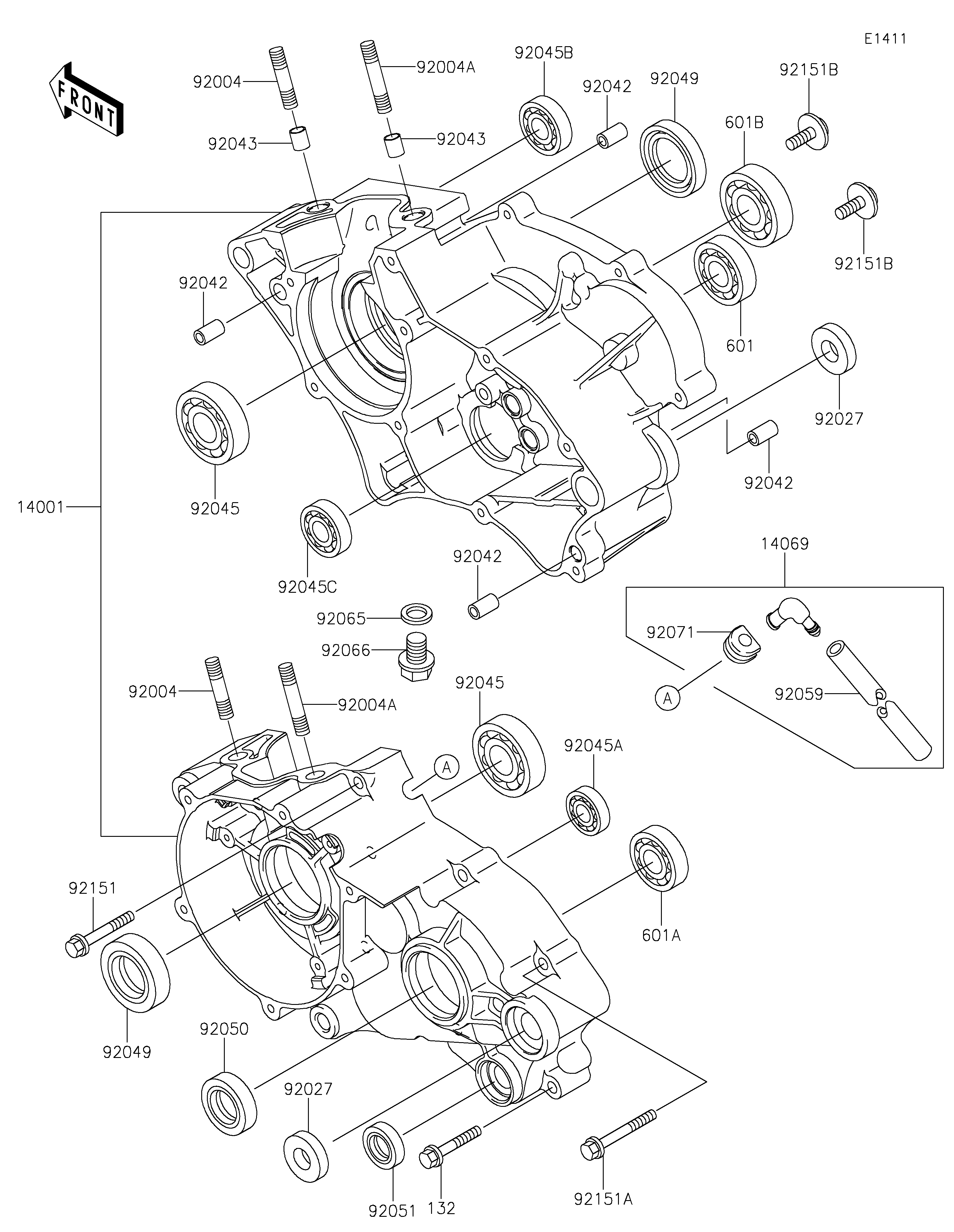

2021 KX™65 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
14001
14069
92004
92004
92004A
92004A
92027
92027
92042
92042
92042
92042
92043
92043
92045
92045
92045A
92045B
92045C
92049
92049
92050
92051
92059
92065
92066
92071
92151
92151A
92151B
92151B
132
601
601A
601B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE 14001 14001-0119 1
BREATHER 14069 14069-1003 1
STUD,8X30 92004 92004-0019 2
STUD,8X38 92004A 92004-0020 2
COLLAR,12.1X26X6 92027 92027-1744 2
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,8.2X10X14 92043 92043-1264 2
BEARING-BALL,R-6304C3 92045 92045-1059 2
BEARING-BALL,6001C3ML01 92045A 92045-1235 1
BEARING-BALL,626MC3 92045B 92045-1304 1
BEARING-BALL,6805JRZ 92045C 92045-1432 1
SEAL-OIL,SD20407GS 92049 92049-1188 2
SEAL-OIL,SC25376 92050 92050-013 1
SEAL-OIL,TB13225.5 92051 92051-005 1
TUBE,6X9X280 92059 92059-1074 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
GROMMET,BREATHER 92071 92071-042 1
BOLT,6X40 92151 92151-1131 5
BOLT,6X55 92151A 92151-1132 1
BOLT,6X16 92151B 92151-1762 2
BOLT-FLANGED-SMALL,6X35 132 132BA0635 3
BEARING-BALL,#6002 601 601A6002 1
BEARING-BALL,#6004 601A 601A6004 1
BEARING-BALL,#6203 601B 601A6203 1
