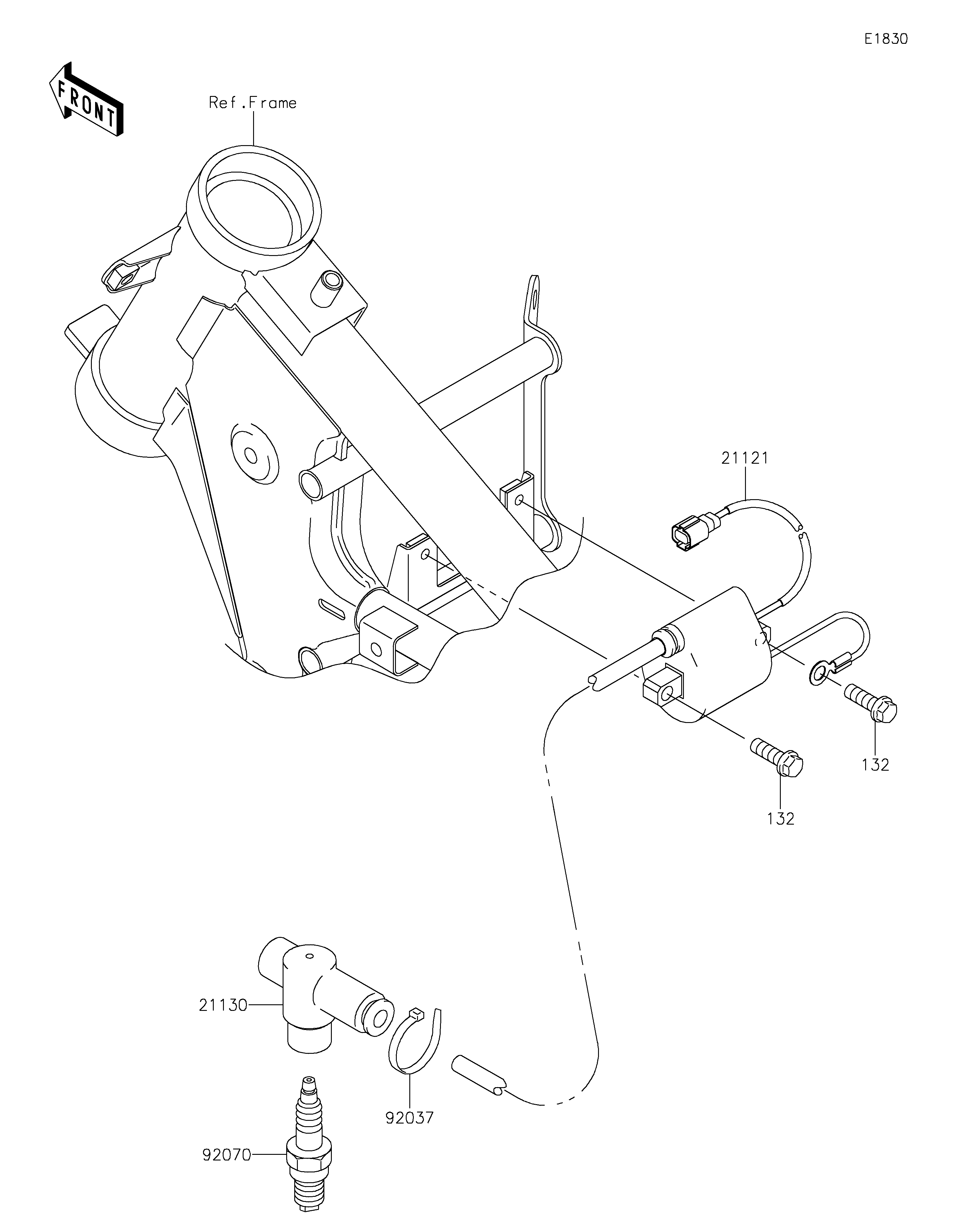

21121
21130
92037
92070
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-0722 1
CAP-SPARK PLUG 21130 21130-1077 1
CLAMP 92037 92037-1173 1
PLUG-SPARK,BR10EG(NGK),SOLID 92070 92070-1133 1
BOLT-FLANGED-SMALL,6X18 132 132BC0618 2
