11065
11065
41034
41068
92045
92049
92049
92152
92152
92152A
92200
92210
550
601

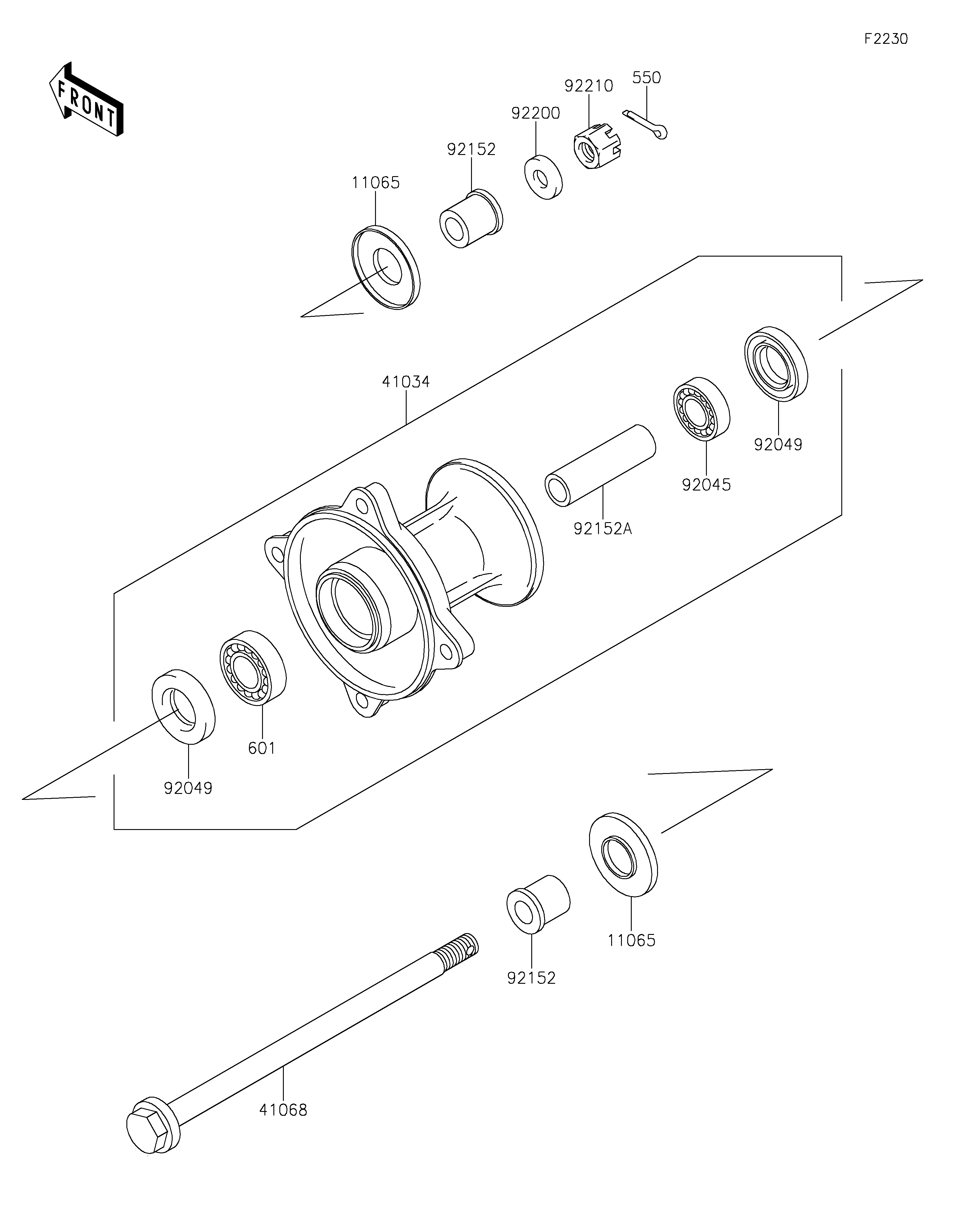

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1137 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1302 1
AXLE,FR 41068 41068-1418 1
BEARING-BALL,TMB201LLUC3/2A 92045 92045-1062 1
SEAL-OIL,TC20376.5 92049 92049-1257 2
COLLAR,AXLE,L=15.5 92152 92152-1196 2
COLLAR,FR BRAKE DRUM,L=59 92152A 92152-1197 1
WASHER,12.3X23X2.3 92200 92200-1004 1
NUT,12MM 92210 92210-7501 1
PIN-COTTER,3.0X25 550 550AA3025 1
BEARING-BALL,#6301UUC3 601 601B6301UU 1
