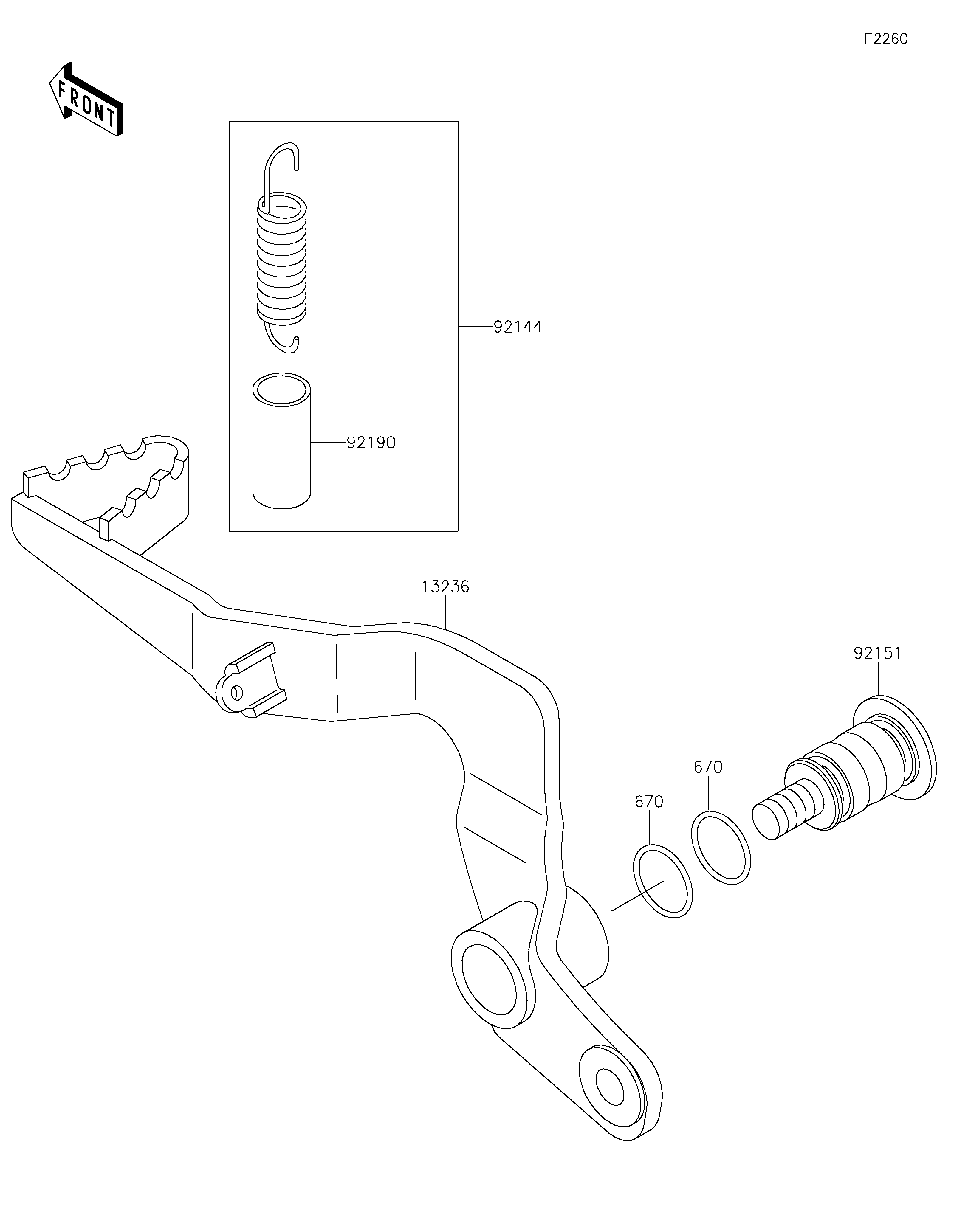

13236
92144
92151
92190
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,BRAKE PEDAL,STEEL 13236 13236-1369 1
SPRING,BRAKE PEDAL RETURN 92144 92144-1752 1
BOLT,BRAKE PEDAL,8MM 92151 92151-1572 1
TUBE,13X16X25 92190 92190-1488 1
O RING,12MM 670 670B2012 2
