14079
41080
43048
43056
43057
43080
43082
49006
49006A
92049
92093
92145
92150
92151
130

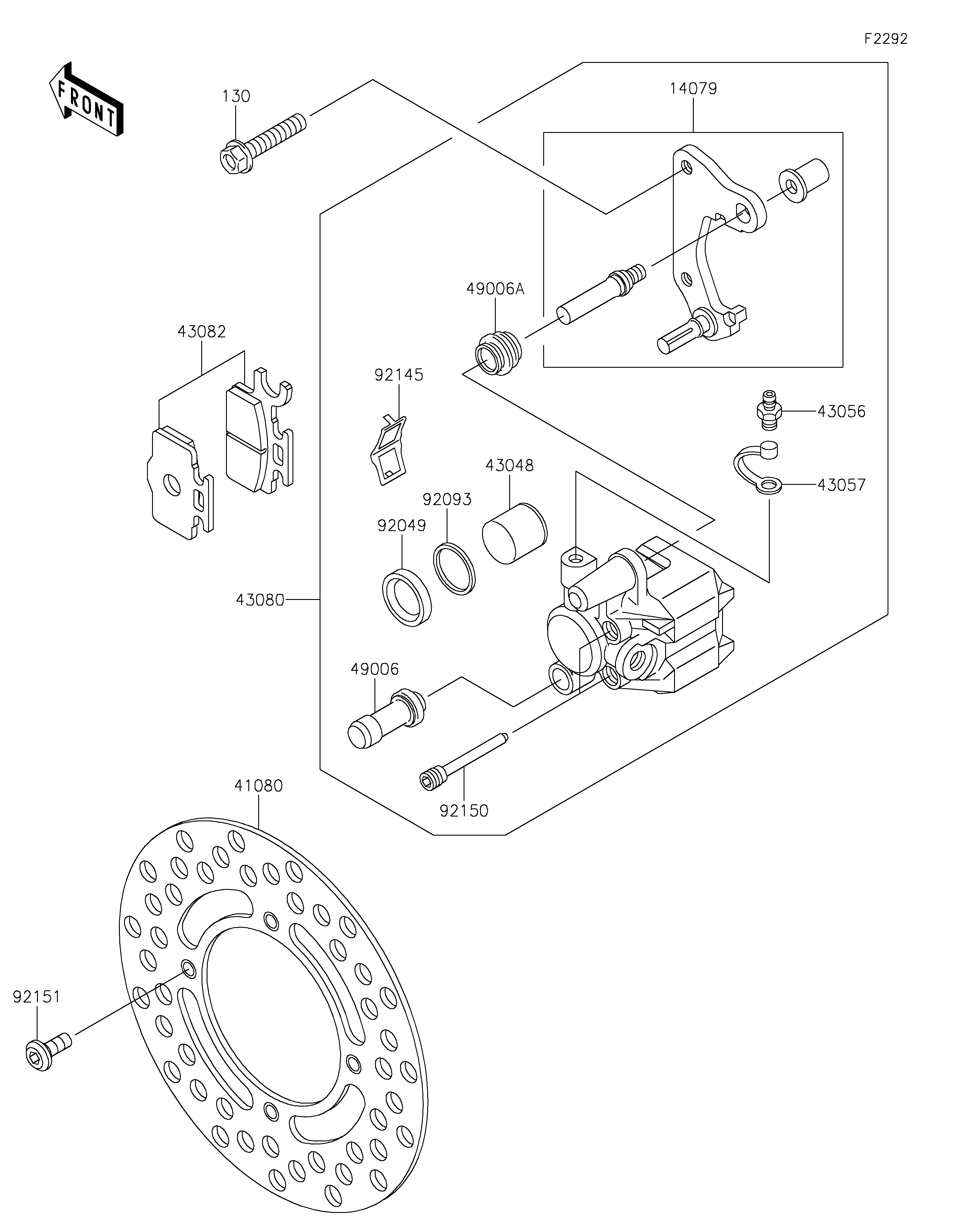

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,FRONT CALIPER 14079 14079-1130 1
DISC 41080 41080-1470 1
PISTON-CALIPER 43048 43048-1089 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,FR 43080 43080-0035 1
PAD-ASSY-BRAKE 43082 43082-0042 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
SEAL-OIL,PISTON 92049 92049-1331 1
SEAL,PISTON 92093 92093-1272 1
SPRING,PAD 92145 92145-1269 1
BOLT 92150 92150-1144 2
BOLT,DISC PLATE,6MM 92151 92151-1799 4
BOLT-FLANGED,8X40 130 130CA0840 2
