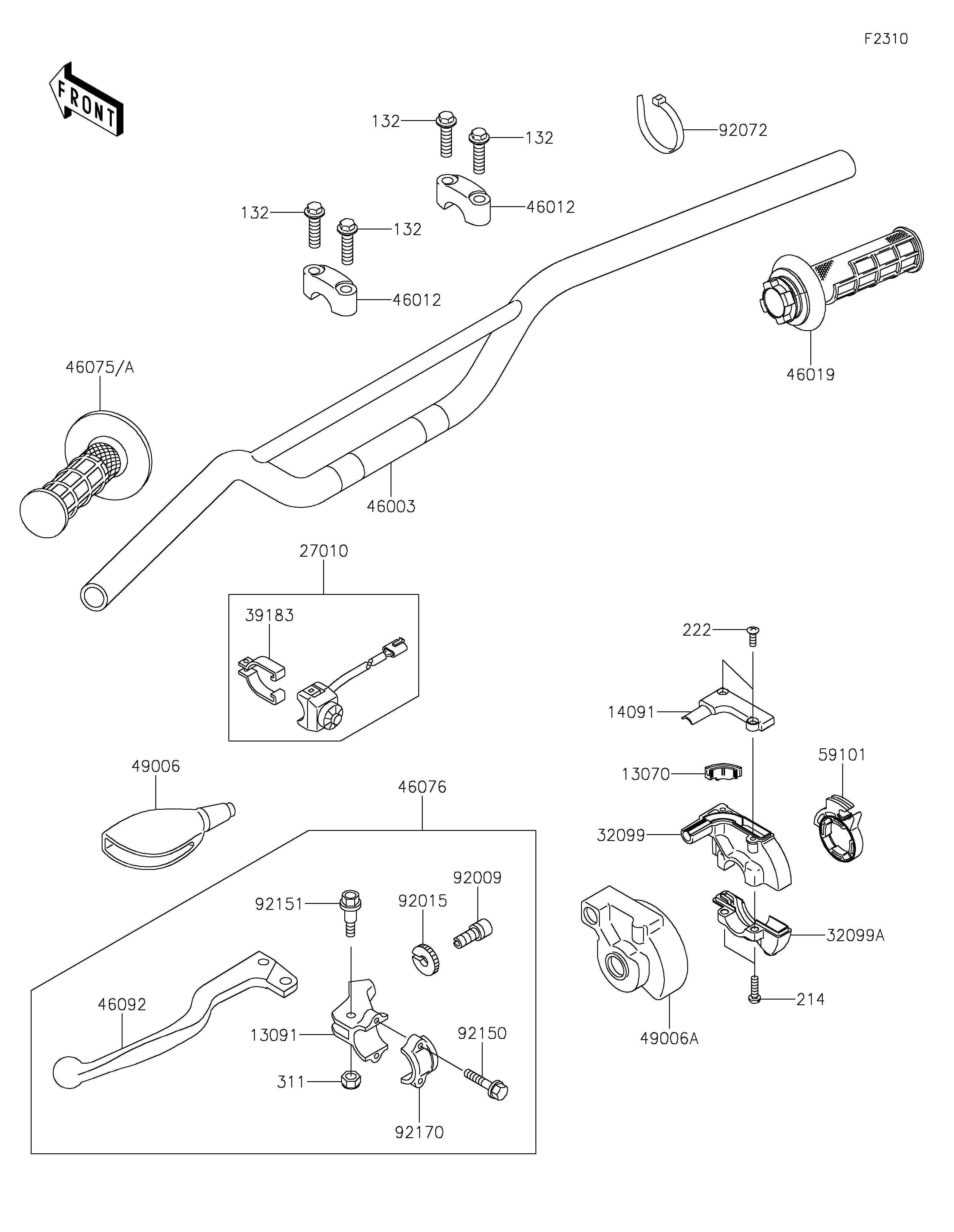

2021 KX™65 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13070
13091
14091
27010
32099
32099A
39183
46003
46012
46012
46019
46075A
46076
46092
49006
49006A
59101
92009
92015
92072
92150
92151
92170
132
132
132
132
214
222
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,THROTTLE 13070 13070-0083 1
HOLDER,CLUTCH LEVER 13091 13091-1728 1
COVER,THROTTLE CASE,UPP 14091 14091-0873 1
SWITCH,ENGINE STOP 27010 27010-0035 1
CASE,THROTTLE,UPP 32099 32099-0037 1
CASE,THROTTLE,LWR 32099A 32099-0038 1
BAND-ASSY,SWITCH 39183 39183-1059 1
HANDLE,F.S.BLACK 46003 46003-0030-18R 1
HOLDER-HANDLE,UPP,F.BLACK 46012 46012-0011-21 2
GRIP-ASSY,THROTTLE 46019 46019-0023 1
GRIP,LH 46075A 46075-0615 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1202 1
LEVER-GRIP,CLUTCH 46092 46092-1165 1
BOOT,LEVER HOLDER 49006 49006-1017 1
BOOT,THROTTLE CASE 49006A 49006-1097 1
REEL,THROTTLE 59101 59101-0003 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
NUT,CABLE ADJUST LOCK,8MM 92015 92015-1596 1
BAND,L=100 92072 92072-0055 1
BOLT 92150 92150-1474 2
BOLT,LEVER SET,5MM 92151 92151-1103 1
CLAMP,LEVER HOLDER 92170 92170-1226 1
BOLT-FLANGED-SMALL,8X30 132 132BC0830 4
SCREW-PAN+-,5X18 214 214AB0518 2
SCREW-CSK-RD-CROS,4X12 222 222AB0412 2
NUT-HEX,5MM 311 311AA0500 1
