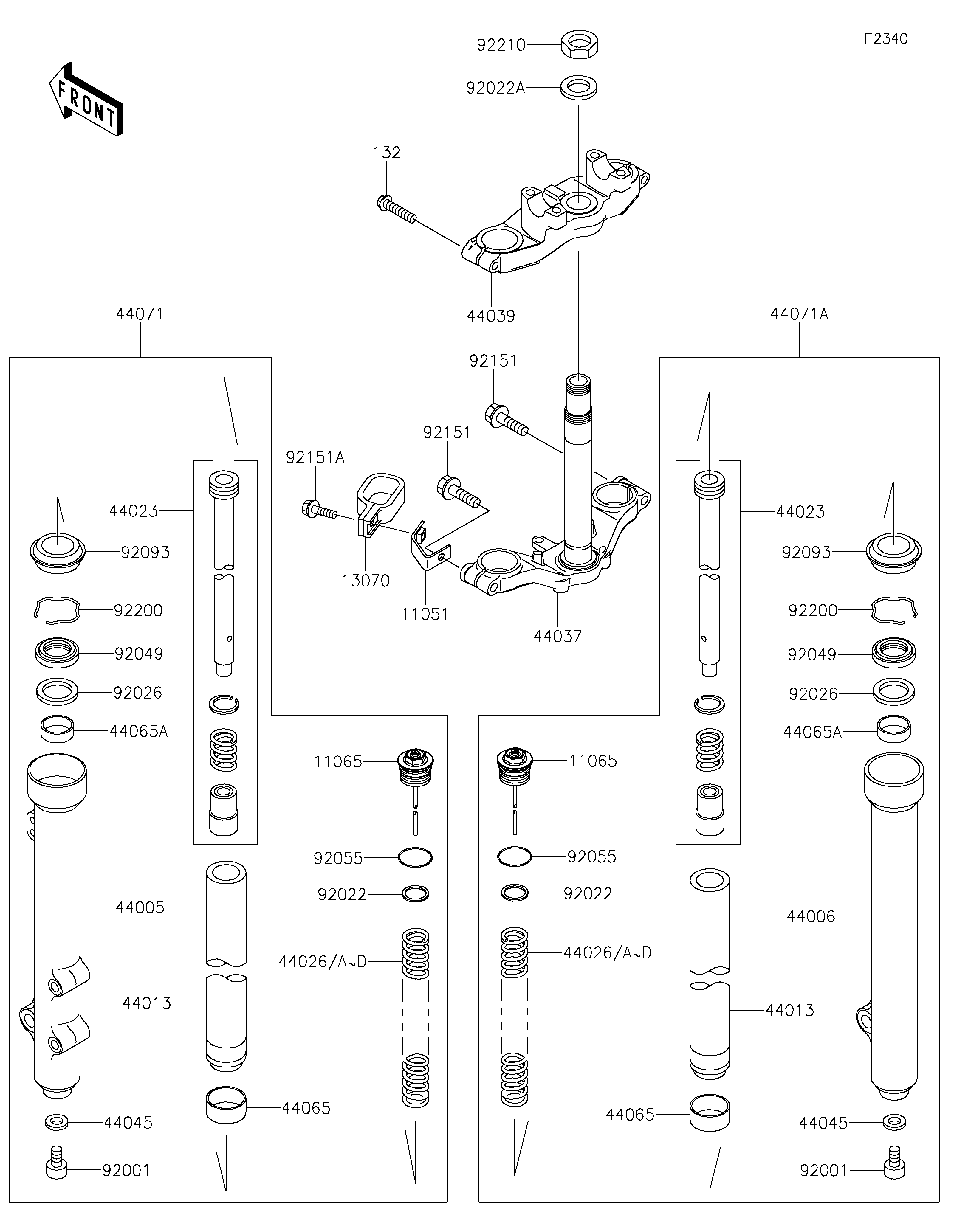

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11051
11065
11065
13070
44005
44006
44013
44013
44023
44023
44026
44026
44026A
44026A
44026B
44026B
44026C
44026C
44026D
44026D
44037
44039
44045
44045
44065
44065
44065A
44065A
44071
44071A
92001
92001
92022
92022
92022A
92026
92026
92049
92049
92055
92055
92093
92093
92151
92151
92151A
92200
92200
92210
132
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,BRAKE HOSE GUIDE | 11051 | 11051-1892 | 1 | ||
CAP,FORK TOP,G.B.GREEN | 11065 | 11065-0746-50Y | 2 | ||
GUIDE,BRAKE HOSE | 13070 | 13070-1349 | 1 | ||
PIPE-LEFT FORK OUTER,P.SILVER | 44005 | 44005-0042-458 | 1 | ||
PIPE-RIGHT FORK OUTER,P.SILVER | 44006 | 44006-0042-458 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-1496 | 2 | ||
CYLINDER-SET-FORK | 44023 | 44023-1161 | 2 | ||
SPRING-FRONT FORK,K=2.55N/MM | 44026 | 44026-1735 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=2.65N/MM | 44026A | 44026-1736 | 2 | ||
SPRING-FRONT FORK,K=2.75N/MM | 44026B | 44026-1737 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=2.84N/MM | 44026C | 44026-1738 | 2 | (OPTION) | |
SPRING-FRONT FORK,K=2.45N/MM | 44026D | 44026-1739 | 2 | (OPTION) | |
HOLDER-FORK UNDER,F.BLACK | 44037 | 44037-0023-21 | 1 | ||
HOLDER-FORK UPPER,F.BLACK | 44039 | 44039-0022-21 | 1 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
BUSHING-FRONT FORK,INNER PIPE | 44065 | 44065-1123 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-1133 | 2 | ||
DAMPER-ASSY,FORK,LH | 44071 | 44071-0803 | 1 | ||
DAMPER-ASSY,FORK,RH | 44071A | 44071-0804 | 1 | ||
BOLT,FORK CYLINDER | 92001 | 92001-1464 | 2 | ||
WASHER,FORK SPRING | 92022 | 92022-1841 | 2 | ||
WASHER,STEERING STEM | 92022A | 92022-1873 | 1 | ||
SPACER | 92026 | 92026-1365 | 2 | ||
SEAL-OIL,FORK OUTER TUBE | 92049 | 92049-1524 | 2 | ||
RING-O,FORK TOP | 92055 | 92055-1367 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1519 | 2 | ||
BOLT,FLANGED,10X35 | 92151 | 92151-1636 | 2 | ||
BOLT,FLANGED,5X16 | 92151A | 92151-1637 | 1 | ||
WASHER | 92200 | 92200-1496 | 2 | ||
NUT,STEERING STEM,22MM | 92210 | 92210-1521 | 1 | ||
BOLT-FLANGED-SMALL,8X35 | 132 | 132BA0835 | 2 |
