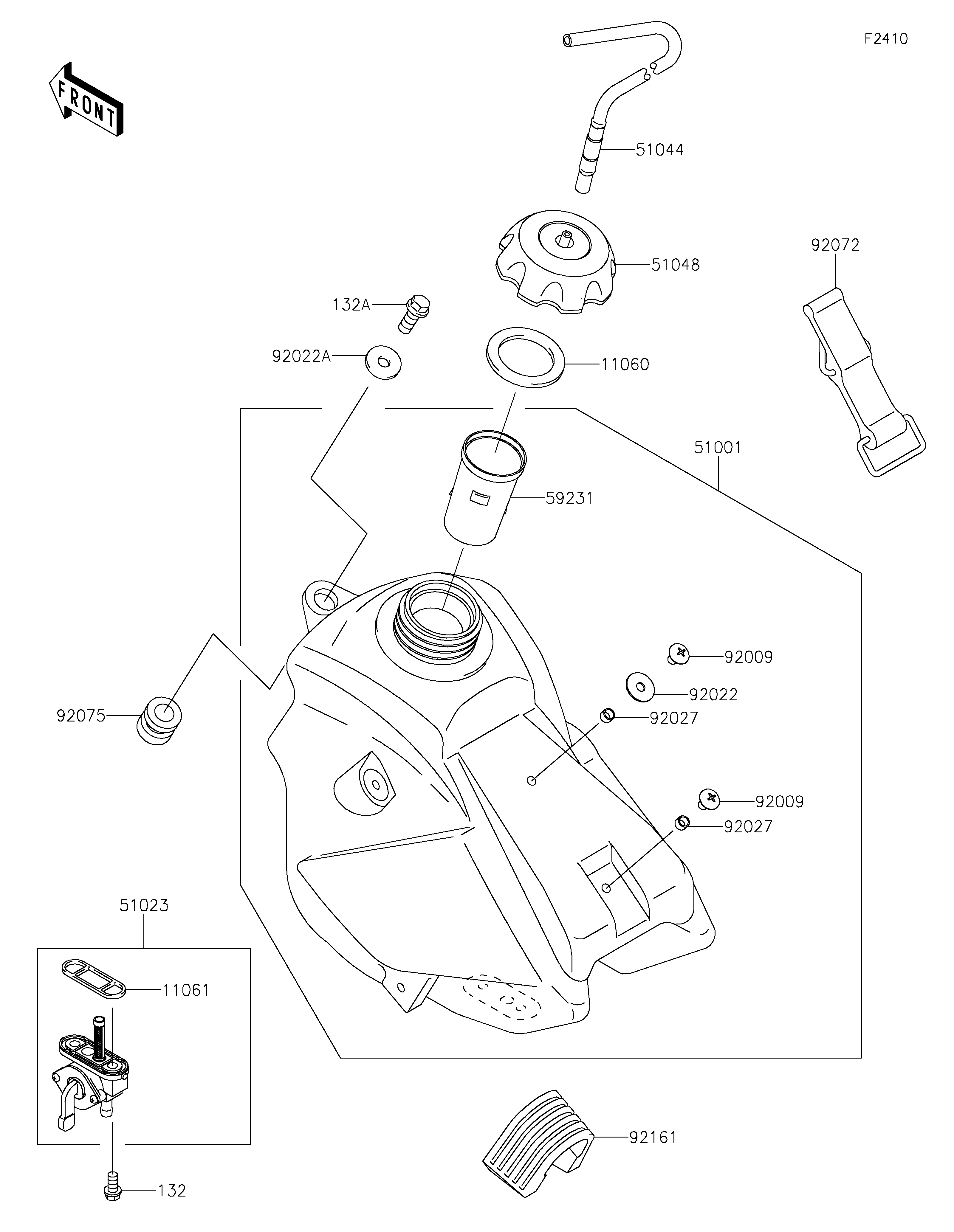

2021 KX™65 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
51001
51023
51044
51048
59231
92009
92009
92022
92022A
92027
92027
92072
92075
92161
132
132A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11060 11060-1340 1
GASKET,FUEL TAP 11061 11061-0181 1
TANK-COMP-FUEL,F.BLACK 51001 51001-1676-6Z 1
TAP-ASSY,FUEL 51023 51023-0024 1
TUBE-ASSY 51044 51044-0025 1
CAP-ASSY-TANK,FUEL 51048 51048-0014 1
FILLER 59231 59231-1096 1
SCREW,6X10 92009 92009-1530 2
WASHER,PLAIN,6.5X20X1 92022 92022-165 1
WASHER,6.5X24X2 92022A 92022-1690 1
COLLAR,6.2X7.8X5 92027 92027-2096 2
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1787 1
DAMPER,FUEL TANK,RR 92161 92161-1077 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 1
