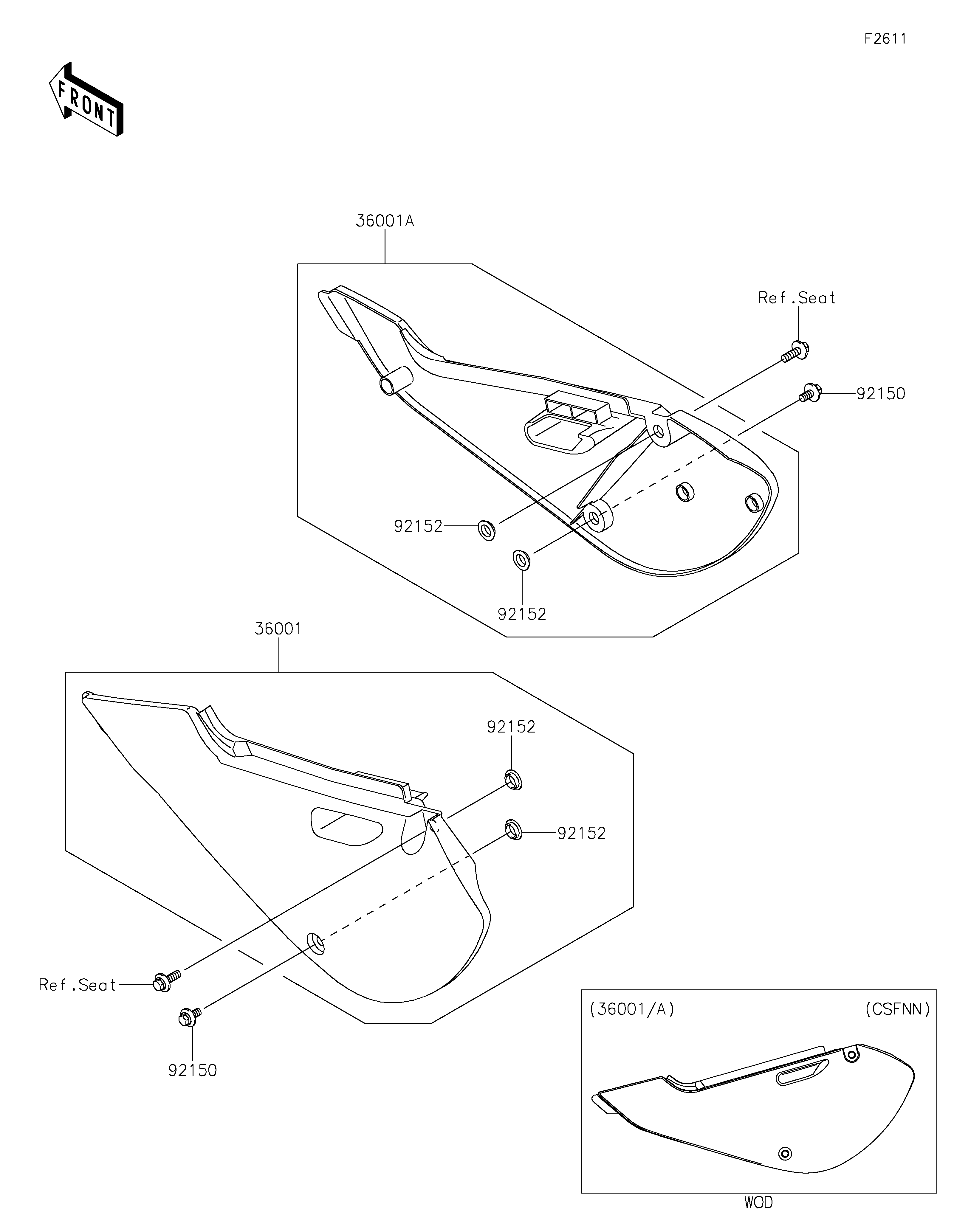

36001
36001A
92150
92150
92152
92152
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREEN 36001 36001-1639-290 1
COVER-SIDE,RH,L.GREEN 36001A 36001-1667-290 1
BOLT,6X14 92150 92150-1340 2
COLLAR,8.8X11.2X4 92152 92152-0909 4
