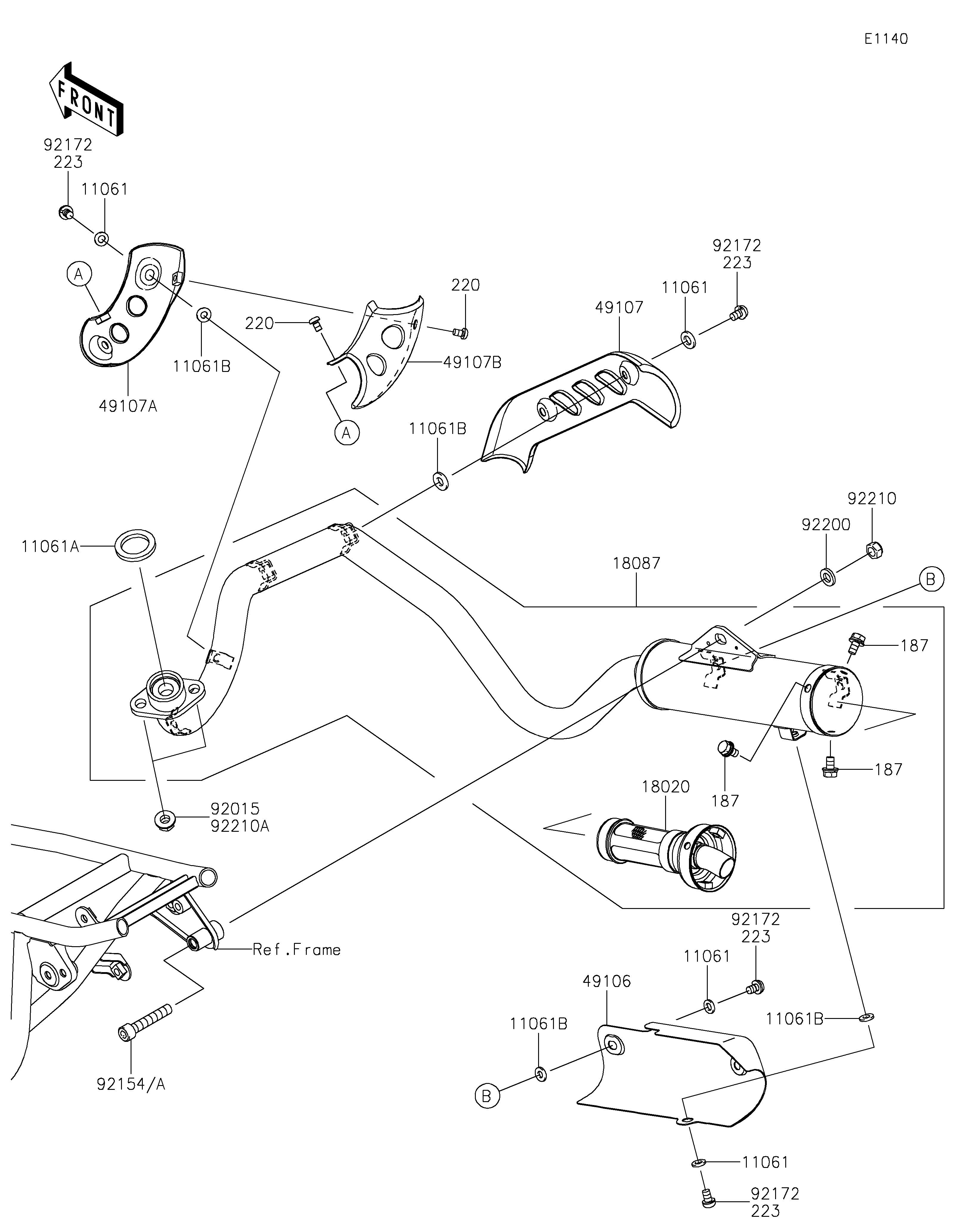

2024 KLX110 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061
11061
11061A
11061B
11061B
11061B
11061B
18020
18087
49106
49107
49107A
49107B
92015
92154
92154A
92172
92172
92172
92172
92200
92210
92210A
187
187
187
220
220
223
223
223
223
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,6.2X11.5X1.5 11061 11061-0372 7
GASKET,EXHAUST PIPE 11061A 11061-1112 1
GASKET 11061B 11061-1385 7
BAFFLE 18020 18020-0084 1
MUFFLER 18087 18087-0266 1
COVER-MUFFLER 49106 49106-0094 1
COVER-EXHAUST PIPE 49107 49107-1213 1
COVER-EXHAUST PIPE 49107A 49107-1217 1
COVER-EXHAUST PIPE 49107B 49107-1221 1
NUT,8MM 92015 92015-1402 2
BOLT,SOCKET,8X45 92154 92154-0361 1
BOLT,SOCKET,8X45 92154A 92154-2878 1
SCREW,6X10 92172 92172-1502 7
WASHER,8.1X15X2.3 92200 92200-0449 1
NUT,LOCK,8MM 92210 92210-0606 1
NUT,8MM 92210A 92210-1973 2
BOLT-UPSET-WSP,6X12 187 187AA0612 3
SCREW-PAN-CROS,5X8 220 220AB0508 2
SCREW-PAN-WS-CROS,6X10 223 223AB0610 7
