Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

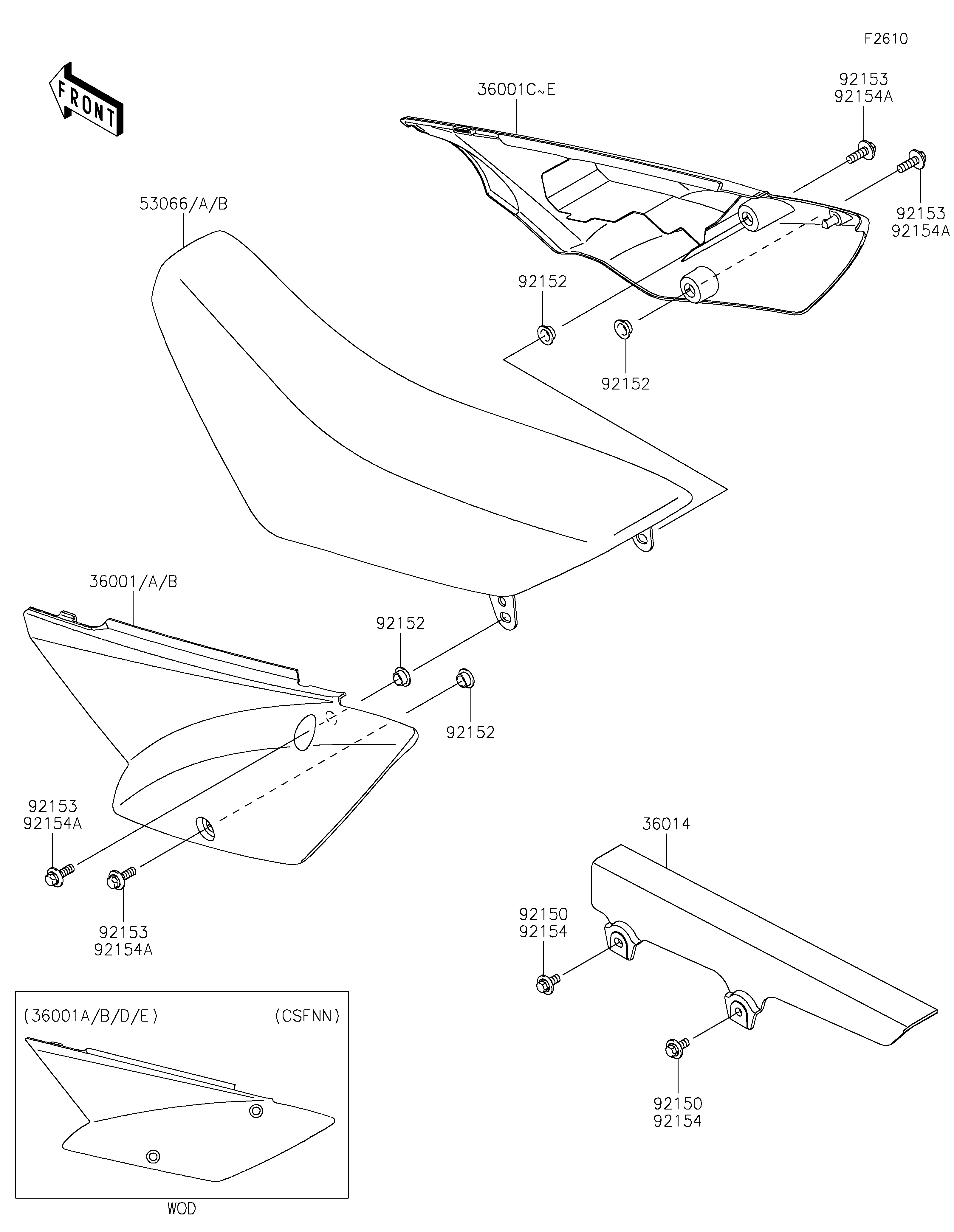

36001A
36001B
36001D
36001E
36014
53066
53066B
92150
92150
92152
92152
92152
92152
92153
92153
92153
92153
92154
92154
92154A
92154A
92154A
92154A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,L.GREEN | 36001A | 36001-0204-290 | 1 | ||
| COVER-SIDE,LH,B.GRAY | 36001B | 36001-0204-67A | 1 | ||
| COVER-SIDE,RH,L.GREEN | 36001D | 36001-0205-290 | 1 | ||
| COVER-SIDE,RH,B.GRAY | 36001E | 36001-0205-67A | 1 | ||
| CASE-CHAIN | 36014 | 36014-1258 | 1 | ||
| SEAT-ASSY,BLACK+GRN+BLK | 53066 | 53066-0719-49D | 1 | ||
| SEAT-ASSY,BLACK+GRY | 53066B | 53066-0719-73E | 1 | ||
| BOLT,FLANGED,6X14 | 92150 | 92150-1689 | 2 | ||
| COLLAR | 92152 | 92152-0789 | 4 | ||
| BOLT,6X20 | 92153 | 92153-0502 | 4 | ||
| BOLT,FLANGED,6X14 | 92154 | 92154-2867 | 2 | ||
| BOLT,6X20 | 92154A | 92154-7217 | 4 |
