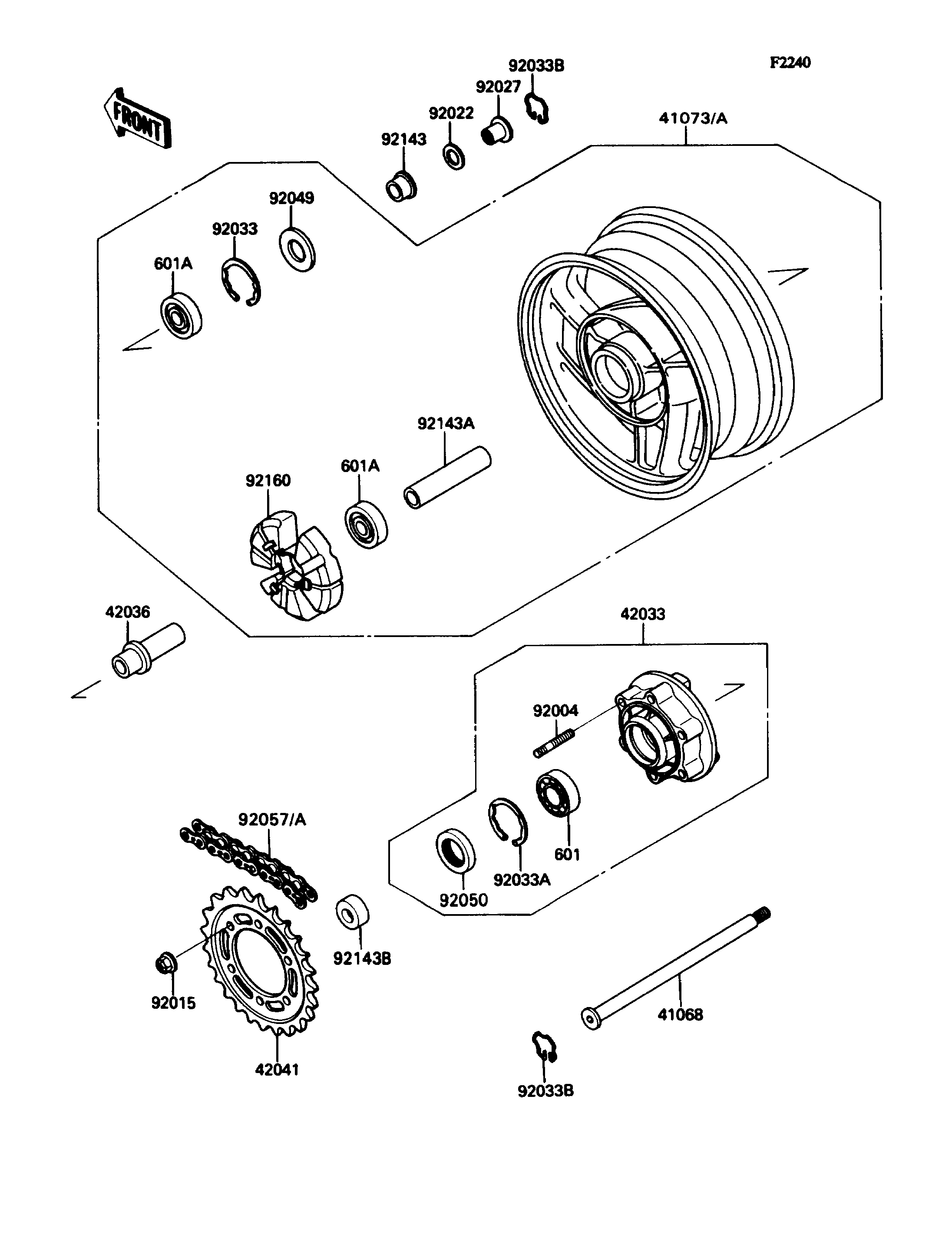

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE | 41068 | 41068-1312 | 1 | ||
WHEEL-ASSY,RR,G.GRAY | 41073 | 41073-1464-GE | 1 | ||
COUPLING-ASSY,RR HUB,G.GRAY | 42033 | 42033-1133-GD | 1 | ||
SLEEVE,RR AXLE,L=62 | 42036 | 42036-1229 | 1 | ||
SPROCKET-HUB,45T | 42041 | 42041-1283 | 1 | ||
STUD,10X24 | 92004 | 92004-1146 | 6 | ||
NUT,10MM | 92015 | 92015-1720 | 6 | ||
WASHER,23X32X2.3 | 92022 | 92022-1618 | 1 | ||
COLLAR,RR AXLE,L=28 | 92027 | 92027-1810 | 1 | ||
RING-SNAP,52MM | 92033 | 92033-1043 | 1 | ||
RING-SNAP,62MM | 92033A | 92033-1044 | 1 | ||
RING-SNAP,RR AXLE | 92033B | 92033-1156 | 2 | ||
SEAL-OIL,28X52X5 | 92049 | 92049-1061 | 1 | ||
SEAL-OIL,AJN40627 | 92050 | 92050-027 | 1 | ||
CHAIN,DRIVE,EK50UV-OX110L | 92057 | 92057-1298 | 1 | ||
COLLAR,L=23 | 92143 | 92143-1042 | 1 | ||
COLLAR,RR HUB,L=99 | 92143A | 92143-1384 | 1 | ||
COLLAR,RR AXLE,L=12 | 92143B | 92143-1385 | 1 | ||
DAMPER,SHOCK,RR HUB | 92160 | 92160-1051 | 1 | ||
BEARING-BALL,#6206UUC3 | 601 | 601B6206UU | 1 | ||
BEARING-BALL,#6304UUC3 | 601A | 601B6304UU | 2 |
AXLE | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WHEEL-ASSY,RR,G.GRAY | |
REF # | 41073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COUPLING-ASSY,RR HUB,G.GRAY | |
REF # | 42033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,RR AXLE,L=62 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET-HUB,45T | |
REF # | 42041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,10X24 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
WASHER,23X32X2.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,L=28 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,52MM | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,62MM | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,RR AXLE | |
REF # | 92033B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,28X52X5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,AJN40627 | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CHAIN,DRIVE,EK50UV-OX110L | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,L=23 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR HUB,L=99 | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,RR AXLE,L=12 | |
REF # | 92143B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,SHOCK,RR HUB | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6206UUC3 | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6304UUC3 | |
REF # | 601A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
