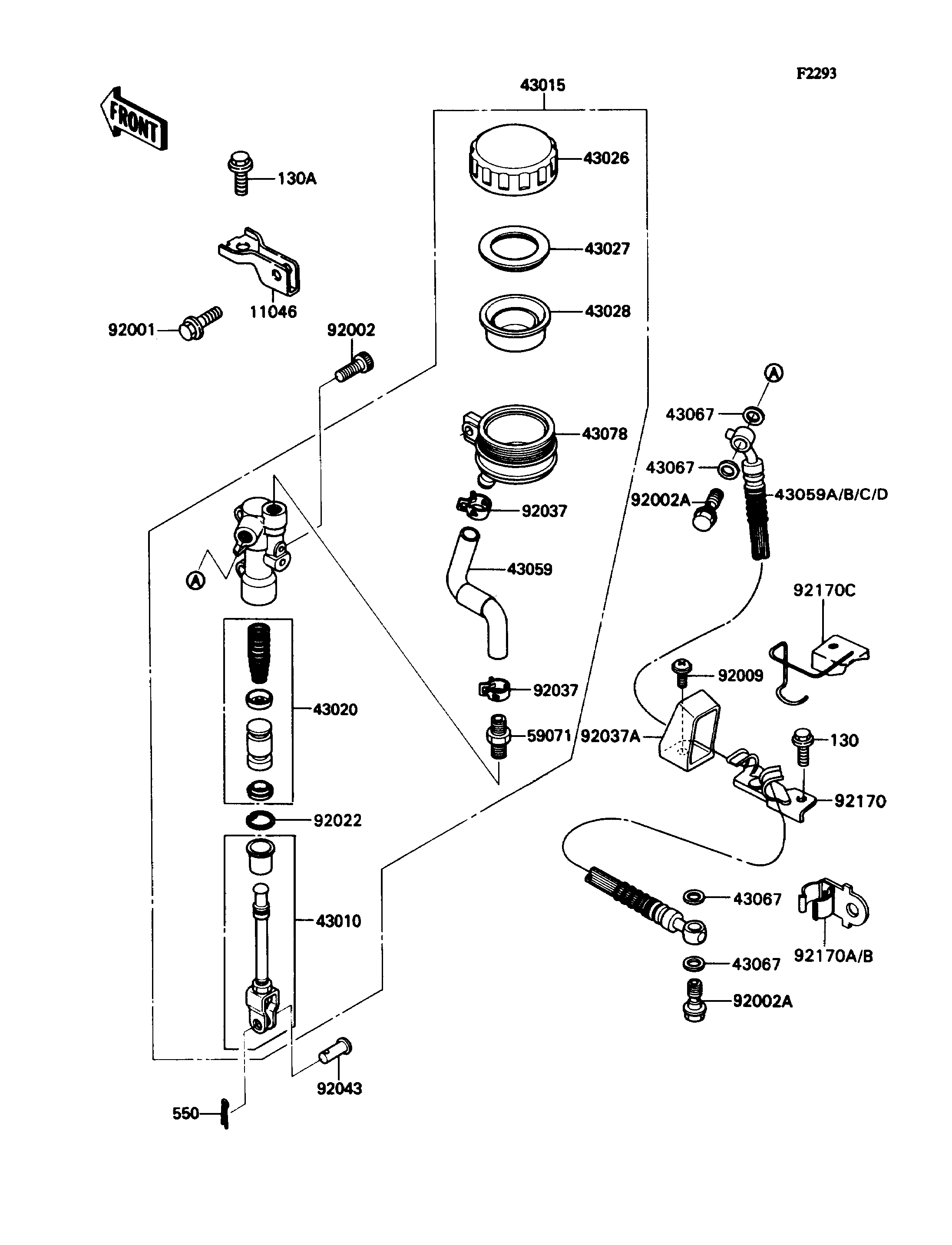

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11046 11046-1929 1
ROD-ASSY-BRAKE 43010 43010-1067 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1418 1
PISTON-COMP-BRAKE,RR 43020 43020-1067 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1566 1
HOSE-BRAKE,RR 43059A 43059-1588 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1058 1
JOINT,RR MASTER CYLINDER 59071 59071-1132 1
BOLT,6X20 92001 92001-1460 1
BOLT,SOCKET,8X25 92002 92002-1442 2
BOLT,OIL,L=23 92002A 92002-1888 2
SCREW,6X14 92009 92009-1288 1
WASHER,CIRCRIP 92022 92022-1601 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1896 1
PIN,8MM 92043 92043-1303 1
CLAMP,HOSE 92170 92170-1151 1
BOLT-FLANGED 130 130J0610 1
BOLT-FLANGED,6X14,BLACK 130A 130J0614 1
PIN-COTTER,2.0X15 550 550D2015 1
