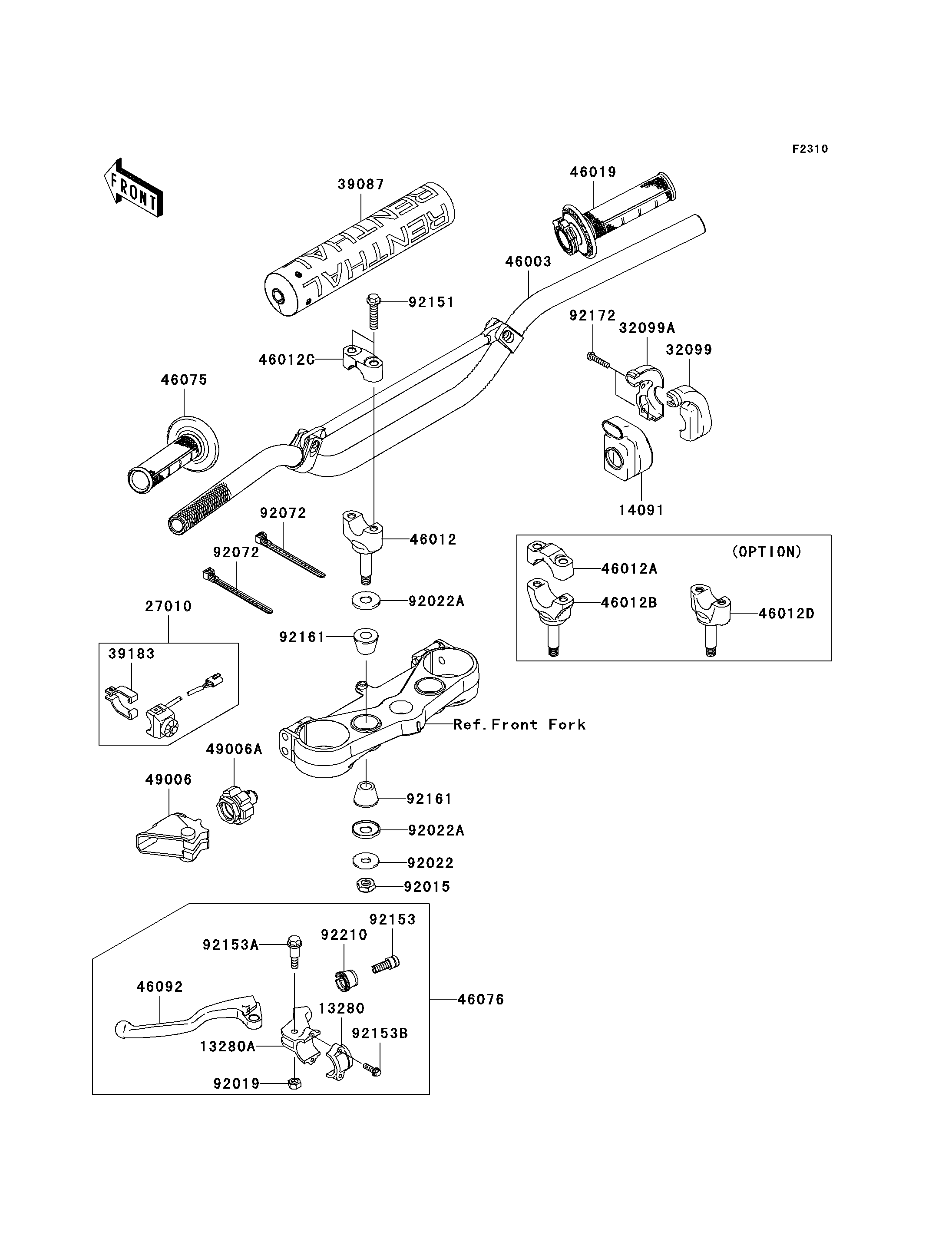

Parts Diagrams |
13280
13280A
14091
27010
32099
32099A
39087
39183
46003
46012
46012A
46012B
46012C
46012D
46019
46075
46076
46092
49006
49006A
92015
92019
92022
92022A
92022A
92072
92072
92151
92153
92153A
92153B
92161
92161
92172
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER | 13280 | 13280-0055 | 1 | ||
HOLDER,CLUTCH LEVER | 13280A | 13280-0118 | 1 | ||
COVER,THROTTLE CASE | 14091 | 14091-0182 | 1 | ||
SWITCH,ENGINE STOP | 27010 | 27010-0047 | 1 | ||
CASE,THROTTLE,RR | 32099 | 32099-0002 | 1 | ||
CASE,THROTTLE,FR | 32099A | 32099-0003 | 1 | ||
PAD-HANDLE | 39087 | 39087-0004 | 1 | ||
BAND-ASSY,ENGINE STOP SWITCH | 39183 | 39183-1059 | 1 | ||
HANDLE | 46003 | 46003-0077 | 1 | ||
HOLDER-HANDLE,LWR,F.BLACK | 46012 | 46012-0013-21 | 2 | ||
HOLDER-HANDLE,UPP,FAT BAR,BLK | 46012A | 46012-0020-21 | 2 | (OPTION) | |
HOLDER-HANDLE,LWR,FAT BAR,BLK | 46012B | 46012-0021-21 | 2 | (OPTION) | |
HOLDER-HANDLE,UPP,F.BLACK | 46012C | 46012-0023-21 | 2 | ||
HOLDER-HANDLE,LWR,F.BLACK | 46012D | 46012-0048-21 | 2 | (OPTION) | |
GRIP-ASSY,THROTTLE | 46019 | 46019-0018 | 1 | ||
GRIP,LH | 46075 | 46075-0044 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-0055 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-0016 | 1 | ||
BOOT,CLUTCH LEVER | 49006 | 49006-0030 | 1 | ||
BOOT,CLUTCH CABLE | 49006A | 49006-0060 | 1 | ||
NUT,LOCK,10MM | 92015 | 92015-1962 | 2 | ||
NUT,LOCK,6MM | 92019 | 92019-008 | 1 | ||
WASHER,10.2X28X2 | 92022 | 92022-1088 | 2 | ||
WASHER | 92022A | 92022-1737 | 4 | ||
BAND,L=100 | 92072 | 92072-0055 | 2 | ||
BOLT,FLANGED,8X35 | 92151 | 92151-1537 | 4 | ||
BOLT,BOLT ADJUSTING | 92153 | 92153-0773 | 1 | ||
BOLT | 92153A | 92153-0807 | 1 | ||
BOLT,5X16 | 92153B | 92153-0808 | 2 | ||
DAMPER,HANDLE HOLDER | 92161 | 92161-0113 | 4 | ||
SCREW,5X20 | 92172 | 92172-0069 | 2 | ||
NUT,BOLT WIRE ADJUSTING | 92210 | 92210-0167 | 1 |
HOLDER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH LEVER | |
REF # | 13280A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,THROTTLE CASE | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,ENGINE STOP | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,RR | |
REF # | 32099 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,THROTTLE,FR | |
REF # | 32099A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD-HANDLE | |
REF # | 39087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-ASSY,ENGINE STOP SWITCH | |
REF # | 39183 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLE | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,LWR,F.BLACK | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,UPP,FAT BAR,BLK | |
REF # | 46012A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (OPTION) |
HOLDER-HANDLE,LWR,FAT BAR,BLK | |
REF # | 46012B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (OPTION) |
HOLDER-HANDLE,UPP,F.BLACK | |
REF # | 46012C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE,LWR,F.BLACK | |
REF # | 46012D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | (OPTION) |
GRIP-ASSY,THROTTLE | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,CLUTCH | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CLUTCH LEVER | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,CLUTCH CABLE | |
REF # | 49006A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM | |
REF # | 92019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.2X28X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND,L=100 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X35 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,BOLT ADJUSTING | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X16 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,HANDLE HOLDER | |
REF # | 92161 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW,5X20 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,BOLT WIRE ADJUSTING | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
