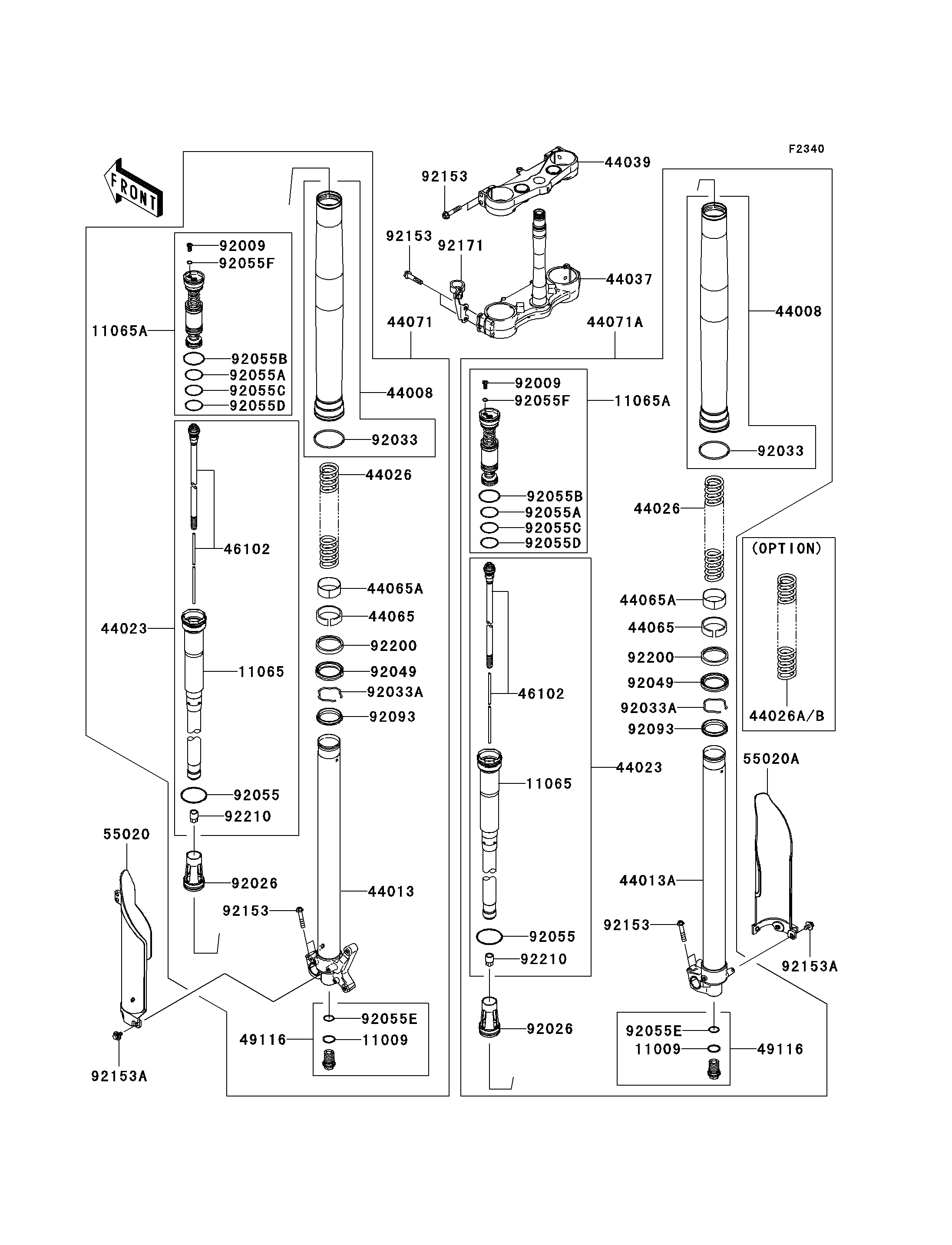

2009 KX™450F - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11065
11065
11065A
11065A
44008
44008
44013
44013A
44023
44023
44026
44026
44026A
44026B
44037
44039
44065
44065
44065A
44065A
44071
44071A
46102
46102
49116
49116
55020
55020A
92009
92009
92026
92026
92033
92033
92033A
92033A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92055C
92055C
92055D
92055D
92055E
92055E
92055F
92055F
92093
92093
92153
92153
92153
92153
92153A
92153A
92171
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP,CYLINDER COMP 11065 11065-0231 2
CAP,BASE VALVE 11065A 11065-0277 2
PIPE-FORK OUTER 44008 44008-0049 2
PIPE-FORK INNER,LH 44013 44013-0119 1
PIPE-FORK INNER,RH 44013A 44013-0120 1
CYLINDER-SET-FORK 44023 44023-0069 2
SPRING-FRONT FORK,K=4.6N/MM 44026 44026-0096 2
SPRING-FRONT FORK,K=4.5N/MM 44026A 44026-0105 2 (OPTION)
SPRING-FRONT FORK,K=4.7N/MM 44026B 44026-0106 2 (OPTION)
HOLDER-FORK UNDER 44037 44037-0095 1
HOLDER-FORK UPPER 44039 44039-0078 1
BUSHING-FRONT FORK 44065 44065-0021 2
BUSHING-FRONT FORK 44065A 44065-0022 2
DAMPER-ASSY,FORK,LH 44071 44071-0531 1
DAMPER-ASSY,FORK,RH 44071A 44071-0532 1
ROD,PISTON 46102 46102-0135 2
VALVE-ASSY 49116 49116-0020 2
GUARD,FORK,LH,EBONY 55020 55020-0441-6C 1
GUARD,FORK,RH,EBONY 55020A 55020-0442-6C 1
SCREW 92009 92009-1884 2
SPACER 92026 92026-0097 2
RING-SNAP 92033 92033-0049 2
RING-SNAP 92033A 92033-1329 2
SEAL-OIL 92049 92049-0117 2
RING-O 92055 92055-0104 2
RING-O 92055A 92055-0105 2
RING-O 92055B 92055-0106 2
RING-O 92055C 92055-0116 2
RING-O 92055D 92055-0117 2
RING-O 92055E 92055-1156 2
RING-O,2.8X6.6X1.9 92055F 92055-1441 2
SEAL,FORK OUTER TUBE 92093 92093-1566 2
BOLT,8X40 92153 92153-0020 12
BOLT,FLANGED,6X14 92153A 92153-0936 6
CLAMP,BRAKE HOSE 92171 92171-1983 1
WASHER 92200 92200-0067 2
NUT 92210 92210-0337 2
