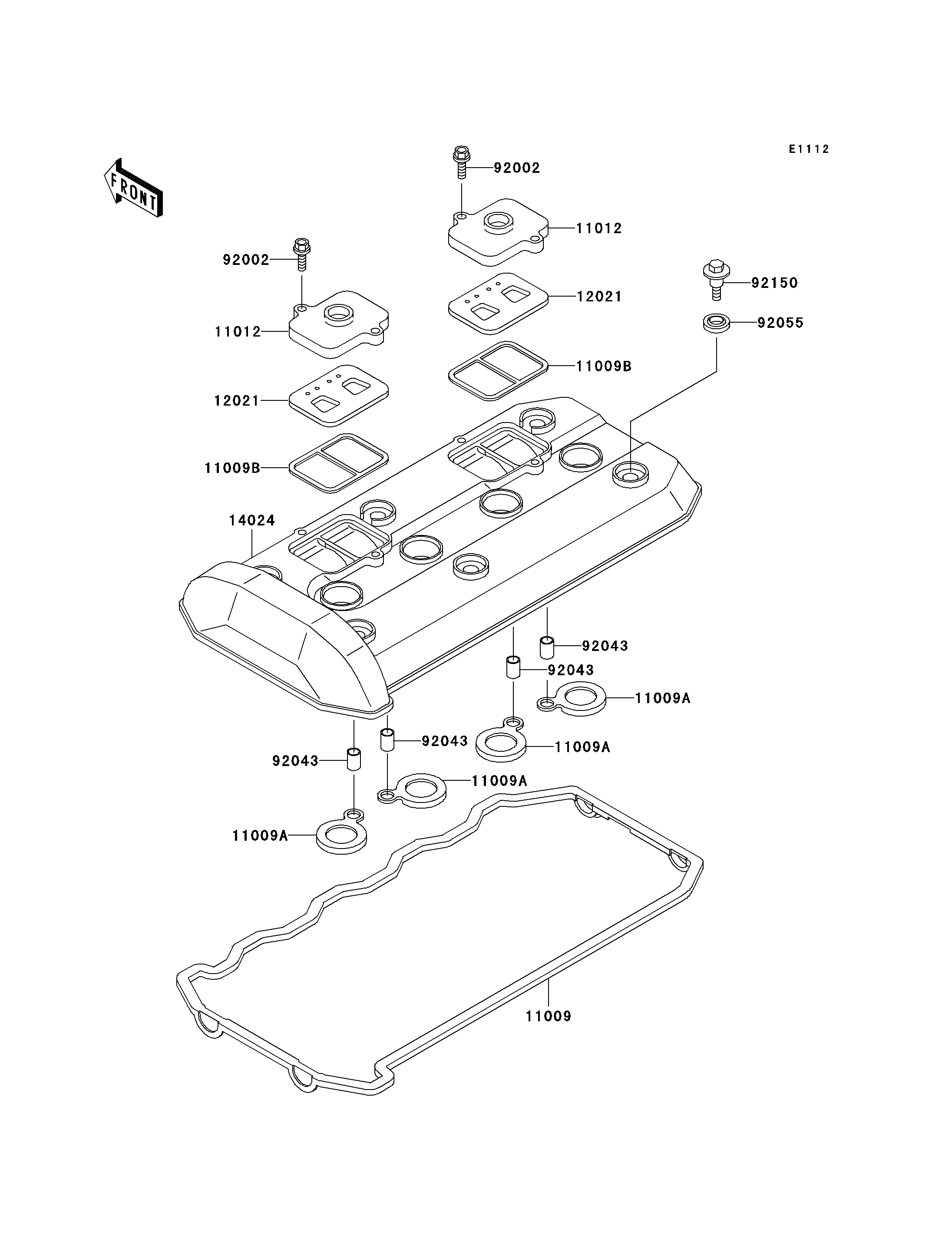

1995 Ninja® ZX™-11 - Cylinder Head Cover
11009
11009A
11009A
11009A
11009A
11009B
11009B
11012
11012
12021
12021
14024
92002
92002
92043
92043
92043
92043
92055
92150
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,HEAD COVER | 11009 | 11009-1724 | 1 | ||
GASKET,SPARK PLUG | 11009A | 11009-1725 | 4 | ||
GASKET,REED VALVE | 11009B | 11009-1857 | 2 | ||
CAP,REED VALVE | 11012 | 11012-1532 | 2 | ||
VALVE-ASSY-REED | 12021 | 12021-1053 | 2 | ||
COVER,HEAD | 14024 | 14024-1628 | 1 | ||
BOLT,6X22 | 92002 | 92002-1068 | 4 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 4 | ||
RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 6 | ||
BOLT,HEAD COVER | 92150 | 92150-1447 | 6 |
GASKET,HEAD COVER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,SPARK PLUG | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET,REED VALVE | |
REF # | 11009B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP,REED VALVE | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE-ASSY-REED | |
REF # | 12021 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER,HEAD | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X22 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,8.2X10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O,HEAD COVER BOLT | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,HEAD COVER | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
