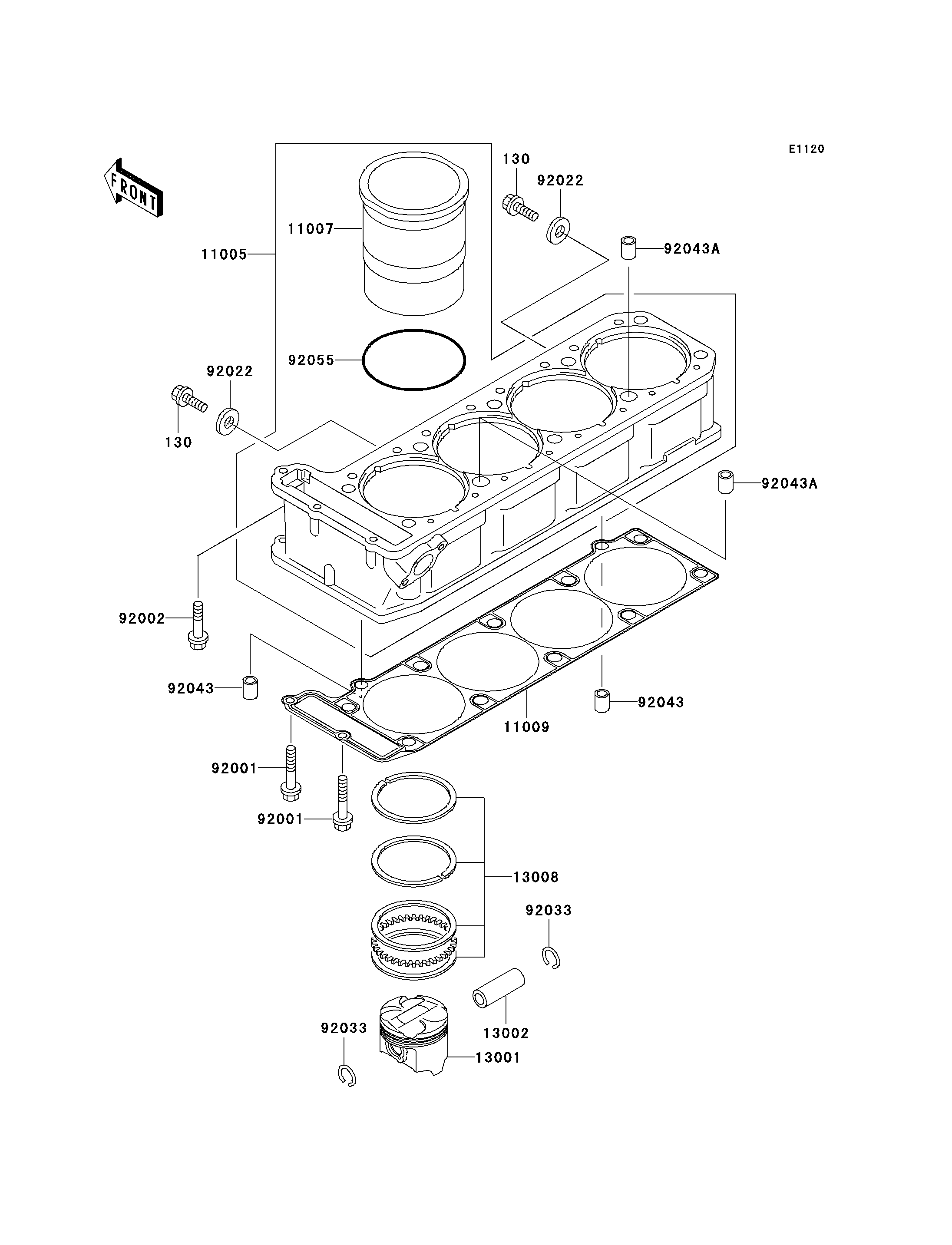

1995 Ninja® ZX™-11 - Cylinder/Piston(s)
130
130
11005
11007
11009
13001
13002
13008
92001
92001
92002
92022
92022
92033
92033
92043
92043
92043A
92043A
92055
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10,BLACK | 130 | 130C0610 | 2 | ||
CYLINDER-ENGINE | 11005 | 11005-1615 | 1 | ||
LINER-CYLINDER | 11007 | 11007-1114 | 4 | ||
GASKET,CYLINDER BASE | 11009 | 11009-1847 | 1 | ||
PISTON-ENGINE | 13001 | 13001-1397 | 4 | ||
PIN-PISTON | 13002 | 13002-1058 | 4 | ||
RING-SET-PISTON | 13008 | 13008-1152 | 4 | ||
BOLT,6X38 | 92001 | 92001-1899 | 2 | ||
BOLT,6X30 | 92002 | 92002-1138 | 1 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
RING-SNAP,20.5X1.2 | 92033 | 92033-1099 | 8 | ||
PIN,8.2X10X14 | 92043 | 92043-1264 | 2 | ||
PIN,11.5X14X14 | 92043A | 92043-1279 | 2 | ||
RING-O,82.6X2.4 | 92055 | 92055-1465 | 4 |
