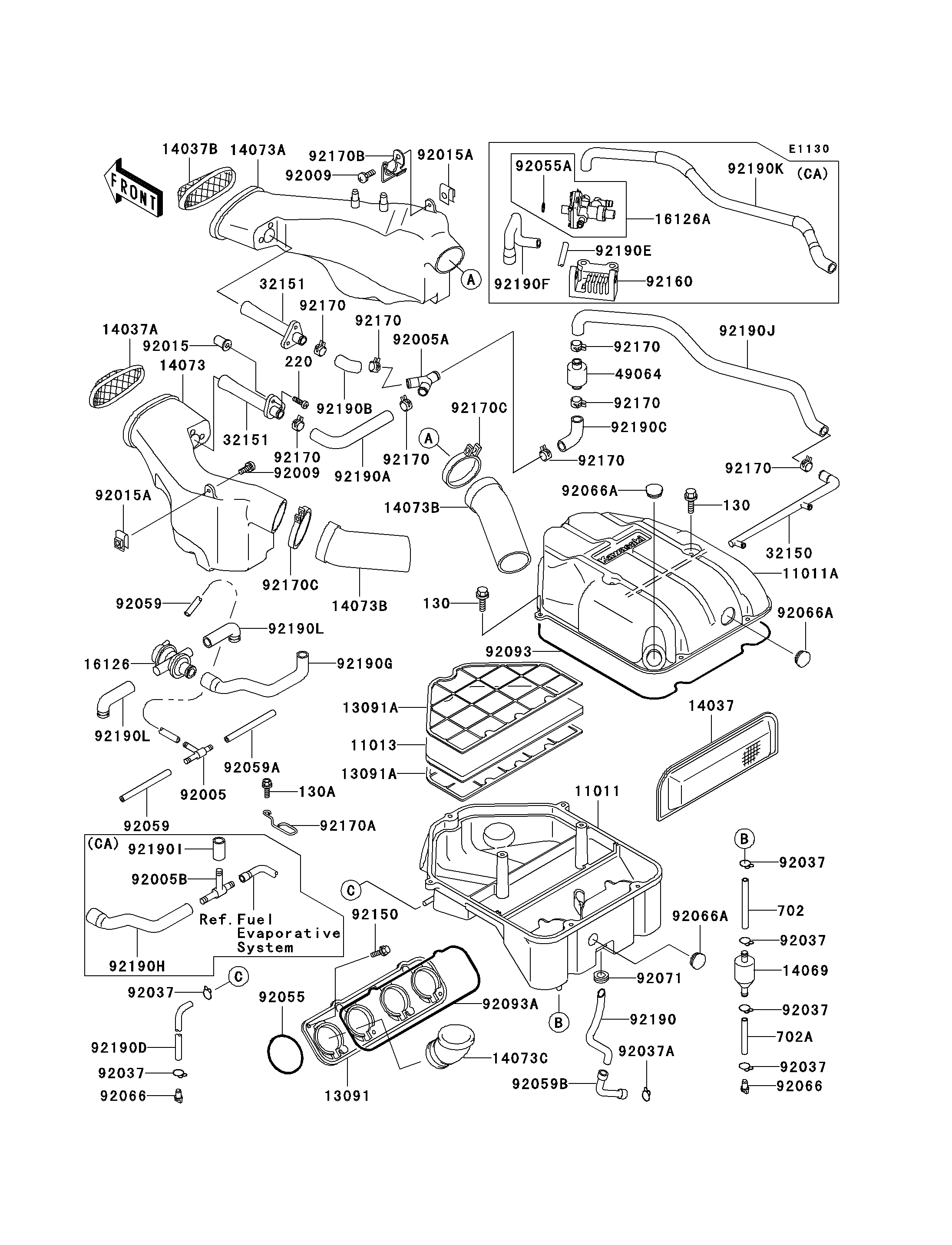

1995 Ninja® ZX™-11 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11011
11011A
11011A
11013
11013
13091
13091
13091A
13091A
13091A
13091A
14037
14037
14037A
14037A
14037B
14037B
14069
14069
14073
14073
14073A
14073A
14073B
14073B
14073B
14073B
14073C
14073C
16126
16126
32150
32150
32151
32151
32151
32151
49064
49064
92005
92005
92005A
92005A
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92055
92055
92059
92059
92059
92059
92059A
92059A
92059B
92059B
92066
92066
92066
92066
92066A
92066A
92066A
92066A
92066A
92066A
92071
92071
92093
92093
92093A
92093A
92150
92150
130
130
130
130
130A
130A
220
220
702
702
702A
702A
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170B
92170B
92170C
92170C
92170C
92170C
92190
92190
92190A
92190A
92190B
92190B
92190C
92190C
92190D
92190D
92190L
92190L
92190L
92190L
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,LWR 11011 11011-1396 1
CASE-AIR FILTER,UPP 11011A 11011-1397 1
ELEMENT-AIR FILTER 11013 11013-1227 1
HOLDER,CARBURETOR 13091 13091-1818 1
HOLDER,ELEMENT 13091A 13091-1819 2
SCREEN,AIR FILTER 14037 14037-1168 1
SCREEN,AIR DUCT,LH 14037A 14037-1169 1
SCREEN,AIR DUCT,RH 14037B 14037-1170 1
BREATHER 14069 14069-1051 1
DUCT,AIR INTAKE,LH 14073 14073-1552 1
DUCT,AIR INTAKE,RH 14073A 14073-1553 1
DUCT,AIR FILTER 14073B 14073-1554 2
DUCT,AIR FILTER 14073C 14073-1575 4
VALVE,AIR SWITCH 16126 16126-1144 1
PIPE 32150 32150-1820 1
PIPE,AIR VENT 32151 32151-1478 2
FILTER-AIR 49064 49064-1055 1
FITTING,TUBE,T-TYPE 92005 92005-1017 1
FITTING,Y-TIPE 92005A 92005-1250 1
SCREW,5X16 92009 92009-1654 2
NUT,WELL,5MM 92015 92015-1640 4
NUT,5MM 92015A 92015-1798 2
CLAMP,TUBE 92037 92037-147 8
CLAMP,TUBE 92037A 92037-213 1
RING-O,67.7X3.1 92055 92055-1434 4
TUBE,4X9X190 92059 92059-1032 2
TUBE,FUEL,4X9X140 92059A 92059-1230 1
TUBE 92059B 92059-1551 1
PLUG,DRAIN 92066 92066-1211 3
PLUG 92066A 92066-1389 3
GROMMET 92071 92071-1165 1
SEAL,AIR FILTER CASE 92093 92093-1349 1
SEAL,AIR FILTER 92093A 92093-1350 1
BOLT,5X16 92150 92150-1363 8
BOLT-FLANGED,6X16 130 130H0616 7
BOLT-FLANGED 130A 130J0610 2
SCREW-PAN-CROS 220 220C0520 4
TUBE-RUBBER 702 702A07200 1
TUBE-RUBBER,7X10X280 702A 702A07280 1
CLAMP 92170 92170-1060 8
CLAMP 92170A 92170-1191 2
CLAMP,AIR DUCT 92170B 92170-1390 1
CLAMP,65MM 92170C 92170-1526 2
TUBE,BLOWBY 92190 92190-1077 1
TUBE,AIR PIPE,LH 92190A 92190-1352 1
TUBE,AIR PIPE,RH 92190B 92190-1353 1
TUBE,VALVE-HOLDER 92190C 92190-1354 1
TUBE,DIRT SIDE 92190D 92190-1372 2
TUBE 92190L 92190-1436 2
VALVE,CANISTER 16126A 16126-1275 1 CA
FITTING,T-TYPE 92005B 92005-1252 1 CA
RING-O 92055A 92055-1524 1 CA
DAMPER,VALVE 92160 92160-1241 1 CA
TUBE,VALVE-HOLDER 92190E 92190-1380 1 CA
TUBE,FILTER-VALVE 92190F 92190-1381 1 CA
TUBE,VALVE-AIR FILTER 92190G 92190-1419 1 CNUS
TUBE,SWITCH-FITTING 92190H 92190-1420 1 CA
TUBE,FITTING-FILTER CASE 92190I 92190-1421 1 CA
TUBE,FILTER-CARBURETOR 92190J 92190-1432 1 CNUS
TUBE,VALVE-CARBURETOR 92190K 92190-1433 1 CA
