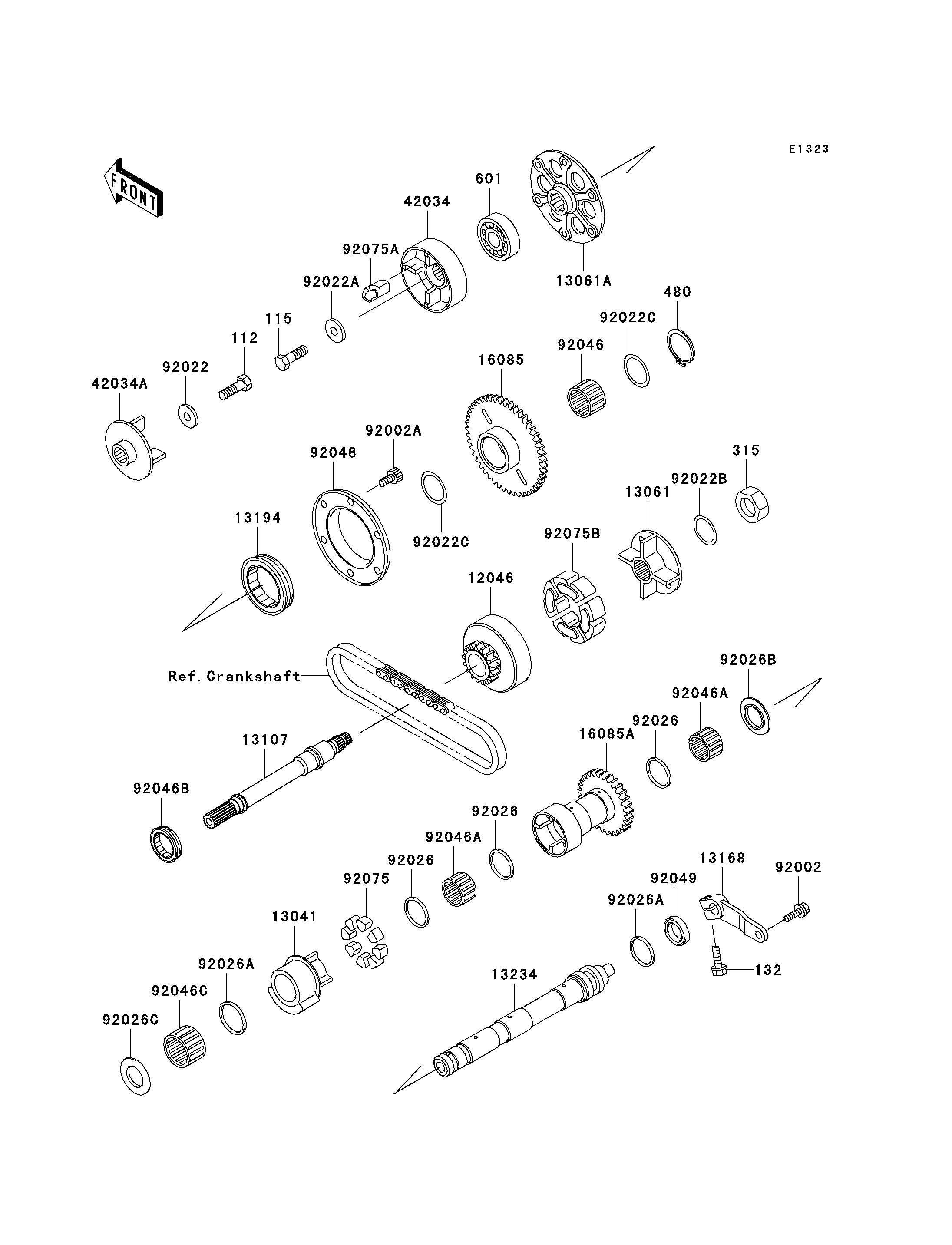

1995 Ninja® ZX™-11 - Balancer

DOWNLOAD PDF
SELECT A NEW PART
112
115
132
315
480
601
12046
13041
13061
13061A
13107
13168
13194
13234
16085
16085A
42034
42034A
92002
92002A
92022
92022A
92022B
92022C
92022C
92026
92026
92026
92026A
92026A
92026B
92026C
92046
92046A
92046A
92046B
92046C
92048
92049
92075
92075A
92075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0616 1
BOLT-SMALL-UPSET 115 115G0820 1
BOLT-FLANGED-SMALL 132 132J0620 1
NUT-HEX-FINE 315 315G1600 1
CIRCLIP-TYPE-C,25MM 480 480J2500 1
BEARING-BALL,#6203 601 601A6203 1
SPROCKET,GENERATOR 12046 12046-1083 1
BALANCER 13041 13041-1092 1
BOSS,SPROCKET 13061 13061-1183 1
BOSS 13061A 13061-1264 1
SHAFT 13107 13107-1108 1
LEVER,BALANCER 13168 13168-1529 1
CLUTCH-ONEWAY 13194 13194-1086 1
SHAFT-COMP,BALNCER 13234 13234-1072 1
GEAR,ONEWAY CLUTCH 16085 16085-1173 1
GEAR,BALANCER 16085A 16085-1275 1
COUPLING 42034 42034-1055 1
COUPLING 42034A 42034-1056 1
BOLT,FLANGED,6X16 92002 92002-1439 1
BOLT,SOCKET,6X12 92002A 92002-1796 6
WASHER,6X19.5X2 92022 92022-1517 1
WASHER,8X22X3 92022A 92022-1518 1
WASHER,16X26X2 92022B 92022-1519 1
WASHER,25.3X32X0.5 92022C 92022-225 2
SPACER,21.3X24.3X1.5 92026 92026-1213 3
SPACER,21.3X26X1 92026A 92026-1223 2
SPACER 92026B 92026-1265 1
SPACER 92026C 92026-1271 1
BEARING-NEEDLE,K253020S 92046 92046-1022 1
BEARING-NEEDLE,K21X25X17V2 92046A 92046-1105 2
BEARING-NEEDLE,RNA4903 92046B 92046-1109 1
BEARING-NEEDLE 92046C 92046-1155 1
RACE,ONEWAY CLUTCH 92048 92048-1068 1
SEAL-OIL,S192705 92049 92049-1174 1
DAMPER,BALANCER 92075 92075-1709 8
DAMPER,COUPLING 92075A 92075-1790 4
DAMPER,COUPLING 92075B 92075-1810 4
