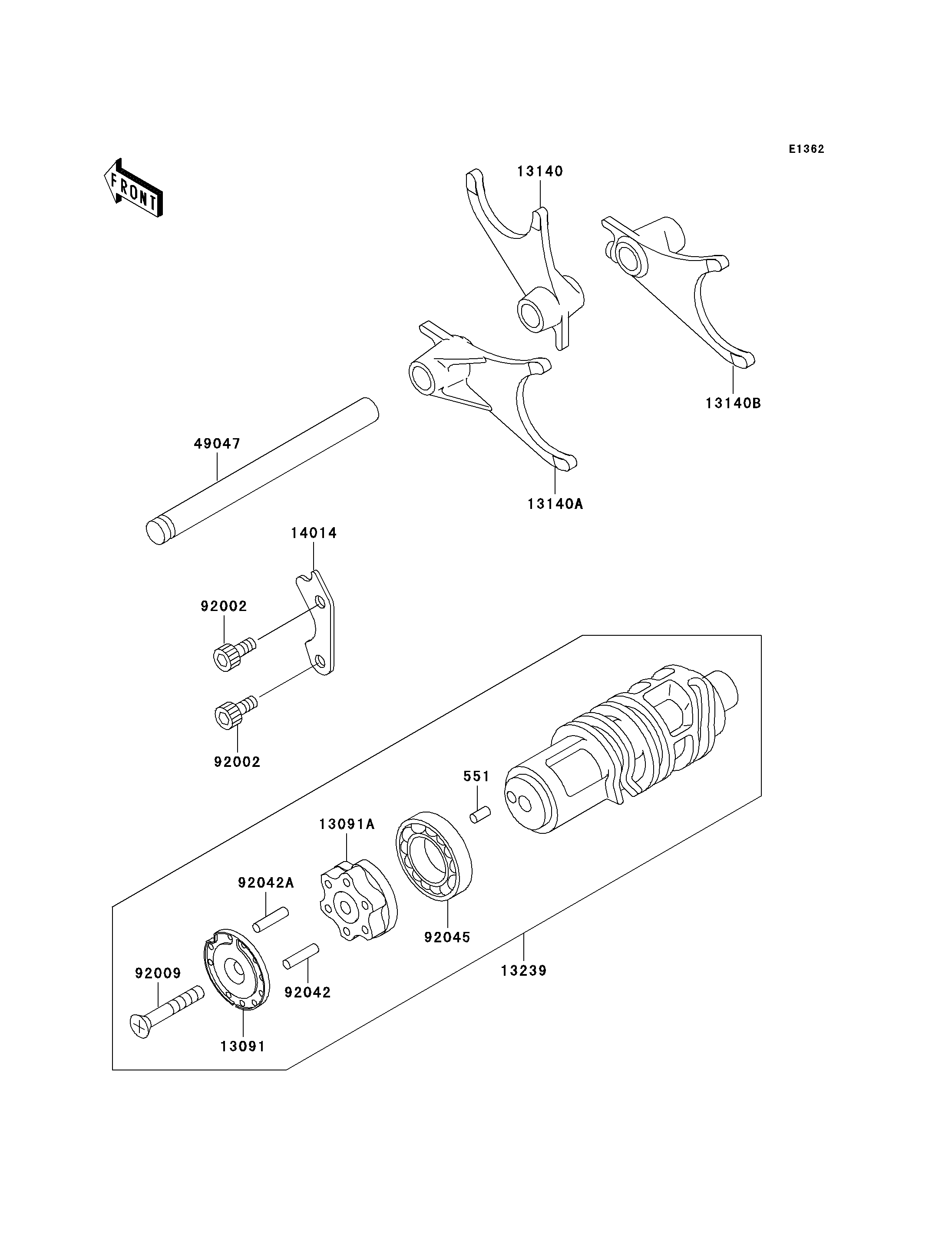

1995 Ninja® ZX-11 - Gear Change Drum/Shift Fork(s)

551
13091
13091A
13140
13140A
13140B
13239
14014
49047
92002
92002
92009
92042
92042A
92045
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-DOWEL,4X8 551 551A0408 1
HOLDER,NEUTRAL 13091 13091-1334 1
HOLDER,CHANGE DRUM 13091A 13091-1834 1
FORK-SHIFT 13140 13140-1196 1
FORK-SHIFT 13140A 13140-1197 1
FORK-SHIFT 13140B 13140-1198 1
DRUM-ASSY-CHANGE 13239 13239-1184 1
PLATE-POSITION,CHANGE DRUM 14014 14014-1059 1
ROD-SHIFT 49047 49047-1055 1
BOLT,SOCKET,6X16 92002 92002-1778 2
SCREW,6X45 92009 92009-1599 1
PIN,DOWEL,4X15.8 92042 92042-014 5
PIN,DOWEL,4X17.8 92042A 92042-020 1
BEARING-BALL,16005(NTN) 92045 92045-1045 1
