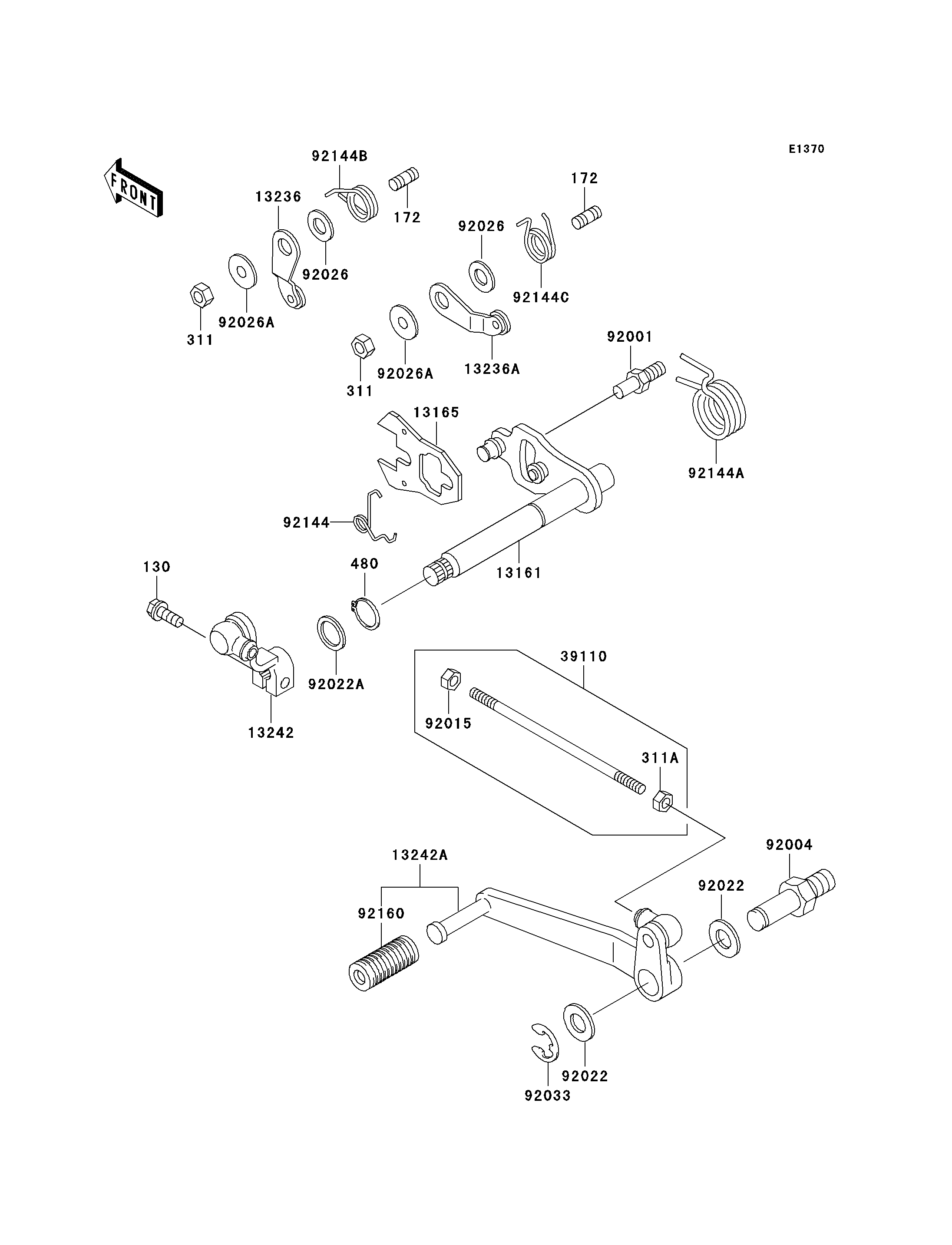

1995 Ninja® ZX™-11 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
172
172
311
311
311A
480
13161
13165
13236
13236A
13242
13242A
39110
92001
92004
92015
92022
92022
92022A
92026
92026
92026A
92026A
92033
92144
92144A
92144B
92144C
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
BOLT-STUD,6X14 172 172G0614 2
NUT-HEX,6MM 311 311G0600 2
NUT-HEX 311A 311J0600 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1155 1
PAWL 13165 13165-1120 1
LEVER-COMP,GEAR POSITION 13236 13236-1103 1
LEVER-COMP,GEAR POSITION 13236A 13236-1216 1
LEVER-ASSY-CHANGE,BOSS 13242 13242-1242 1
LEVER-ASSY-CHANGE,PEDAL 13242A 13242-1283 1
ROD-ASSY-TIE 39110 39110-1106 1
BOLT,RETURN SPRING 92001 92001-1455 1
STUD,CHANGE PEDAL,PIVOT 92004 92004-1164 1
NUT 92015 92015-1178 1
WASHER,12.5X22X1.2 92022 92022-1593 2
WASHER,13.3X18X1 92022A 92022-1772 1
SPACER,6.3X12X1.0 92026 92026-094 2
SPACER 92026A 92026-1217 2
RING-SNAP,TYPE-E,10MM 92033 92033-1178 1
SPRING 92144 92144-1029 1
SPRING,CHANGE PEDAL RETURN 92144A 92144-1074 1
SPRING 92144B 92144-1856 1
SPRING,GEAR POSITION 92144C 92144-1857 1
DAMPER,CHANGE PEDAL 92160 92160-1036 1
