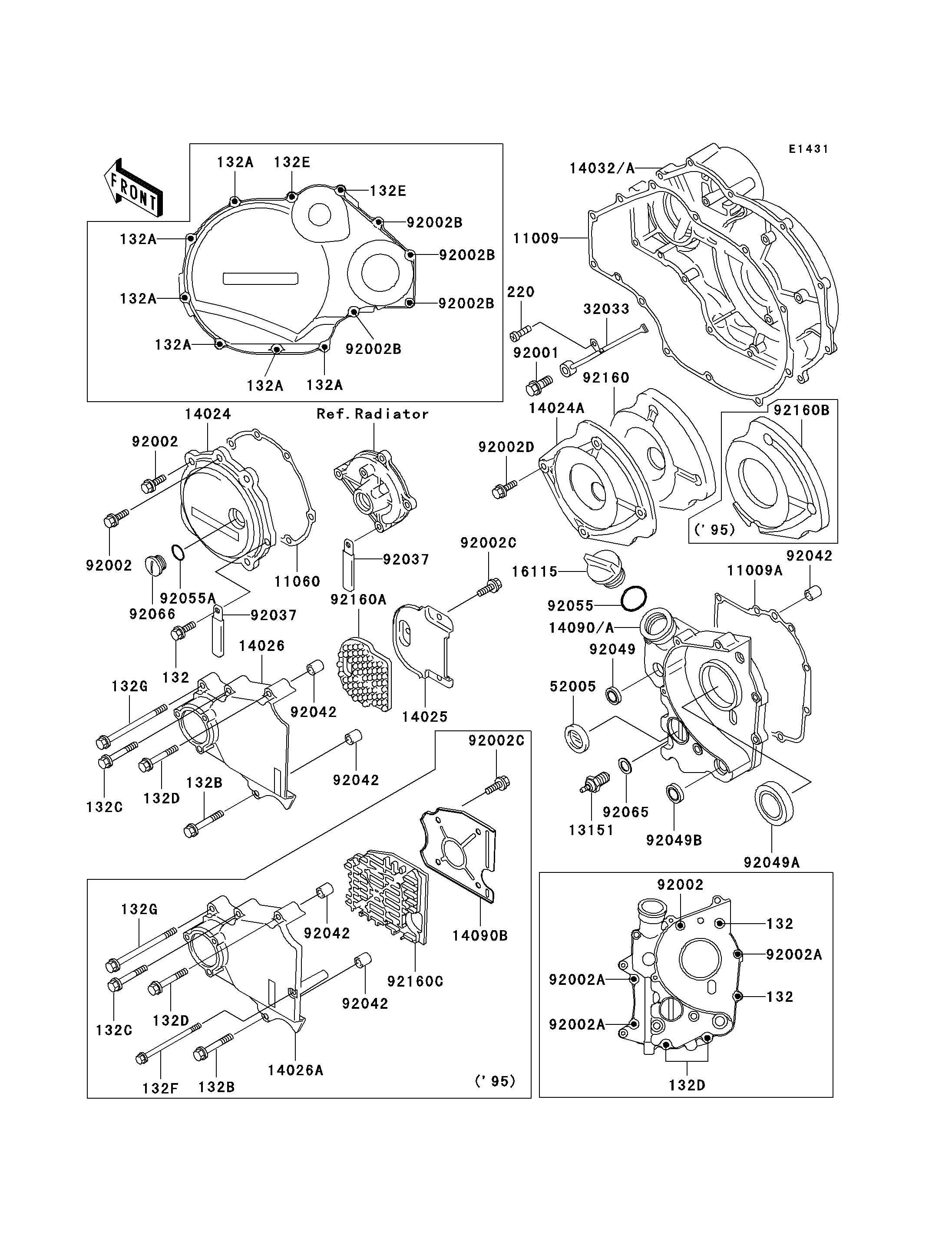

1995 Ninja® ZX™-11 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132
132
132
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132A
132B
132B
132B
132B
132C
132C
132C
132C
11009
11009
11009A
11009A
11060
11060
13151
13151
14024
14024
14024A
14024A
14026A
14026A
14032A
14032A
14090A
14090A
14090B
14090B
16115
16115
32033
32033
52005
52005
92001
92001
92002
92002
92002
92002
92002
92002
92002A
92002A
92002A
92002A
92002A
92002A
92002B
92002B
92002B
92002B
92002B
92002B
92002B
92002B
92002C
92002C
92002C
92002C
92002D
92002D
92037
92037
92037
92037
92042
92042
92042
92042
92042
92042
92042
92042
92042
92042
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92055A
92055A
92065
92065
92066
92066
92160B
92160B
92160C
92160C
132D
132D
132D
132D
132D
132D
132E
132E
132E
132E
132F
132F
132G
132G
132G
132G
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0620 7
BOLT-FLANGED-SMALL 132A 132J0625 6
BOLT-FLANGED-SMALL 132B 132J0635 1
BOLT-FLANGED-SMALL,6X40 132C 132J0640 1
GASKET,CLUTCH COVER 11009 11009-1860 1
GASKET,TRANSMISSION COVER 11009A 11009-1982 1
GASKET,PULSING COVER 11060 11060-1695 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
COVER,LH 14024 14024-1721 1
COVER,SOUND ARRESTER 14024A 14024-1925 1
COVER-CHAIN 14026A 14026-1213 1
COVER-CLUTCH 14032A 14032-1401 1
COVER,TRANSMISSION 14090A 14090-1526 1
COVER,SOUND ARRESTER 14090B 14090-1527 1
CAP-OIL FILLER 16115 16115-1009 1
PIPE,CLUTCH COVER 32033 32033-1204 1
GAUGE,OIL LEVEL 52005 52005-1057 1
BOLT,BANJO,8X20 92001 92001-1855 1
BOLT,6X20 92002 92002-1343 3
BOLT,6X25 92002A 92002-1344 3
BOLT,6X40 92002B 92002-1345 4
BOLT,6X10 92002C 92002-1449 4
BOLT,6X10 92002D 92002-1541 4
CLAMP,WIRING HARNESS 92037 92037-1069 2
PIN,DOWEL,6.3X8X14 92042 92042-007 4
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,AE2343F0 92049A 92049-1070 1
SEAL-OIL,TB13205 92049B 92049-1186 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O 92055A 92055-1146 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,COVER 92066 92066-1163 1
DAMPER,SOUND ARRESTER 92160B 92160-1567 1
DAMPER,SOUND ARRESTER 92160C 92160-1568 1
BOLT-FLANGED-SMALL 132D 132J0650 3
BOLT-FLANGED-SMALL,6X55 132E 132J0655 2
BOLT-FLANGED-SMALL 132F 132J0665 1
BOLT-FLANGED-SMALL 132G 132J0680 1
SCREW-PAN-CROS 220 220B0510 1
