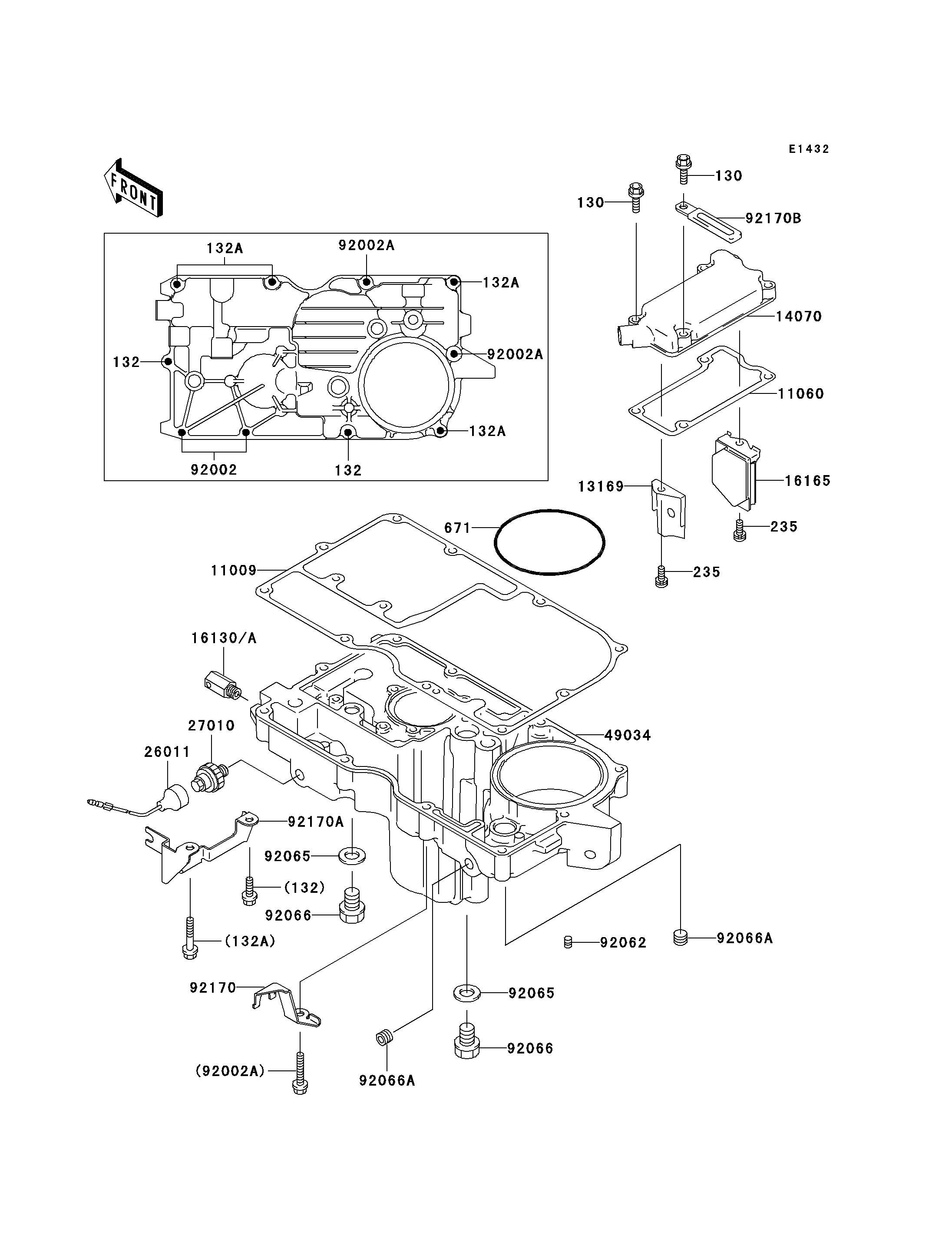

1995 Ninja® ZX™-11 - Breather Cover/Oil Pan

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132A
132A
132A
235
235
671
11009
11060
13169
14070
16130A
16165
26011
27010
49034
92002
92002A
92002A
92062
92065
92065
92066
92066
92066A
92066A
92170
92170A
92170B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130P0625 4
BOLT-FLANGED-SMALL 132 132J0625 2
BOLT-FLANGED-SMALL,6X40 132A 132J0640 4
SCREW-PAN-WP-CROS 235 235B0610 2
O RING,90MM 671 671B2590 1
GASKET,OIL PAN 11009 11009-1981 1
GASKET,BREATHER BODY 11060 11060-1339 1
PLATE,BREATHER 13169 13169-1967 1
BODY-BREATHER 14070 14070-1072 1
VALVE-ASSY-RELIEF 16130A 16130-1058 1
SEPARATOR,OIL 16165 16165-1053 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PAN-OIL 49034 49034-1118 1
BOLT,6X25 92002 92002-1344 2
BOLT,6X40 92002A 92002-1345 2
NOZZLE,6X8,BLACK 92062 92062-1079 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 2
PLUG,OIL DRAIN,12X15 92066 92066-1174 2
PLUG,OIL LINE,1/8X7 92066A 92066-1342 2
CLAMP,OIL TUBE 92170 92170-1188 1
CLAMP,OIL TUBE 92170A 92170-1189 1
CLAMP 92170B 92170-1514 1
