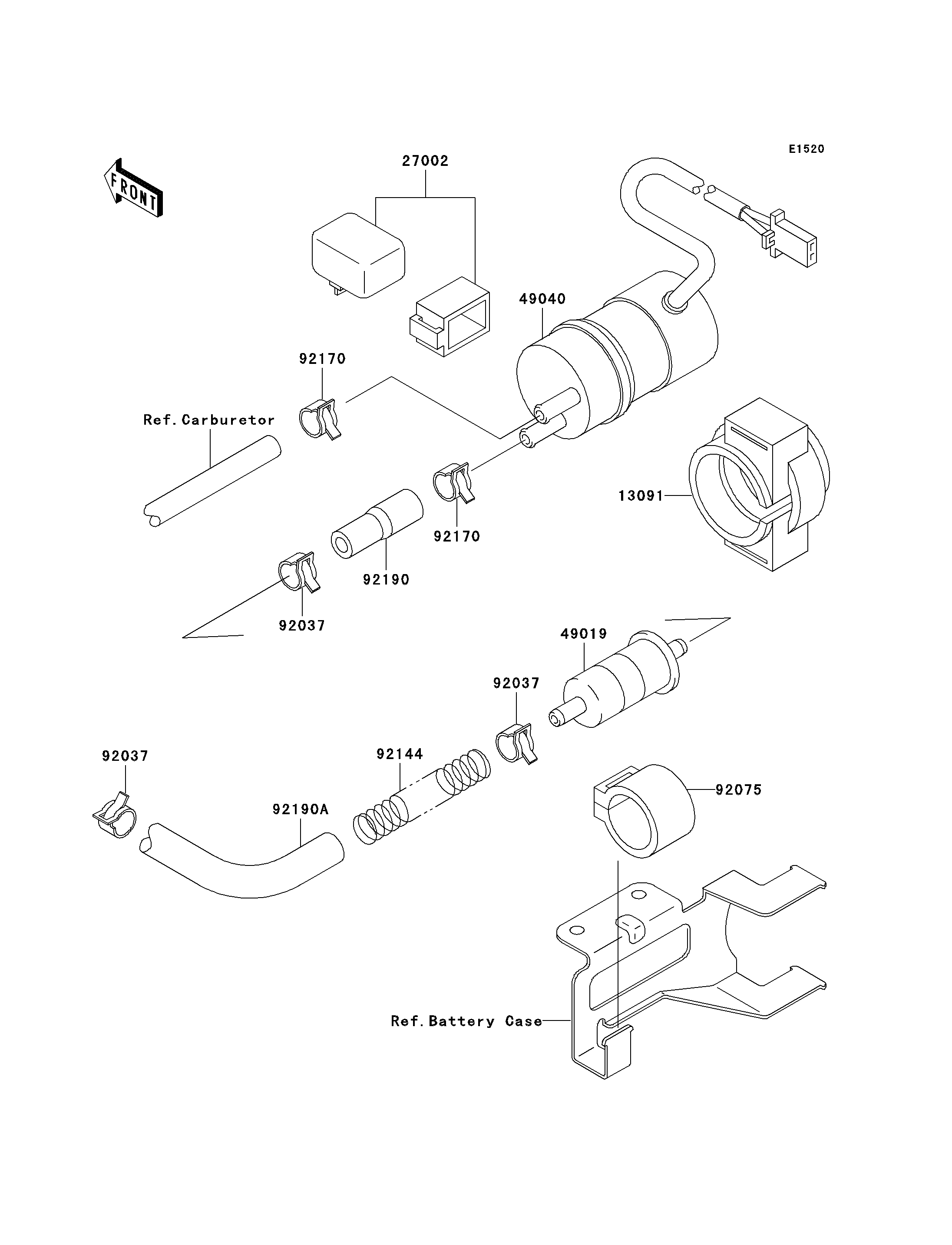

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13091 13091-1512 1
RELAY-ASSY 27002 27002-1065 1
FILTER-FUEL 49019 49019-1055 1
PUMP-FUEL 49040 49040-1061 1
CLAMP 92037 92037-1181 3
DAMPER,FUEL FILTER 92075 92075-1853 1
SPRING,TUBE 92144 92144-1821 1
CLAMP 92170 92170-1118 2
TUBE 92190 92190-1153 1
TUBE,FUEL TAP-FUEL FILTER 92190A 92190-1394 1
