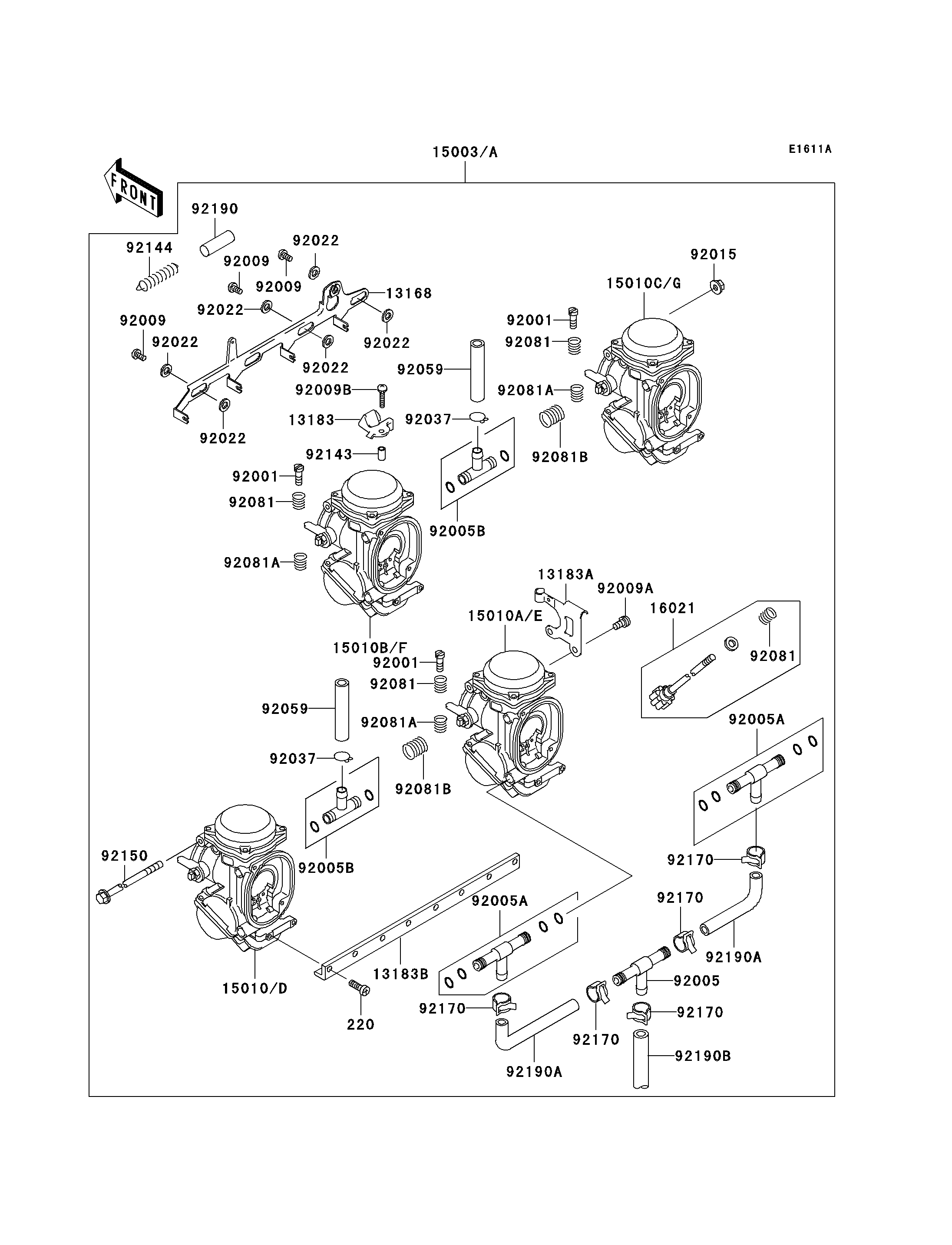

1995 Ninja® ZX™-11 - Carburetor(ZX1100-D2/D3)
13168
13168
13183
13183
13183A
13183A
13183B
13183B
16021
16021
92001
92001
92001
92001
92001
92001
92005
92005
92005A
92005A
92005A
92005A
92005B
92005B
92005B
92005B
92009
92009
92009
92009
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92022
92037
92037
92037
92037
92059
92059
92059
92059
92081
92081
92081
92081
92081
92081
92081
92081
92081A
92081A
92081A
92081A
92081A
92081A
92081B
92081B
92081B
92081B
92143
92143
92144
92144
220
220
92150
92150
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92190
92190
92190A
92190A
92190A
92190A
92190B
92190B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,STARTER | 13168 | 13168-1405 | 1 | ||
| PLATE,STARTER CABLE | 13183 | 13183-1592 | 1 | ||
| PLATE,THROTTLE CABLE | 13183A | 13183-1606 | 1 | ||
| PLATE,CARBURETOR,LWR | 13183B | 13183-1727 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1190 | 1 | ||
| BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
| FITTING,T-TYPE | 92005 | 92005-1119 | 1 | ||
| FITTING | 92005A | 92005-1294 | 2 | ||
| FITTING | 92005B | 92005-1306 | 2 | ||
| SCREW | 92009 | 92009-1262 | 3 | ||
| SCREW,5X10 | 92009A | 92009-1365 | 1 | ||
| SCREW,4X18 | 92009B | 92009-1632 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
| WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
| CLAMP,TUBE | 92037 | 92037-1531 | 2 | ||
| TUBE,7X11X45 | 92059 | 92059-1738 | 2 | ||
| SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 4 | ||
| SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 3 | ||
| SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 2 | ||
| COLLAR,4X5.2X9.6 | 92143 | 92143-1265 | 1 | ||
| SPRING,STARTER LEVER | 92144 | 92144-1518 | 1 | ||
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 | ||
| BOLT,5X305 | 92150 | 92150-1211 | 1 | ||
| CLAMP,TUBE | 92170 | 92170-1051 | 5 | ||
| TUBE,STARTER SPRING | 92190 | 92190-1157 | 1 | ||
| TUBE,L=110 | 92190A | 92190-1165 | 2 | ||
| TUBE,7.3X12.5X89 | 92190B | 92190-1466 | 1 | ||
| CARBURETOR-ASSY | 15003 | 15003-1178 | 1 | CN | |
| CARBURETOR-ASSY | 15003A | 15003-1182 | 1 | CAUS | |
| CARBURETOR,LH.OUTSIDE | 15010 | 15010-1840 | 1 | CAUS | |
| CARBURETOR,LH.INSIDE | 15010A | 15010-1841 | 1 | CAUS | |
| CARBURETOR,RH.INSIDE | 15010B | 15010-1842 | 1 | CAUS | |
| CARBURETOR,RH.OUTSIDE | 15010C | 15010-1843 | 1 | CAUS | |
| CARBURETOR,LH,OUTSIDE | 15010D | 15010-1880 | 1 | CN | |
| CARBURETOR,LH,INSIDE | 15010E | 15010-1881 | 1 | CN | |
| CARBURETOR,RH,INSIDE | 15010F | 15010-1882 | 1 | CN | |
| CARBURETOR,RH,OUTSIDE | 15010G | 15010-1883 | 1 | CN |
